Suzuki XL7 (2007) – fuse box diagram

Suzuki XL7 (2007) – fuse box diagram

Year of production: 2007

Instrument Panel Fuse Block

The instrument panel fuse block is located on the passenger’s side of the center console, to the left of the glove box near the floor.

Suzuki XL7 - fuse box diagram - instrument panel

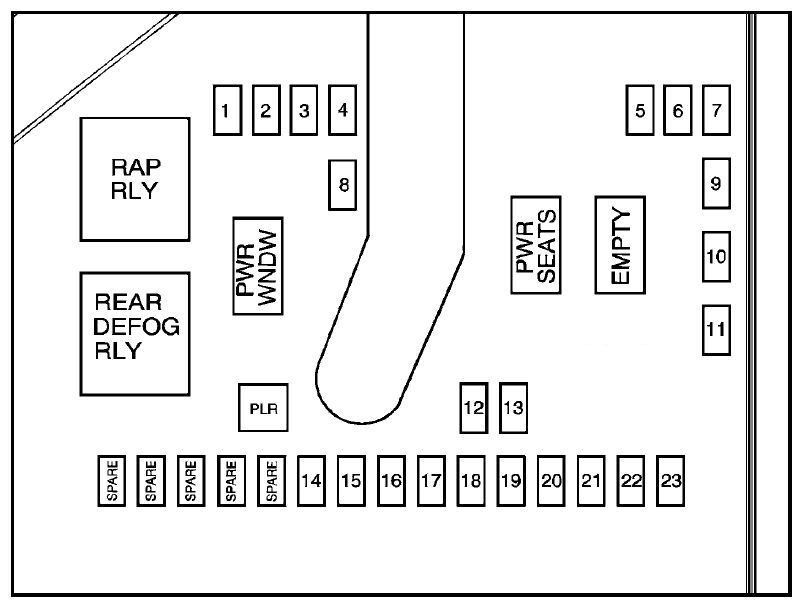

Suzuki XL7 – fuse box diagram – instrument panel
Fuses A Circuit Protected
1 20 Sunroof
2 10 Rear Seat Entertainment
3 20 Rear Wiper
4 15 Liftgate
5 Airbags
6 Heated Seats
7 Driver’s Side Turn Signal
8 Door Locks
9 Automatic Occupant Sensing Module
10 Power Mirrors
11 Passenger’s Side Turn Signal
12 Amplifier
13 Steering Wheel Illumination
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
SPARE Spare
13 2 STR/WHL/ILLUM
14 10 Infotainment
15 10 Climate Control System, Remote Function Actuator
16 10 Canister Vent
17 Radio
18 Cluster
19 Ignition Switch
20 Body Control Module
21
22 Center High-Mounted Stoplamp, Dimmer
23 Interior Lights



Relays
Circuit Protected
RAP PLY Retained Accessory Power Relay
REAR DEFOG RLY Rear Defogger Relay



Circuit Breaker
Circuit Protected
PWR WNDW Power Windows
PWR SEATS Power Seats
EMPTY Empty



Misc.
Circuit Protected
PLR Fuse Puller

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the engine compartment.

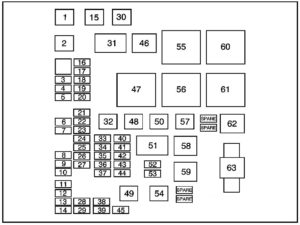

Suzuki XL7 - fuse box diagram - engine compartment

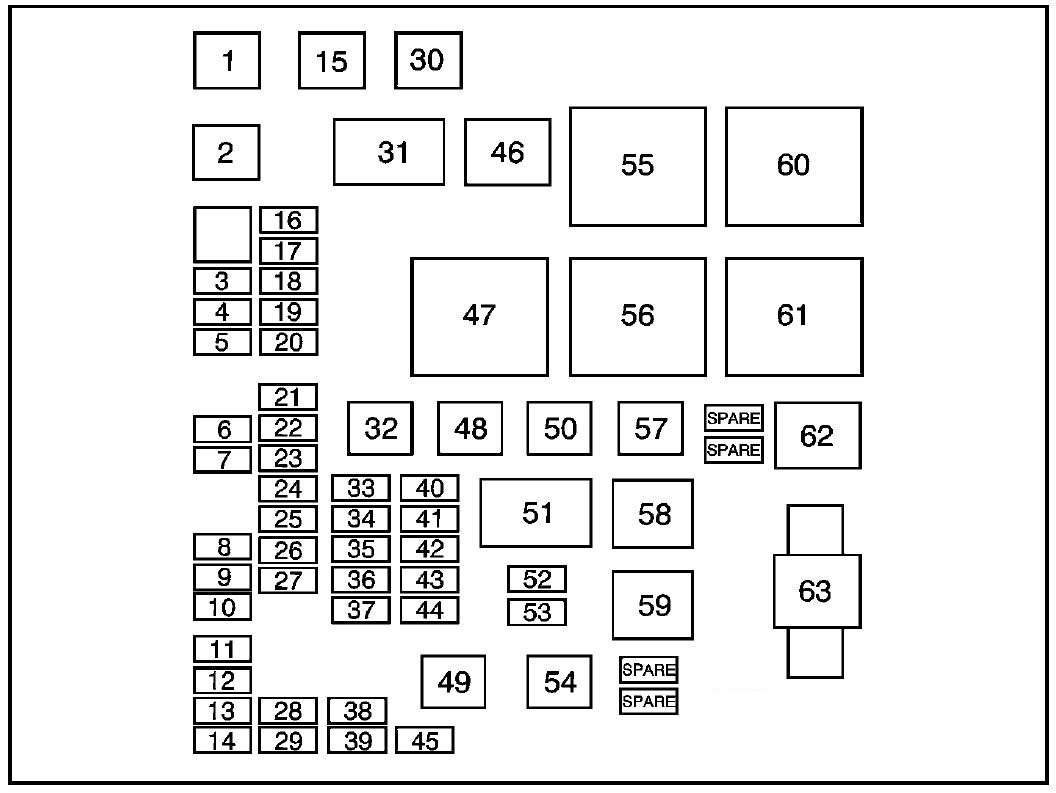

Suzuki XL7 – fuse box diagram – engine compartment
Fuses
Circuit Protected
1 Cooling Fan 2
2 Cooling Fan 1
3 Auxiliary Power
4 Rear Climate Control
5 Spare
6 Spare
7 Anti-lock Brake System
8 Air Conditioning Clutch
9 Driver’s Side Low-Beam
10 Daytime Running Lamp 2
11 Passenger’s Side High-Beam
12 Passenger’s Side Park Lamp
13 Horn
14 Driver’s Side Park Lamp
15 Starter
16 Electronic Throttle Control, Engine Control Module
17 Emission Device 1
18 Even Coils, Injectors
19 Odd Coils, Injectors
20 Emission Device 2
21 Spare
22 Powertrain Control Module, Ignition
23 Transmission
24 Mass Airflow Sensor
25 Airbag Display
26 Spare
27 Stoplamp
28 Passenger’s Side Low-Beam
29 Driver’s Side High-Beam
30 Battery Main 3
32 Spare
33 Engine Control Module, Battery
34 Transmission Control Module, Battery
35 Trailer Park Lamp
36 Front Wiper
37 Driver’s Side Trailer Stoplamp, Turn Signal
38 Spare
39 Fuel Pump
40 Rear Accessory Power Outlet
41 All-Wheel Drive
42 Regulated Voltage Control
43 Passenger’s Side Trailer Stoplamp, Turn Signal
44 Spare
45 Front, Rear Washer
48 Rear Defogger
49 Anti-lock Brake System Motor
50 Battery Main 2
52 Daytime Running Lamps
53 Fog Lamps
54 Climate Control System Blower
57 Battery Main 1
63 Electric Power Steering

Relays
Circuit Protected
31 Ignition Main
46 Air Conditioning Compressor Clutch
47 Powertrain
51 Spare
55 Crank
56 Fan 1
58 Passenger’s Side Trailer Stoplamp, Turn Signal
59 Driver’s Side Trailer Stoplamp, Turn Signal
60 Fan 3
61 Fan 2
62 Fuel Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
