TATA Aria – fuse box diagram
Year of production:

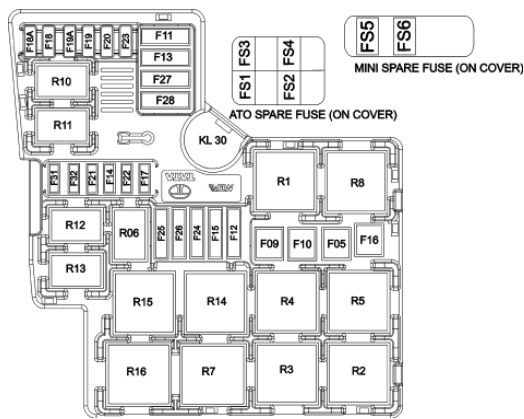

Engine compartment fuse and relay box
TATA Aria – fuse box – engine compartment
Fuse
Ampere rating [A]
Power consumer
R1
Accessories
R2
Cooling Fan II
R3
Cooling Fan I
R4
Cooling Fan III
R5
Heater Rear Screen
R6
Aircon
R7
EMS Relay
R8
Starter
R10
Dip Beam
R11
High Beam
R12
Horn
R13
Front Wiper
R14
Glow Plug I
R15
Front Fog Lamp
R16
Glow Plug II
F5
60
Accessories
F9
40
Cooling Fan II
F10
30
Heater Rear Screen
F11
20
TOD
F12
40
HVAC
F13
25
ABS/ESP
F14
15
Aircon
F15
30
EMS
F16
40
Starter
F17
—
—
F18
10
Dip Beam RH
F18A
10
Dip Beam LH
F19
10
Main Beam RH
F19A
10
Main Beam LH
F20
—
—
F21
10
Horn
F22
—
—
F23
15
Rear Wiper
F24
40
Glow Plug I
F25
15
Front Fog Lamp
F26
40
Glow Plug II
F27
15
Tow Bar
F28
30
HAS Batt
F31
10
AMPS
F32
15
At Batt
FS1
20
SPARE
FS2
40
SPARE
FS3
25
SPARE
FS4
30
SPARE
FS5
15
SPARE
FS6
10
SPARE

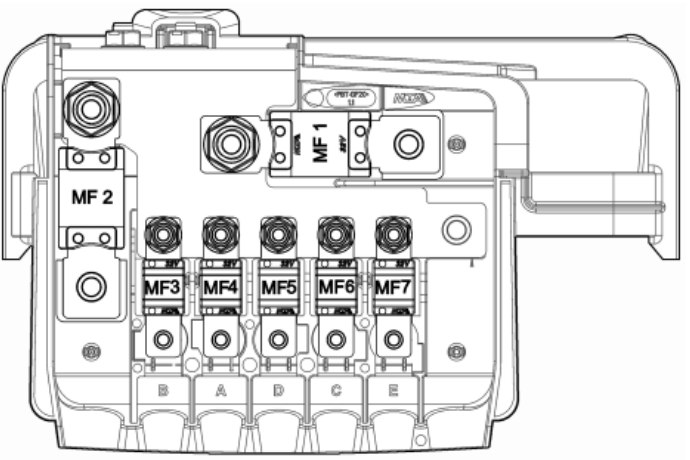

Battery mounted fuse and relay box
TATA Aria – fuse box – battery mounted
Number
Ampere rating [A]
Circuit
MF1
CAL 5
STARTER MOTOR
MF2
150
ALTERNATOR
MF3
60
BATTERY COCKPIT
MF4
40
ABS/ESP
MF5
50
IGNITION
MF6
—
—
MF7
30
COOLING FAN

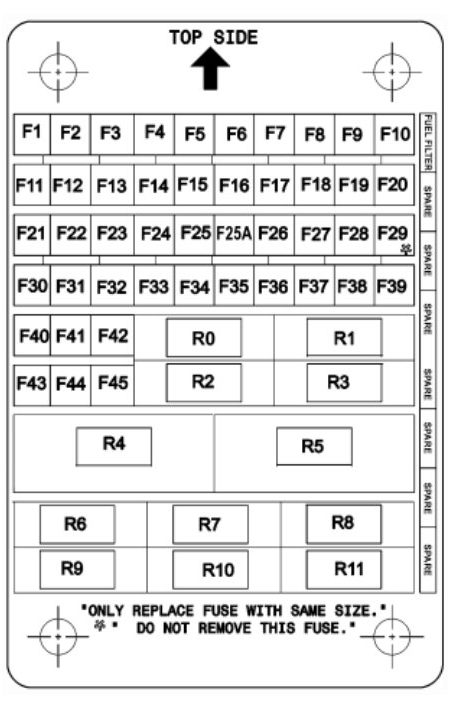

Cabin wiring harness fuse & relay box under the dashboard on driver side (right side)
TATA Aria – fuse box – cabin wiring harness fuse and relay box under dashboard
Number
Ampere rating [A]
Circuit
F1
25
W/W FR RH BATT
F2
10
USB,TFT & BT BATT
F3
5
MASTER LIGHT SW BATT
F4
5
HAVC BATT.
F5
20
INFOTAINMENT BATT
F6
25
W/W RR LH BATT
F7
25
W/W RR RH BATT
F8
10
INTERIOR LAMP
F9
10
IMMO & KEY IN BATT.
F10
10
INSTRU CLUS BATT
F11
10
PARK LH
F12
10
PARK RH
F13
10
MIRROR HEATER
F14
20
HEATED REAR SCREEN
F15
5
EMS DIAGNO INERTIA SW BATT.
F16
20
CENTRAL DOOR LOCK BATT.
F17
10
AMPS BATT
F18
30
BCM 1 BATT
F19
10
MIRROR BATT.
F20
25
W/W FR LH BATT
F21
5
STARTER RELAY COIL
F22
5
BCM IGN
F23
5
IGN RELAY COIL
F24
5
W/W IGN.
F25
5
IMMO IGN
F25A
5
AT IGN
F26
10
EMS IGN.
F27
10
ABS/ESP BK PEDAL SW IGN.
F28
10
INSTRUMENT CLUSTER IGN
F29
5
SRS IGN.
F30
15
STOP/REV LAMP
F31
10
TOD FR AXLE IGN.
F32
5
PDC,INT WIPE
F33
10
WATER SEDIMENT VEH SPEED IGN
F34
10
FR HVAC IGN.
F35
25
FR,RR WIPER IGN.
F36
5
REAR BLOWER SW IGN.
F37
5
MIRROR SET / FOLD
F38
5
INFOTAINMENT IGN.
F39
10
REAR FOG LAMP IGN.
F40
5/15
AMMS ACC / TOW BAR IGN.
F41
15
POWER SOCKET III ACC
F42
15
CIGAR LIGHTER I, II
F43
30
REAR BLOWER ACC
F44
5
HRS COIL ACC
F45
5
ACC RELAY COI
R0
—
AT REV. LAMP RELAY
R1
—
MIRROR SET RELAY
R2
—
MIRROR FOLD RELAY
R3
—
POWER MIRROR FOLD RELAY
R4
—
IGN RELAY
R5
—
6-WAY DIODE MODULE
R6
—
INTERIOR LAMP RELAY
R7
—
CENTRAL DOOR LOCKING RELAY-3
R8
—
CENTRAL DOOR LOCKING RELAY-1
R9
—
REAR FOG LAMP RELAY
R10
—
PARK LAMP RELAY
R11
—
CENTRL DOOR LOCKING RELAY-2
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
