Chevrolet Venture (1999) – fuse box diagram

Year of production: 1999

Instrument Panel Fuse Block

The instrument panel fuse block is to the right of the glove box.

Chevrolet Venture - wiring diagram - fuse box -  instrument panel
Chevrolet Venture – wiring diagram – fuse box –
instrument panel
Circuit breaker Usage
HEADLAMP DRL Control Module, Headlamp and Instrument Panel Dimmer Switch
PWR WDO/RR VENT Front Power Windows
PWR SEATPSD 6-Way Power Seat(s) and Rear Side Door Actuator Motor
FRT HVAC/HI BLWR Blower Motor Hi Speed Relay in Module
Fuses Usage
SWC BACKLIGHT Steering Wheel Radio Control Switches (Illumination)
ELEC PRNDL Instrument Cluster to PRNDL Indicators
PWR MIRROR Power Remote Control Mirror Switch
CRUISE Cruise Control Module, Switch and Release Switch
PWR QTR VENT Interior Lamps and Multifunction Switch (Power Vent Switch)
FRT WPR/WSHR Windshield Wiper/washer Motor and Switch
PASS KEY PASS-Key System
PWR LOCK Body Control Module (BCM)
HTD MIRROR RH T/LP N
RH TLP Not Used
RR FOG LP Not Used
CIGAR/DLC Cigarette Lighter and Data Link Connector (DLC)
T/SIG Turn Signal Switch
RR HVAC Rear Blower Motor, Rear Heater-NC Control, and Temperature Door Actuator (Rear)
SWC ACCY Steering Wheel Radio Control Switches
HAZARD Turn Signal Switch
RR PWR SCKT Rear Electric Accessory Plug Housing
DRL Daytime Running Lamps (DRL) Control Module
LH T/LP Not Used
RR DEFOG Rear Window Defogger Relay, Heated Mirrors
FRT PWR SCKT Front Electric Accessory Plug Housing
SIR Inflatable Restraint Control Module
FRT HVAC LOWMED BLWR Heater-A/C Control
MALL/RADIO/DIC BCM, Driver Information Display, Rear Seat Audio, ELC Sensor
and Relay
STOP LAMP Stoplamp Switch
ABS MOD BATT Electronic Brake Control ModuleElectronic Brake Traction Control Module (EBCM/EBTCM)
CAN VENT SOL Evaporative Emissions (EVAP) Canister Vent Solonoid Valve
ELC Electronic Level Control (ELC) Air Compressor and ELC Relay, Trailer Harness
CTSY LAMP BCM
IGN 1 BCM, Electronic Brake Control Indicator Lamp Driver Module, Instrument Panel Cluster, Rear Side Door Actuator Control Module, Rear Window Wiper/Washer and Multifunction
Switch (Fog Lamp Switch/Traction Control Switch) and Stoplamp/Torque Converter Clutch (TCC) Switch
RR WPR WSHR Rear Window Wiper Motor, Rear Window Wiper/Washer and Multifunction Switch (Rear Window Wiper/Washer Switch)
LH HEADLP LOW Not Used
LH HEADLP HIGH Not Used
ABS/TCS IGN Electronic Brake Control Module/Electronic Brake Traction Control Module (EBCM/EBTCM)
ABS SOL LH and RH Front Brake Solenoid Valve
HVAC/DRL Air Inlet Actuator, DRL Control Module, Heater-A/C Control, Temperature Door Actuator (Front) and Rear Window Defogger Relay
BCM PRGRM Body Control Module (BCM)
RH HEADLP LOW Not Used
RH HEADLP HIGH Not Used
PCM IGN MAIN Relay and PCM

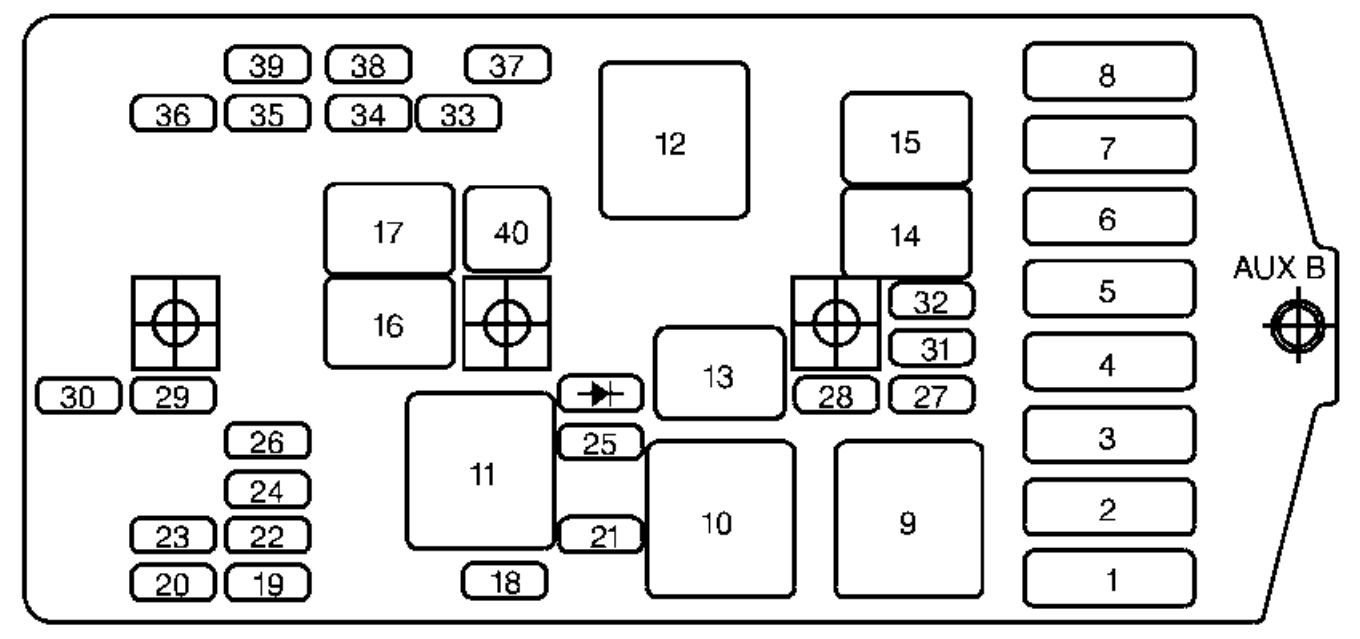

Underhood Fuse and Relay Center

This fuse and relay center is located in the engine compartment, in front of the windshield washer fluid reservoir. The fuses marked spare are available if a replacement fuse is needed.

Chevrolet Venture - wiring diagram - fuse box -  engine compartment
Chevrolet Venture – wiring diagram – fuse box – engine compartment
Maxi fuses Usage
1 COOL FAN 2 Coolant Fans
2 Not Used
3 HEADLAMPS Circuit Breakers: FRT HVAC HI BLWR, and HEADLAMP Fuses (Instrument Panel): HAZARD and STOPLAMP
4 BATT MAIN 2 Circuit Breaker: PWR SEATRSD. Fuses (UP): ELC and RR DEFOG
5 IGN MAIN 1 Ignition Switch to Fuses (Instrument Panel): ABS/TCS IGN, CRUISE, DRL, ELEC PRNDL, IGN 1, PSD, SIR, T/SIG and PCM [IGN MAIN Relay (Underhood Electrical Center Fuses: A/C CLU, ELEK IGN, IGN 1-U/H, INJ, TCC)]
6 COOL FAN 1 Coolant Fans
7 BATT MAIN 1 Fuses (UP): ABS MDL BATT, CIGARDLC, CTSY LAMP, FRT PWR SCKT, PWR LOCK, PWR MIRROR and RR PWR SCKT
8 IGN MAIN 2 Ignition Switch to Fuses (I/P): BCM PRGRM, FRT HVAC LOW/MED BLWR, FRT WPR/WSHR, HVAC/DRL, MALL/RADIO/DIC, PWR QRT VENT, RR HVAC, RR WPR/WSHR, SWC ACCY and PWR WDO Circuit Breaker
Mini Relays Usage
9 COOL FAN RH FAN 1, LH FAN 2
10 COOL FAN 2 LH FAN 2
11 IGN MAIN FUSES: A/C CLU, IGN l-U/H, INS, ELEK IGN, TCC
12 COOL FAN 1 RH FAN 1, LH FAN 2
Micro Relays Usage
13 A/C CLU A/C Clutch
14 FUEL PUMP Fuel Pump
15 F/FMP SPD CONT Not Used
16 HORN Horn
17 FOG LAMP LH Fog Lamp, RH Fog Lamp, Fog Lamp Indicator



Micro Re Usage
18 INJ Fuel Injectors 1-6
19 SPARE Not Used
20 SPARE Not Used
21 IGN1-UH Evaporative Emissions (EVAP) Canister Purge Valve, Heated Oxygen Sensors 1 and 2, Mass Air Flow (MAF) Sensor
22 SPARE Not Used
23 SPARE Not Used
24 SPARE Not Used
25 ELEK IGN Ignition Control Module (ICM)
26 SPARE Not Used
27 B/U LAMP Transaxle Range Switch to Back-up Lamps
28 A/C CLU A/C CLU Relay to A/C Compressor Clutch Oil
29 RADIO Driver Information Display, Heater A/C Control, Radio, Rear Side Door Actuator Control Motor, Remote Control Door Lock Receiver (RCDLR), Security Indicator Lamp and Theft Deterrent Shock Sensor
30 ALT SENSE Generator
31 TCC Automatic Transaxle (Torque Converter Clutch Solenoids) Stoplamp Switch to PCM
32 FUEL PUMP Fuel Pump Relay
33 ECM SENSE Powertrain Control Module (PCM)
34 Not Used
35 FOG LP Fog Lamp Relay
36 HORN Horn Relay
37 PARK LP Daytime Running Lamps (DRL) Control Module, Headlamps and I/P Dimmer Switch Theft-Deterrent Relay to Headlamps
38 Not Used
39 Not Used
40 Mini Fuse Pulle
 WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
