Suzuki SX4 S-Cross (2014 – present) – fuse box diagram

14 June 2020 admin Suzuki, SX4 0

Suzuki SX4 S-Cross (2014 – present) – fuse box diagram

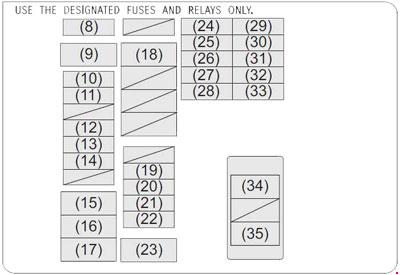

Fuse box in the engine compartment

Suzuki S4 S-Cross - fuse box diagram - engine compartment
Suzuki S4 S-Cross – fuse box diagram – engine compartment
Suzuki S4 S-Cross - fuse box diagram - engine compartment
Suzuki S4 S-Cross – fuse box diagram – engine compartment
No.
 A
 Function/component
1 60 FL7
2 80 FL6
3 100 FL5
4 80 FL4
5 100 FL3
6 100 FL2
7 120 FL1
8 7.5 Ignition-1 signal 2 (D16AA)
9 30 Radiator fan 2
10 20 Front fog light
11 7.5 Headlight 2
12 25 ABS control module
13 25 Headlight
14 30 Back up
15 40 Ignition switch
16 40 ABS motor
17 30 Starting motor
18 30 Radiator fan
19 30 FI main
20 20 Fuel pump
21 10 Air compressor
22 7.5 ECM (D13A)
23 30 Blower fan
24 10 FI 2 (D13A)
25 20 INJ DRV (D13A)
26 7.5 Starting signal
27 15 Headlight (Left)
28 15 Headlight high (Left)
29 7.5 FI 2 (D16AA)
30 20 INJ DRV (D16AA)
31 15 FI 3 (D16AA)
32 15 Headlight (Right)
33 15 Headlight high (Right)
34 50 Ignitbn switch 2
35 50 Battery

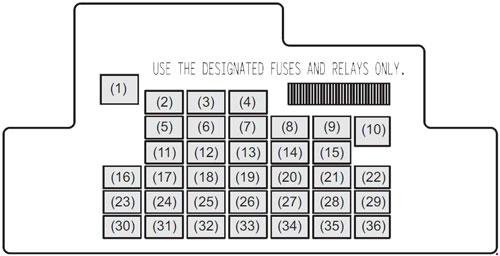

Fuses under the Dash Board

Suzuki S4 S-Cross - fuse box diagram - dashboard
Suzuki S4 S-Cross – fuse box diagram – dashboard
No.
 A
 Function/component
1 – Not used
2 20 Power window timer
3 15 Steering lock
4 20 Rear defogger
5 20 SunrooP
6 10 DRL
7 10 Heated mirror
8 7.5 Starting signal
9 15 Accessory socket 2
10 30 Power window
11 10 Hazard
12 7.5 BCM
13 15 Ignition coil
14 10 ABS control module
15 15 Accessory socket
16 10 A-STOP controller
17 15 Horn
18 10 Stop light
19 10 Air bag
20 10 Back-up light
21 15 Wiper / Washer
22 30 Front wiper
23 10 Dome light
24 15 4WD
25 7.5 RR fog lamp
26 – Not used
27 7.5 Ignition-1 signal
28 15 Radio 2
29 10 Accessory socket 3
30 15 Radio
31 10 Taillamp
32 20 D/L
33 7.5 Cruise control
34 10 Meter
35 7.5 Ignition-2 signal
36 20 Seat heater

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
