Suzuki Grand Vitara (2010) – fuse box diagram

Suzuki Grand Vitara (2010) – fuse box diagram

Year of production: 2010

Main Fuse / Primary Fuse

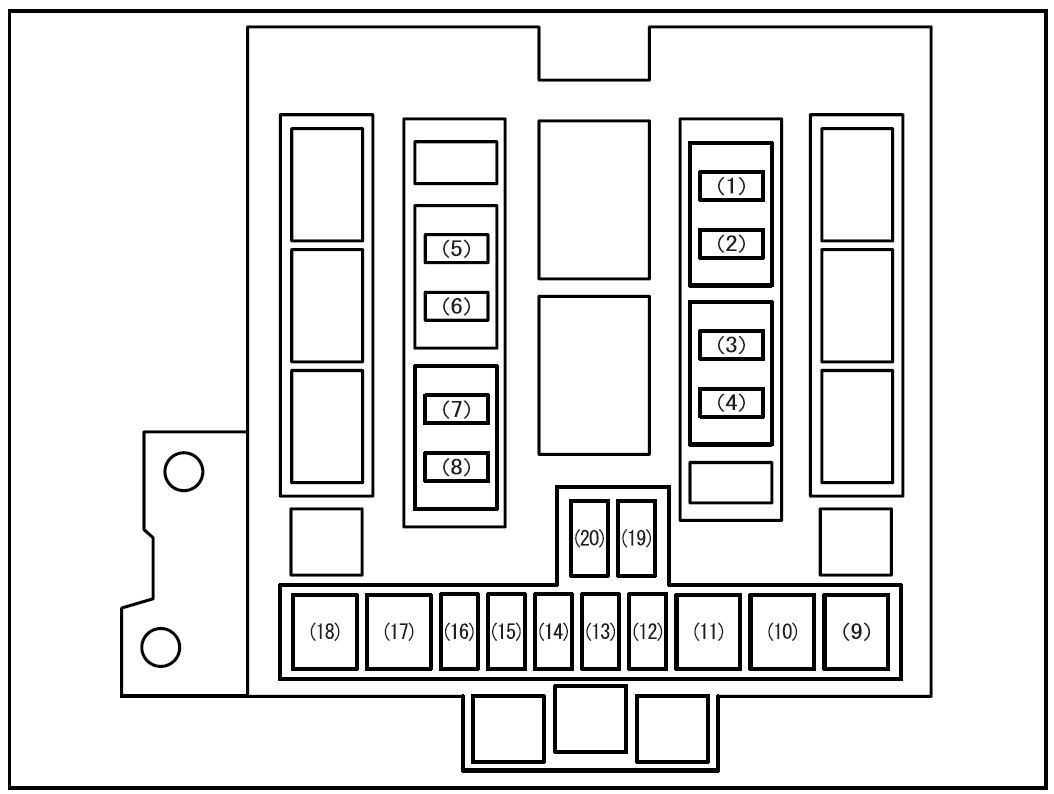

Suzuki Grand Vitara – fuse box diagram – main fuse box
Suzuki Grand Vitara – fuse box diagram – main fuse box
No.
A
Name Circuit Protected
1 15 CPRSR A/C compressor fuse
2 20 O2 HTR O2 sensor heater fuse
3 15 THR MOT Throttle motor fuse
4 20 AT Automatic transmission fuse
5 25 RR DEF Rear defogger fuse
6 15 HORN Horn fuse
7 20 FR FOG Front fog light fuse
8 20 MRR HTR Mirror heater fuse
9 40 FR BLW Front blower motor fuse
10 30 ABS 2 ABS actuator fuse
11 50 ABS 1 ABS actuator fuse
12 20 FI Main fuse
13
14 10 H/L L Head light high beam fuse, left
15 10 H/L R Head light high beam fuse, right
16 10 H/L Head light fuse
17 40 ST Starter motor fuse
18 40 IGN Ignition fuse
19 15 H/L LO L Head light low beam fuse, left
20 15 H/L LO R Head light low beam fuse, right



Primary fuse
Individual fuse
60A LAMP Head light, Accessory, Dome light, Sunroof, Hazard light, Door lock, Rear fog light, Stop lamp, Tail light
50A IGN 2 Wiper/Washer, Power window, Seat heater
40A 4WD 4WD actuator
30A RDTR 1 Radiator fan
30A RDTR 2 Radiator fan

Fuse under the Dash Board

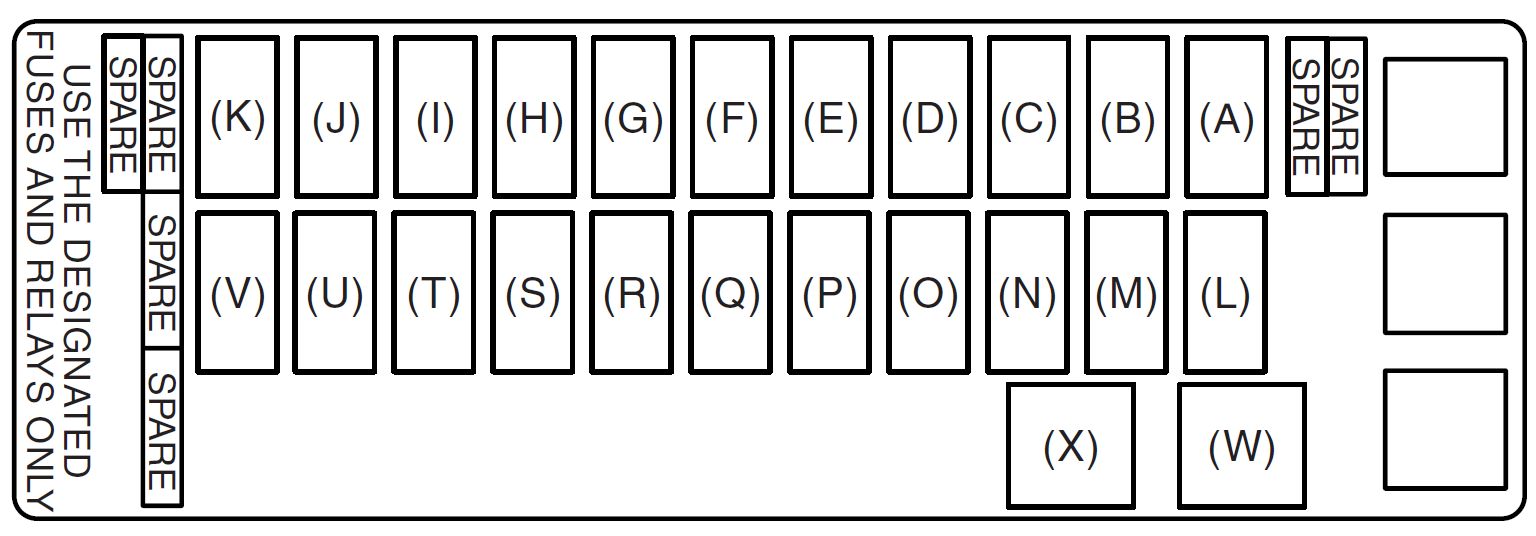

Suzuki Grand Vitara - fuse box diagram - dashboard
Suzuki Grand Vitara – fuse box diagram – dashboard
No.
A
Name Circuit Protected
A 10 DOME Dome lamp fuse
B 10 STOP Stop lamp fuse
C
D 15 ACC 3 Accessory socket fuse
E 10 CRUISE Cruise control fuse
F 15 ACC 2 Cigar or Accessory socket fuse
G 20 WIP Wiper fuse
H 15 IG2 SIG Ignition signal & Seat heater fuse
I 10 BACK Back lamp fuse
J 10 ABS/ESP ABS or ESP controller fuse
K 15 A/B Air bag fuse
L 15 RADIO Radio fuse
M 15 HAZ Hazard light fuse
N 7,5 ST SIG Starter signal fuse
O 10 ECM Engine control module fuse
P 25 S/R Sun roof motor fuse
Q 25 B/U Back up fuse
R 10 TAIL Tail light fuse
S 20 D/L Door lock actuator fuse
T 15 ACC Radio, Remote door mirror fuse
U 10 METER Meter fuse
V 20 IG COIL Ignition coil fuse
W
X 30 P/W Power window fuse

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
