Kubota Tractor U48-4 – fuse box diagram

Kubota Tractor U48-4 – fuse box diagram

Year of production:

Fuse box

Kubota Tractor U48-4 – fuse box diagram
Kubota Tractor U48-4 – fuse box diagram

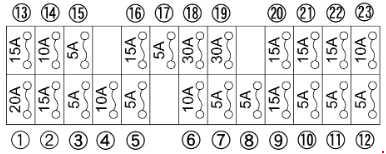

Number Ampere ratting [A] Protected circuit
1 20 Cab Light
2 15 Work Light
3 5 Meter (+B)
4 10 Horn
5 5 Room Light
6 10 Alternator
7 5 Cab Relay
8 5 Meter (AC)
9 15 ECU (AC)
10 5 Fuel Pump
11 5 Lever Lock
12 5 Starter
13 15 AI Motor
14 10 Horn SW
15 5 ECU (+B)
16 15 Beacon
17 5 A/C Controller (+B)
18 10 Engine Stop
19 30 Blower Motor
20 15 Electrical Outlet
21 15 Radio (AC)
22 15 Wiper / Washer
23 10 Compressor, A/C Controller (AC)

Slow Blow Fuse

Slow blow fuse is provided to protect the electrical circuits. If the fusible link is blown, check the electrical circuits for trouble and then replace with a new compatible slow blow fuse.

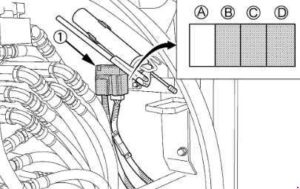

Kubota Tractor U48-4 - fuse box diagram - slow blow fuse

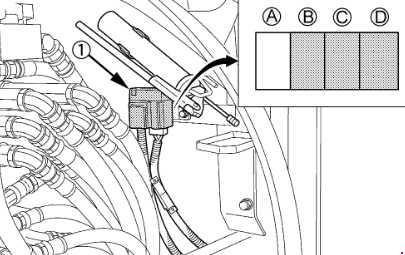

Kubota Tractor U48-4 – fuse box diagram – slow blow fuse
Number Ampere ratting [A] Protected circuit
A
B 80 Alternator
C 50 Main Power
D 50 Engine Stop Cab Relay (Blower Motor)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
