Opel Astra H (Astra Twintop) – (2010 – 2012) – fuse box diagram

Opel Astra H (Astra Twintop) – (2010 – 2012) – fuse box diagram

Year of production: 2010, 2011, 2012

Engine compartment fuse box

Insert a screwdriver into the opening as far as it will go and tilt it sideways. Open the cover upwards and remove. The fuse box has two different fuse assignments depending on the load compartment fuse box variant,

Fuse assignments in conjunction with load compartment fuse box version A

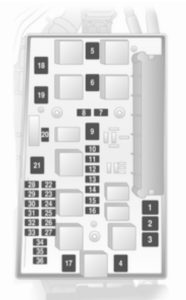

Opel Astra H (Astra Twintop)  - fuse box -engine compartment
Opel Astra H (Astra Twintop)  – fuse box -engine compartment
Number Circuit
1 ABS
2 ABS
3 3 Interior fan climate control system
4 Interior fan, heating, air conditioning system
5 Radiator fan
6 Radiator fan
7 Central locking system
8 Windscreen washer system, tailgate
9 Heated rear window, heated exterior mirror
10 Diagnostics plug
11 Instruments
12 Mobile telephone, Infotainment system, display
13 Courtesy light
14 Windscreen wiper
15 Windscreen wiper
16 Horn, ABS, brake light switch, air conditioning system
17 Diesel fuel filter or air conditioning system
18 Starter
19
20 Horn
21 Engine electronics
22 Engine electronics
23 Headlight range adjustment
24 Fuel pump
25
26 Engine electronics
27 Heating, air conditioning system
28
29 Power steering
30 Engine electronics
31 Rear window wiper
32 Brake light switch
33 Headlight range adjustment, light switch, clutch switch, instrument, driver’s door module
34 Control unit, steering column module
35 Infotainment system
36 Cigarette lighter, front power outlet

Fuse assignments in conjunction with load compartment fuse box version B

Number Circuiy
1 ABS
2 ABS
3 Interior fan electronic climate control
4 Interior fan heating and air conditioning system
5 Radiator fan
6 Radiator fan
7 Windscreen washer system
8 Horn
9 Headlight washer system
10
11
12
13 Fog light
14 Windscreen wiper
15 Windscreen wiper
16 Control module electronics, Open&Start system, ABS, brake light switch, TwinTop
17 Diesel fuel filter heating
18 Starter
19 Transmission electronics
20 Air conditioning system
21 Engine electronics
22 Engine electronics
23 Adaptive forward lighting, headlight range adjustment
24 Fuel pump
25 Transmission electronics
26 Engine electronics
27 Power steering
28 Transmission electronics
29 Transmission electronics
30 Engine electronics
31 Adaptive forward fighting, headlight range adjustment
32 Brake system, air conditioning system, clutch switch
33 Adaptive forward lighting, headlight range adjustment, light switch
34 Control unit, steering column module
35 Infotainment system
36 Mobile telephone, Infotainment system, display



Load compartment fuse box

The fuse box is behind a cover. Do not store any objects behind the cover. Depending on the equipment, there are two different fuse boxes.

Saloon 5-door, Caravan, Van

To open, turn both catches with a coin and fold down cover .

Saloon 3-door

To open, fold the cover upwards.

Saloon 4-door

To open, twist catch anti-clockwise and fold down cover

TwinTop

To open, pull the two knobs, remove the clips and fold the cover upwards.

Fuse box version A

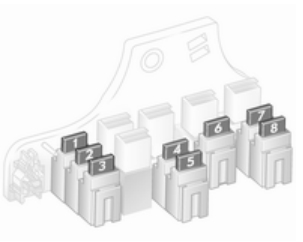

Opel Astra H (Astra Twintop) - fuse box - load compartment - version A
Opel Astra H (Astra Twintop) – fuse box – load compartment – version A
Number Circuit
1 Fog light
2
3 Load compartment power outlet
4 Reversing lights
5 Rear power windows
6 Air conditioning system
7 Front power windows
8 Heated exterior mirrors

Fuse box version B

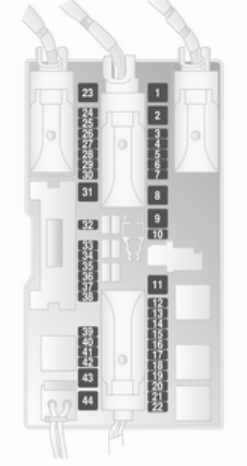

Opel Astra H (Astra Twintop) - fuse box - load compartment - version B
Opel Astra H (Astra Twintop) – fuse box – load compartment – version B
Number Circuit
1 Front power windows
2
3 Instruments
4 Heating, air conditioning system, electronic climate control
5 Airbags
6
7
8
9
10
11 Heated rear window
12 Rear window wiper
13 Parking assist
14 Heating, air conditioning system
15
16 Seat occupancy recognition, Open&Start system
17 Rain sensor, tyre pressure monitoring system, interior mirror
18 Instruments, switches
19
20 CDC
21 Heated exterior mirrors
22 Sun roof
23 Rear power windows
24 Diagnostics plug
25
26 Electrical foldable exterior mirrors
27 Ultrasonic sensor, anti-theft alarm system
28
29 Cigarette lighter, front power outlet
30 Rear power outlet
31
32
33 Open&Start system
34 Sun roof, TwinTop
35 Rear power outlet
36 Socket for towing equipment
37
38 Central locking system, terminal 30
39 Left seat heating
40 Right seat heating
41
42
43
44

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
