Suzuki Cultus (1989 – 1994) – fuse box diagram

Suzuki Cultus (1989 – 1994) – fuse box diagram

Year of production: 1989, 1990, 1991, 1992, 1993, 1994

Passenger Compartment Fuse Box

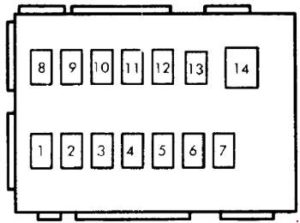

Suzuki Cultus - fuse box diagram - passenger compartment
Suzuki Cultus – fuse box diagram – passenger compartment
A Description components
1 10 Left Side Headlight & High Beam Indicator
2 10 Right Side Headlight
3 15 Dome Light, License Plate Light, Front & Rear Marker Light, Instrument Panel Illumination
4 15 Front Foglight
5 15 Hazard Warning Circuit & Horn
6 20 Ignition System & Gauges, Warning Lights
7 20 Heater Fan Motor, A/C Circuit
8 15 Stoplights
9 15 Cigarette Lighter & Radio
10 10 Back-Up Light
11 15 Rear Defogger
12 15 Front & Rear Wiper/Washer
Relay
13 Switch
14 Turn Signal

Engine Compartment Fuse Box

Suzuki Cultus - fuse box diagram - engine compartment
Suzuki Cultus – fuse box diagram – engine compartment
A Description components
A 60 Main
B 40 Primary
C 30 Primary
D 30 A/C
E 15 Electronic Fuel Injection
F 15 A/C

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
