Ford Transit (1986 – 1992) – fuse box diagram

Ford Transit (1986 – 1992) – fuse box diagram

Year of production: 1986, 1987, 1988, 1989, 1990, 1991, 1992

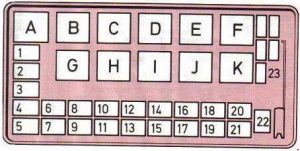

Fuse box diagram

Ford Transit – fuse box diagram
Ford Transit – fuse box diagram
No.
A
Protected Component
1 25 Heater blower motor, headlamp flasher
2 10 Direction indicators
3 15 Windscreen wiper motor, windscreen washer pump (vehicles without headlamp wash)
4 10 Reversing lamps, stop lights, heated rear window
5 10 Fuel and temperature gauges, ignition warning light, oil pressure warning light, low brake fluid warning light, diesel thermostart warning light
6 15 Tailgate wiper motor, tailgate washer pump
7 15 Dim-dip lighting
8 Not used
9 Not used
10 10 Right hand side and tall lights, instrument panel illumination
11 10 Left hand side and tail lights, licence plate lamps
12 10 Right hand dipped beam
13 10 Left hand dipped beam
14 10 Rear fog lamps, headlamp power wash timer
15 Not used
16 10 Right hand main beam, main beam warning lamp
17 10 Left hand main beam
18 10 Front courtesy lamp, rear interior lamps, windscreen washer pump (vehicles with headlamp wash), ciock/tachograph, radio
19 20 Hazard warning lights
20 25 Headlamp power wash, cigarette lighter
21 20 Heated rear window
22 10 Overdrive
23 Positions for five spare fuses
Relay
A Automatic transmission inhibitor
B Not used
C Dim-dip lighting
D Dim-dip lighting
E Not used
F Heated rear window
G Direction Indicator flasher (heavy duty if trailer towing specified)
H Headlamp power wash
 I Intermittent windscreen wipe
 J Intermittent rear screen wipe
 K Not used
