Year of production: 1996

Instrument panel fuse block

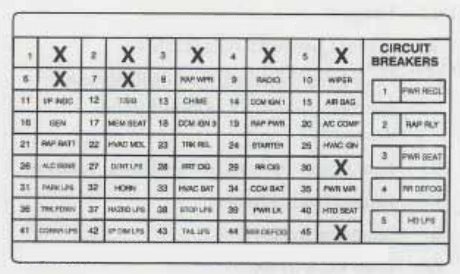

Cadillac Fleetwood – fuse box diagram – instrument panel
Cadillac Fleetwood – fuse box diagram – instrument panel
Fuse number Usage
8 Component Center (RAP Wiper) Relay
9 Radio Receiver
10 Windshield Wiper/Washer Switch
11 Air Bug System, Instrument Panel Cluster
12 ParK/Neutral Position and Backup Lamp Switch, Turn Signal Lamp Flasher
13 Warnin Alarm Cruise Control Release Switch, Inside Rearview Mirror, Rear window Defogger Relay, Park/Neutral Position and Backup Lamp Switch, Automatic Level Control Sensor
14 Central Control Module (CCM)
15 Air bag System
16 Generator, Secondary Engine Cooling Fan Relay
17 Driver’s Seat Ad’uster Memory Module, Heated Driver’s Seat Switch, Heated 4 assenger’s Seat Swltch
18 Central Control Module (CCM), Remote Control Door Lock Reciver and Theft-Deterrent Module, Cruise Control Module, Cruise Control Switch, Cruise Release Switch
19 Accessory Time Delay Cut-Off (RAP Power) Relay
20 A/C Compressor Relay, Primary Engine Cooling Fan Relay
21 Component Center (RAP Wiper) Relay
22 Blower Motor Control Module
23 Rear Compartment Lid Release Switch
24 Theft-Deterrent Relay, Air Bag System
25 Instrument Cluster, Heater-A/C Control, Vacum/Electric Solenoid, Electric Actuator
26 Automatic Level Control Sensor, Rear Compartment Courtesy Lamp
27 Compartment Center Relay
28 Front Cigar Lighter
29 Rear Cigar Lighter
30 Park Lamp Relay
31 Horn Relay
32 Warning Alarm, Heater-A/C Control, Instrument Cluster, Headlamp Switch, Radio Reciver
34 Center Control Module (CCM)
35 Door Lock Switches, Outside Rearview Mirrors, Ignition Key Disable Relay Assembly
36 Rear Compartment Lid Pull-Down Actutor
37 Hazard Lamp Flasher
38 Stoplamps Switch
39 Door Lock Relay
40 Heated Driver’s and Passenger’s Seat Control Modules
41 Instrument Cluster, Radio Control, Cornering Lamps, Turn Signal Switch, Front Park Lamps
42 Headlamp Switch Control for Interior Lamps, Dimming
43 Rear Taillamps, Rear Side Marker Lamps, License Lamp
44 Outside Rearview Mirror Defogger


Circuit Breaker Usage
1 Lumbar, Power Antenna
2 Accesory, Time Delay Cut-Off (RAP Power) Relay
3 Driver’s amd Passenger’s Adjuster Switches, Driver’s Seat Adjuster Memory Module, Driver’s and Passenger’s Seats Recline Switches
4 Rear Defogger Relay
5 Headlamp Relay, Daytime Running Lamps (DRL) Relay

Underhood Electrical Center

The electrical center is located on the passenger side wheel housing in the engine compartment.

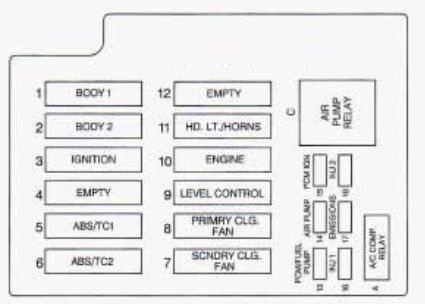

Cadillac Fleetwood – fuse box diagram – underhood electrical center
Cadillac Fleetwood – fuse box diagram – underhood electrical center
Fuse Usage
1 Circuit Breakers: 3,4; I/P Fuses: 36, 37, 38, 39, 40
2 Circuit Breaker: 2; I/P Fuses: 21, 22, 26, 27, 28, 29, 33, 34, 35
3 Concealed Fuse; I/P Fuses: 8, 9, 10, 11, 12, 13, 14, 15, 24; Underhood Electrical Center:
15, 16, 17, 18
5 ABS/TCS Brake Pressure Modulator Valve
6 ABS/TCS Brake Pressure Modulator Valve
7 Secondary Engine Cooling EmRelay
8 Primary Engine Cooling Fan Relay
9 Automatic Level Control Air Compressor
10 Engine Compartment Fuses: 13, 14
11 Circuit Breaker: 5; I/P Fuses: 31, 32
13 Fuel Pump Relay, Powertrain Control Module (PCM)
14 Secondary Air Injection (AIR) Pump Relay
15 Prowertrain Control Module (PCM), Ignition Coil
16 Fuel Injectors Cylinders 1, 4, 6, 7
17 Exhaust Gas Recirculation (EGR), Vacuum Control Signal Solenoid Valve, Secondary Air Injection (AIR), Pump Relay (Coil), Mass Air Flow Sensor, Electronic Transmission, Left and Right Heated Oxygen Sensors, Evaporative Emission (EVAP) Canister Purge Solenoid Valve
18 Fuel Injectors Cylinders 2, 3, 5, 8
A A/C Compressor Relay
C Secondary Air Injection (AIR) Pump Relay


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
