Oldsmobile Alero (2004) – fuse box diagram

Oldsmobile Alero (2004) – fuse box diagram

Year of production: 2004

Instrument panel fuse box

Driver’s Side

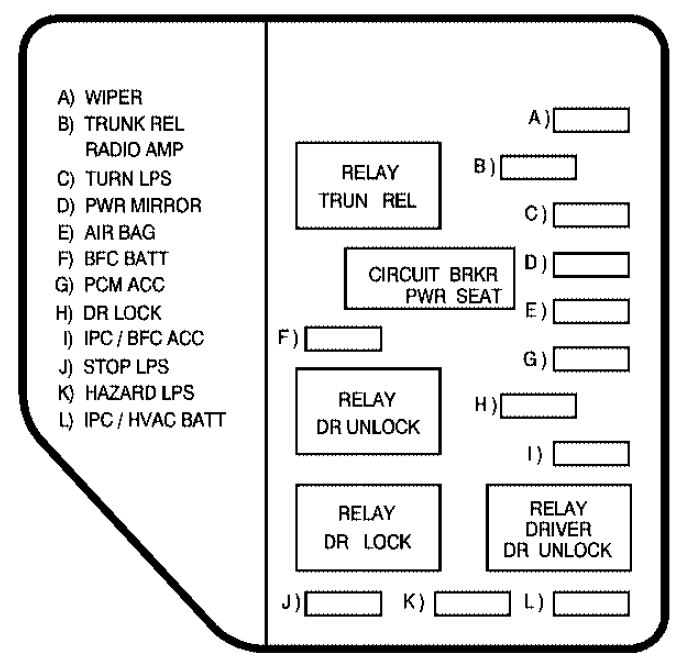

Oldsmobile Alero - fuse box - instrument panel (driver's side)
Oldsmobile Alero – fuse box – instrument panel (driver’s side)
Fuse Usage
WIPER Windshield Wiper Motor, Washer Pump
Trunk Release Relay/Motor, Audio Amplifier/RFA
TURN LPS Turn Signal Lamps
PWR MIRROR Power Mirrors
AIR BAG Air Bags
BFC BATT Body Computer (BFC)
PCM ACC Power Control Module (PCM)
DR LOCK Door Lock Motors
IPC/BFC ACC Cluster, Body Computer (BFC)
STOP LPS Stop Lamps
HAZARD LPS Hazard Lamps
IPC/HVAC BATT HVAC Head, Cluster, Data Link Connector

Circuit Breaker Usage
PWR SEAT Power Seats

Relay Usage
TRUNK REL Trunk Relay
DR UNLOCK Door Unlock Relay
DR LOCK Door Lock Relay
DRIVER DR UNLOCK Driver’s Door Unlock Relay

Passenger’s Side

Oldsmobile Alero - fuse box - instrument panel (passenger's side)
Oldsmobile Alero – fuse box – instrument panel (passenger’s side)
Fuse Usage
INST LPS Interior Lamp Dimming
CRUISE SW LPS Steering Wheel Cruise Control Switch Lamps
CRUISE SW Steering Wheel Cruise Control Switches
CRUISE Cruise Control
FOG LPS Fog Lamps
INT LPS Interior Courtesy Lamps
RADIO BATT Radio, XMTM Satellite Radio/DAB
SUNROOF Power Sunroof

Circuit Breaker Usage
PWR WNDW Power Windows


Circuit Breaker Usage
FOG LPS Fog Lamps

Engine compartment fuse block

Oldsmobile Alero - fuse box - engine compartment
Oldsmobile Alero – fuse box – engine compartment
Fuse Usage
1 Ignition Switch
2 Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
3 Left Electrical Center-Stop Lamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
4 Anti-Lock Brakes
5 Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release, Audio Amplifier, Remote Keyless Entry
6 Not Used
7 Ignition Switch
8 Cooling Fan #1
9 Rear Defog
10 Not Used
11 Starter (V6 only)
12 Cooling Fan #1
13 HVAC Blower (Climate Control)
14 Cooling Fan #2
15 Cooling Fan
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
19 Automatic Headlamp System
20 Automatic Headlamp System
21 Horn
22 Daytime Running Lamps (DRL)
23 Spare Fuse Holder
24 Spare Fuse Holder
25 Spare Fuse Holder
26 Spare Fuse Holder
27 Spare Fuse Holder
28 Spare Fuse Holder
29 Spare Fuse Holder
30 Spare Fuse Holder
31 Spare Fuse Holder
32 Spare Fuse Holder
33 Rear Defog
34 Accessory Power Outlets, Cigarette Lighter
35 Generator
36 Not Used
37 Air Conditioning Compressor, Body Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module (PCM)
40 Anti-Lock Brakes (ABS)
41 Ignition System
42 Back-Up Lamps, Brake Transaxle Shift Interlock
43 Horn
44 PCM
45 Parking Lamps
46 Climate Control System, Air Conditioning
47 Canister Vent Valve, Exhaust Oxygen Sensors
48 Fuel Pump, Injectors
49 Not Used
50 Right Headlamp
51 Left Headlamp
52 Cooling Fan #2
53 HVAC Blower (Climate Control)
54 Crank (V6 only)
55 Cooling Fan #2 Ground
56 Fuse Puller for Mini Fuses
57 Not Used


WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
