Citroen C4 (from 2011) – fuse box diagram

Citroen C4 (from 2011) – fuse box diagram

Year of production: 2011, 2012, 2013, 2014, 2015, 2016

Fuse box under dashboard

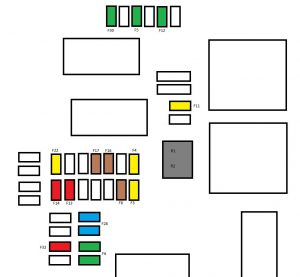

Citroen C4 - fuse box diagram - dashboard
Citroen C4 – fuse box diagram – dashboard

The fuseboxes are located in the lower dashboard (left – hand side).

Fuse Ampere rating [A] Function
F8 3 Alarm siren, alarm ECU
F13 10 12V socket
F14 10 12V socket in boot
F16 3 Lighting for the large multifunctional storage unit, rear map reading lamps, glove box illumination
F17 3 Sun visor illumination, front map reading lamps
F28 15 Audio system, radio (after-market)
F30 20 Rear wiper
F32 10 Hi-Fi amplifier



Fuse Ampere rating [A] Functions
F36 15 Rear 12 V socket
F37 Not used
F38 Not used
F39 Not used
F40 Not used

Fuse box in engine compartment

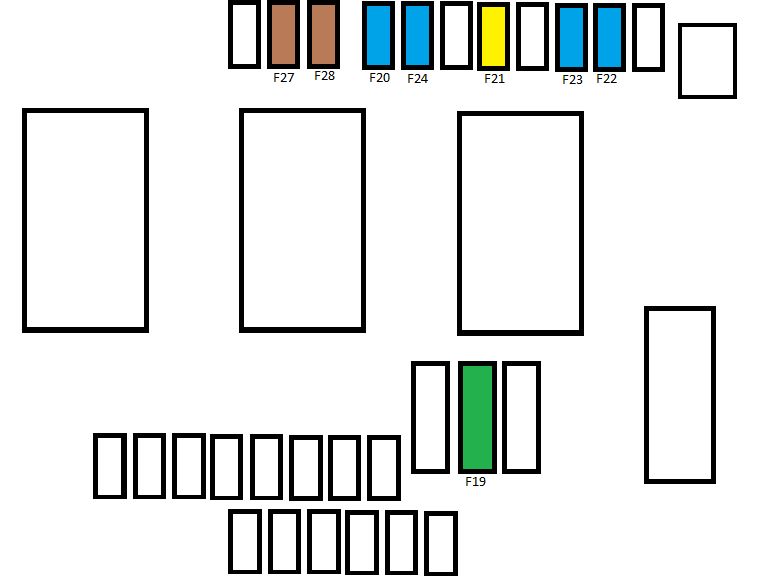

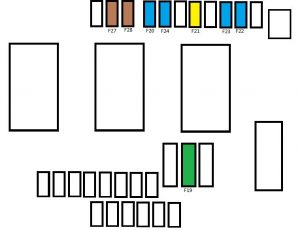

Citroen C4 - fuse box diagram - engine compartment
Citroen C4 – fuse box diagram – engine compartment

The fusebox is placed in the engine compartment near the battery (left-hand side).

Fuse Ampere rating [A] Functions
F19 30 Windscreen wiper slow/fast speed
F20 15 Front and rear screenwash pump
F21 20 Headlamp wash pump
F22 15 Horn
F23 15 Right-hand main beam headlamp
F24 15 Left-hand main beam headlamp
F27 5 Left-hand dipped headlamp
F28 5 Right -hand dipped headlamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
