Oldsmobile Aurora (1995) – fuse box diagram

Oldsmobile Aurora (1995) – fuse box diagram

Year of production: 1995

Rear compartment driver side fuse block

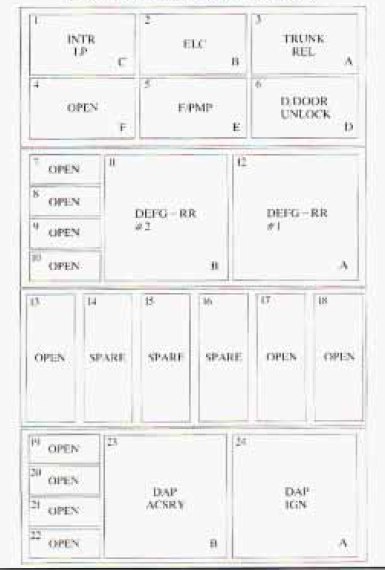

Oldsmobile Aurora - fuse box - rear compartment driver side fuse block

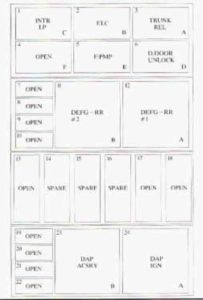

Oldsmobile Aurora – fuse box – rear compartment driver side fuse block
Position Circuitry
1 Interior Lamps Relay
2 Electronic Level Control Relay
3 Trunk Release Relay
4 Not Used
5 Fuel Pump Relay
6 Driver Door Unlock Relay
7 Not Used
8 Not Used
9 Not Used
10 Not Used
11 Rear Defogger Relay (Lower Zone)
12 Rear Defogger Relay (Upper Zone)
13 Not Used
14 Spare
15 Spare
16 Spare
17 Not Used
18 Not Used
19 Not Used
20 Not Used
21 Not Used
22 Not Used
23 Direct Accessory Power-Accessory Relay
24 Direct Accessory Power-Ignition Relay

Rear compartment passenger side fuse block

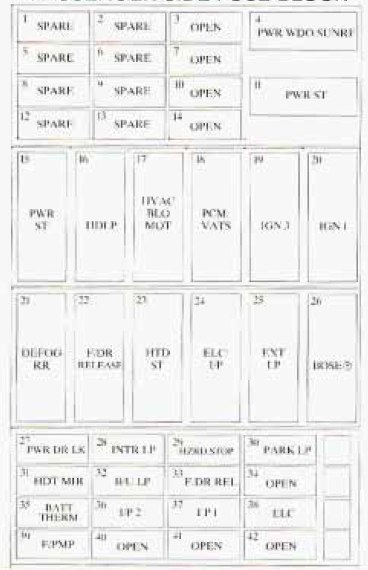

Oldsmobile Aurora - fuse box - rear compartment passenger side fuse block

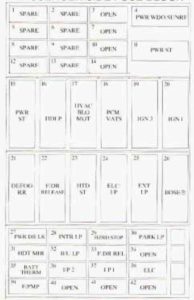

Oldsmobile Aurora – fuse box – rear compartment passenger side fuse block
Position Circuitry
1 Spare
2 Spare
3 Open
4 Breaker-Power Window/Sunroof
5 Spare
6 Spare
7 Open
8 Spare
9 Spare
10 Open
11 Breaker-Power Seat
12 Spare
13 Spare
14 Open
15 Power Seat
16 Breaker-Headlamps
17 HVAC Blower Motor
18 Powertrain control Module/PASS-Key II
19 Ignition 3
20 Ignition 1
21 Rear Defogger
22 Trunk and FLKI Door Releases
23 Heated Seat
24 Electronic Level Control/lnstrument Panel
25 Exterior Lamps
26 Bose Stereo (If So Equipped)
27 Power Door Locks
28 Interior Lamp
29 Hazard Lamps Stop Lamps
30 Parking Lamps
31 Heated Outside Mirror
32 Back-Up Lamps
33 Fuel Door Release
34 Not Used
35 Battery Thermistor
36 Instrument Panel-Power Antenna, Remote CD Changer Radio Chassis
37 Instrument Panel-Remote Accessory Power Module, Oil Level Indicator, ALDL
38 Electronic Level Control
39 Fuel Pump

Fuse block instrument panel

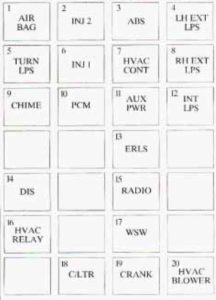

Oldsmobile Aurora - fuse box - instrument panel

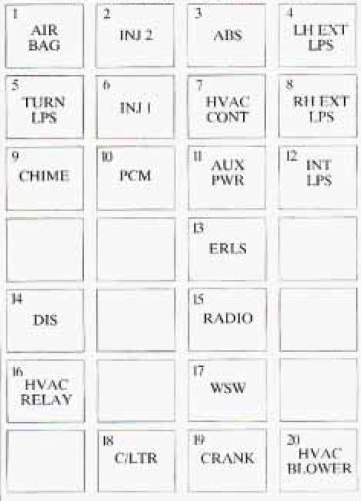

Oldsmobile Aurora – fuse box – instrument panel
Position Circitry
1 Supplemental Inflatable Restraint (Air Bag)
2 Injectors
3 Anti-Lock Brake System
4 Left Exterior Lamps
5 Turn Signal Lamps
6 Injectors
7 Climate Controls, Magnetic Speed
8 Right Exterior Lamps
9 Chime (Ignition 1 ), Memory Set
10 Powertrain Control Module Cruise Control, VATS PASS-Key II
11 Auxiliary Power
12 Interior Lamps
13 Brake-Transaxle Shift Interlock, Heated Oxygen Sensor: Linear EGR
14 Driver Information Center
15 Radio
16 Climate Control Relay
17 Windshield Wipers
18 Cigar Lighter
19 Crank, Air Bag Module
20 Climate Control Blower

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
