Chevrolet Malibu (2007) – fuse box diagram

Year of production: 2007

Instrument Panel Fuse Block

The instrument panel fuse block is located at on the lower front side of the console, on the passenger side of the vehicle.

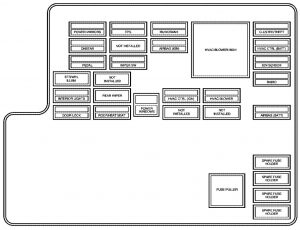

Chevrolet Malibu -  wiring diagram - fuse box diagram -  instrument panel
Chevrolet Malibu – wiring diagram – fuse box diagram – instrument panel
Fuses Usage
POWER MIRRORS Power Mirrors
EPS Electric Power Steering
RUN/CRANK Cruise Control, Electronic Range Select, Driver Shift Control, Passenger Airbag Status Indicator
HVAC BLOWER HIGH (Relay) Climate Control System
CLUSTER/ THEFT Instrument Panel Cluster, Theft Deterrent System
ONSTAR OnStar® System
NOT INSTALLED Not Used
AIRBAG (IGN) Airbag System
HVAC CTRL (BATT) Climate Control System
PEDAL Adjustable Throttle and Brake Peda
WIPER SW Windshield Wiper/Washer Switch
IGN SENSOR Ignition Switch
STR/WHL ILLUM Steering Wheel Controls Backlighting
NOT INSTALLED Not Used
RADIO Audio System
INTERIOR LIGHTS Overhead Lighting, Trunk/Cargo Lighting
REAR WIPER Rear Wiper System/ Washer Pump
HVAC CTRL (IGN) Climate Control System
HVAC BLOWER Climate Control System
DOOR LOCK Automatic Door Lock System
ROOF/HEAT SEAT Sunroof, Heated Seats, Automatic Dimming Rearview Mirror, Compass, Rear Wiper/ Washer System
POWER WINDOWS Power Window Switch
NOT INSTALLED Not Used
NOT INSTALLED Not Used
AIRBAG (BATT) Airbag System
FUSE PULLER Fuse Puller
SPARE FUSE HOLDER Spare
SPARE FUSE HOLDER Spare
SPARE FUSE HOLDER Spare
SPARE FUSE HOLDER Spare



Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.

Chevrolet Malibu -  wiring diagram - fuse box diagram - engine compartment
Chevrolet Malibu – wiring diagram – fuse box diagram – engine compartment
Fuses Usage
1 Air Conditioning Clutch
2 Electronic Throttle Control
3 Engine Control Module (IGN 1) (V6)
4 Transmission
6 Emission 1
7 Left Headlamp Low-Beam
8 Horn
9 Right Headlamp Low-Beam
10 Front Fog Lamps
11 Left Headlamp High-Beam
12 Right Headlamp High-Beam
13 Engine Control Module (BATT) (L4)
14 Windshield Wiper
15 Anti-lock Brake System
16 Engine Control Module (IGN 1) (L4)
17 Cooling Fan 1
18 Cooling Fan 2
19 Run Relay
20 IBCM 1
21 IBCM (R/C)
22 Rear Electrical Center 1
23 Rear Electrical Center 2
24 Anti-lock Brake System
25 IBCM 2
26 Starter
27 (DIODE) Windshield Wiper
41 Electric Power Steering
42 Transmission Control Module
43 Ignition Module
44 Fuel Injectors
45 Rear Oxygen Sensors
46 (Resistor) Brake Lamp Diagnostic
47 Daytime Running Lamps
51 Engine Control Module (BATT) (V6)



Relays Usage
28 Cooling Fan 1
29 Cooling Fan Mode Series/Parallel
30 Cooling Fan 2
31 Starter
32 Run/Crank, Ignition
33 Powertrain
34 Air Conditioning Clutch
35 High-Beam Headlamps
36 Front Fog Lamps
37 Horn
38 Low-Beam Headlamps
39 Windshield Wiper 1
40 Windshield Wiper 2
48 Daytime Running Lamps

Rear Compartment Fuse Block

The rear compartment fuse block is located in the trunk of the vehicle.  Access the fuse block through the trunk panel on the driver’s side of the rear cargo area.

Chevrolet Malibu -  wiring diagram - fuse box diagram - rear compartment
Chevrolet Malibu – wiring diagram – fuse
box diagram – rear compartment
Fuses Usage
1 Not Used
2 Driver Seat Controls
3 Not Used
4 Not Used
5 Emission
6 Parklamps
7 Not Used
8 Not Used
9 Not Used
10 Sunroof Controls
11 Not Used
12 Auxiliary Power 2
13 Not Used
14 Heated Seat Controls
15 Not Used
16 Remote Keyless Entry System, XM Satellite Radio, Rear Seat Entertainment System, Homelink
17 Back-up Lamps
18 Not Used
19 Not Used
20 Cigarette Lighter, Auxiliary Power Outlet
21 Not Used
22 Trunk
23 Rear Window Defogger
24 Heated Mirror Controls
25 Fuel Pump



Relays Usage
26 Rear Window Defogger
27 Parklamps
28 Not Used
29 Not Used
30 Not Used
31 Not Used
32 Not Used
33 Back-up Lamps
34 Not Used
35 Not Used
36 Trunk
37 Fuel Pump
38 (Diode) Trunk, Cargo Lamps

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
