Oldsmobile Intrigue (1998) – fuse box diagram

Oldsmobile Intrigue (1998) – fuse box diagram

Year of production: 1998

Driver’s Side Fuse Block

The left side fuse panel is located to the left of the steering wheel, under the instrument panel.

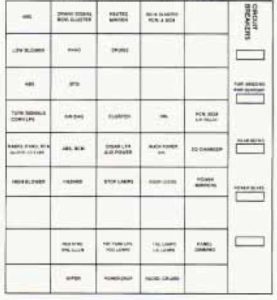

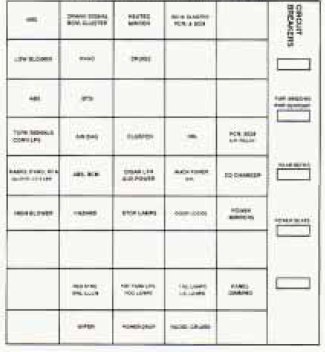

Oldsmobile Intrigue - fuse box diagram - driver's side fuse block
Oldsmobile Intrigue – fuse box diagram – driver’s side fuse block
Fuse Description
ABS ABS Motor Asm
CRANK SIGNAL BCM, CLUSTER CRANK — Instrument Panel Cluster, Body Control Module, Powertrain Control Module
HEATED MIRROR Heated Outside Rearview Mirrors
IGN 0: CLUSTER PCM, &BCM I/P Cluster, Powertrain Control Module, Body Control
LOW BLOWER HVAC Control Assembly, Blower Motor
HVAC Air Temperature Valve Motor, HVAC Control Assembly, Solenoid Box
CRUISE Cruise Control Module
ABS Electronic Brake Control Module (EBCM) ABS Relay, TCS Disable Switch
BTSI Brake-Transaxle Shift Interlock
TURN SIGNALS, CORN LPS Turn Signals, Cornering Lamps
AIR BAG Air Bag System
CLUSTER Instrument Panel Cluster
DRL Daytime Running Lamps
PCM, BCM, U/H RELAY Powertrain Control Module, Body Control Module, Underhood IgnitiodRelay
RADIO, WAC, RFA CLUSTER DATA LINK Radio, HVAC Control Assembly, Instrument Panel Cluster, Remote Keyless Entry Module, Data Link Connector, Bose Amplifier
ABS, BCM ABS1 — Electronic Brake Control Module (EBCM), Body Control Module
CIGAR LTR, AUX POWER, POWER DROP Auxiliary Power, Cigarette Lighter, Power Drop
INADV POWER BUS Vanity Mirrors, I/P Courtesy Lamps, I/P Compartment Lamps, Trunk Courtesy Lamp, Header Courtesy and Reading Lamps, US Lighted Rearview Mirror
CD CHANGER Cartridge Disk Changer
HIGH BLOWER High Blower Relay
HAZARD Hazard Switch
STOP LAMPS Stoplamps Switch
DOOR LOCKS Lock Relays Body (Internal to Body Control Module) and External Driver DoorL ock Relay
POWER MIRRORS Left-hand and Right-hand Power Mirrors
RED STRG WHL ILLUM Steering Wheel Radio Switch Illumination
FRT PRK LPS, FOG LAMPS PARK LPS — Front Parking Lamps, Sidemarker Lamps, Fog lamps
TAIL LAMPS, LIC LAMPS Taillamps, License Lamps, Rear Sidemarker Lamps, Rear Sidemarker Lamps
PANEL DIMMING Dimmable Instrument Panel Lamps
WIPER Wiper Switch
POWER DROP Power Drop
RADIO, CRUISE Radio, Steering Wheel Radio Controls, Cruise Control Switches



Circuit Breaker Description
PWR WINDOWS, PWR SUNROOF Power Windows, Power Sunroof
REAR DEFOG Rear Defog
POWER SEATS Power Seats, Fuel DooRr elay

Underhood Electrical Center – Passenger’s Side

Some fuses are in the underhood electrical centers on the passenger’s side of the engine compartment.

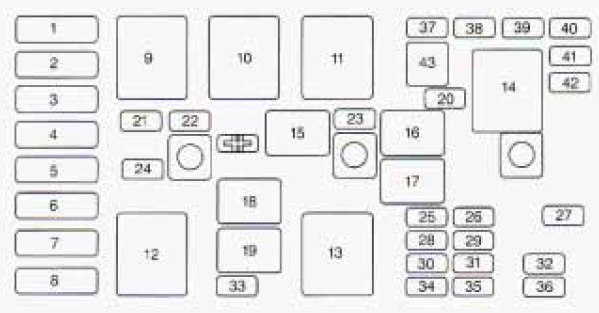

Oldsmobile Intrigue - fuse box diagram - underhood electrical - center passenger side
Oldsmobile Intrigue – fuse box diagram – underhood electrical – center passenger side
Fuse Usage
1 Cooling Fan
2 Starter Solenoid
3 Power Seats, Rear Defog, Heated Seats
4 High Blower, Hazard Flasher, Stoplamps, Power Mirror, Door Locks
5 Ignition Switch, BTSI, Stoplamps, ABS, Turn Signals, Cluster, Air Bag, DRL Module
6 Cooling Fan
7 Interior Lamps, Retained Accessory Power, ABS, Keyless Entry, CEL TEL, Data Link, HVAC Head, Cluster, Radio, AUX Power, Cigarette Lighter
8 Ignition Switch, Wipers, Radio, Steering Wheel Controls, Body Control Module, AUX Power, Power Windows, Sunroof, HVAC Controls, DRL, Rear Defog Relay



Relay Usage
9 Cooling Fan 2
10 Cooling Fan 3
11 Starter Solenoid
12 Cooling Fan 1
13 Ignition Main
14 Not Used
15 A/C Clutch
16 Horn
17 Fog Lamps
18 Fuel Pump
19 Fuel Pump



Fuse Usage
20 Air Pump
21 Generator
22 ECM
23 A/C Compressor Clutch
24 Not Used
25 Electronic Ignition
26 Transaxle
27 Horn
28 Fuel Injector
29 Oxygen Sensor
30 Engine Emissions
31 Not Used
32 Headlamp (Right)
33 Rear Compartment Release
34 Parking Lamp
35 Fuel Pump
36 Headlamp (Left)
37 Spare
38 Spare
39 Spare
40 Spare
41 Spare
42 Spare
43 Fuse Puller

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
