Oldsmobile Silhouette (1996) – fuse box diagram

Oldsmobile Silhouette (1996) – fuse box diagram

Year of production: 1996

Instrument Panel Fuse Block

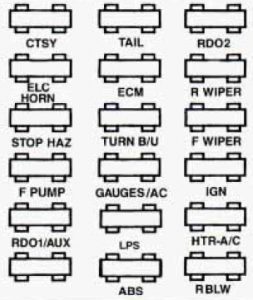

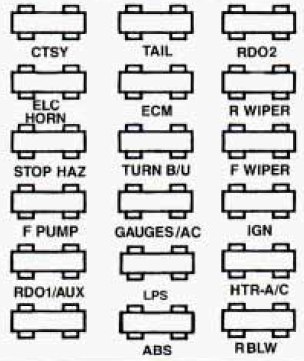

Oldsmobile Silhouette - fuse box diagram - instrument panel
Oldsmobile Silhouette –
fuse box diagram –
instrument panel
Position Circuity
CTSY Automatic Door Lock Module, Dome Lamps, Courtesy Lamps, Power Door Lock Switches, Glove Box Lamp, Power Mirrors, Remote Lock Control Receiver
ELC Electronic Level Control, Air Inflator, Underhood Lamp
HORN Horns, Horn Relay, Safety Belt Buzzer, Lamps On Reminder, Key in the Ignition Warning
STOP HAZ Hazards, Rear Stoplamps, Anti-Lock Brake System (ABS), Center High-Mounted Stoplamp
F PUMP Fuel Pump, Rear Engine Fan Relay
RDO1/AUX Radio, Cigarette Lighter, Accessory Power Outlet, Trailer Harness, Heater-A/C Control
TAIL Headlamp and Instrument Panel Dimmer Switch (to LPS fuse), Power Sliding Door Controller
ECM Powertrain Control Module
TURN B/U Automatic Door Locks Module, Back-up Lamps, Power Sliding Door Alarm Module, Fog Lamp Relay, Power Sliding Door Controller, Remote Lock Control Receiver, Brake-Transaxle Shift Interlock (BTSI), Front/Rear Turn Lamps
GAUGE/AC A/C Compressor Relay, ABS, Electronic Level Control Height Sensor, Instrument Panel Cluster, Power Sliding Door Controller
LPS Interior Lamps Dimming, Rear Climate Control Blower, Door Lock Switches, Temperature and Compass Display, Headlamp and Instrument Panel Dimmer Switch, Heater-A/C Control, Instrument Panel Cluster, Illumination for Power Sliding Door Switches
ABS ABS Enable Relay
RDO2 Radio, Steering Wheel Controls
R/WIPER Temperature and Compass Display, Rear Window Wipermasher
F/WIPER Windshield and Rear Window Wipermasher
IGN Cruise Control Switch, Heater-A/C Control, Speedometer and Tachometer, Rear Window Defogger Relay, Safety Belt Reminder Chime, Lamps on Reminder, Key in the Ignition Warning
HTR A/C Low Speed A/C Blower Relay
RR BLWR Rear Climate Control Blower

 Circuit breaker/relay panel

Circuit breaker/relays are locatted in thr circuit breaker/relay panel. This is located behind the panel under the glove box, near the passengers’s door.

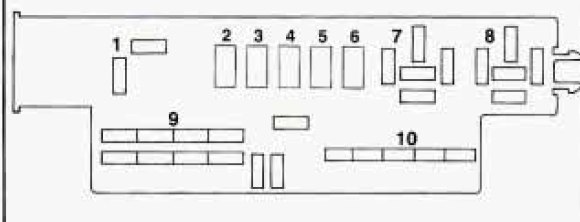

Oldsmobile Silhouette - fuse box diagram - circuit breaker/relay panel
Oldsmobile Silhouette –
fuse box diagram –
circuit breaker/relay panel
Position Circuity
1 Hazard Flasher
2 (fuse) Automatic Transaxle, Evaporative Emission (EVAP) Canister Purge Solenoid Valve, Evaporative Emissions Canister Purge Vacuum Diagnostic Switch, Linear Exhaust GaRse circulation (EGR) Valve, Front Engine Fan Relay, Heated Oxygen Sensors, Mass Air Flow (MAF) Sensor, Powertrain Control Module (PCM)
3 Not Used
4 Power Windows
5 Power Seat, Power Sliding Door Controller, Power Door Locks
6 Rear Defogger
7 Air Conditioning Blower, Rear Blower Motor
8 Horn
9 Safety Belt Reminder Chime, Lamps on Reminder, Key In the Ignition Warning (Chime Module)
10 Defogger Timer Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
