Lancia Ypsilon (from 2011) – fuse box diagram

Lancia Ypsilon (from 2011) – fuse box diagram

Year of production: 2011, 2012, 2013, 2014, 2015, 2016

Engine compartment fuse box

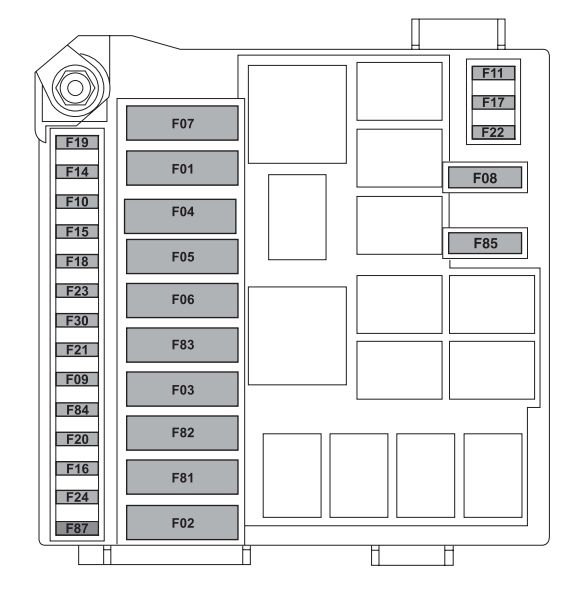

Lancia Ypsilon mk2 - fuse box - engine compartment
Lancia Ypsilon mk2 – fuse box – engine compartment
Description Fuse Ampere rating [A]
BCM F01 60
RDU F02 50
Ignition switch F03 20
BSM1 (pump) F04 40
EPS F05 70
Engine single speed cooling fan (heated engines) F06 20
Engine dual speed cooling fan solenoid valve/Engine cooling fan low speed (conditioned engines) F06 30
Engine cooling electric fan high speed F07 40
Fog lights F08 30
Headlamp washer pump F09 20
Horns F10 15
Engine management system (secondary loads) F11 10
Main beam headlights F14 15
Sunroof motor F15 20
+15 ECM/coil T10 F16 7,5
ECM main loads (versions 0.9 TwinAir 85 HP/1.2 8V 69 HP) F17 10
‘+30 ECM/coil T09 F18 5
Fuel pump F19 15
Heated rear window/mirror defrosters F20 30
Air conditioning compressor F21 7,5
Supply from SCM main relay for ECU (versions 0.9 TwinAir 85 HP/1.3 16V MultiJet) F22 15
Supply from SCM main relay for ECM (versions 1.2 8V 69 HP) F22 20
BSM 9.0 (ECU, valves) F23 20
BSM 9.0/NGE (+15 INT) F24 7,5
Heater plug control unit (versions 1.3 16V MultiJet) F81 60
Passenger compartment fan F82 40
Front power socket (with or without cigar lighter) F85 15
Battery charge status sensor F87 5

+15 = ignition-operated positive terminal

+30 = battery direct positive terminal (not ignition-operated)

Dashboard fuse box

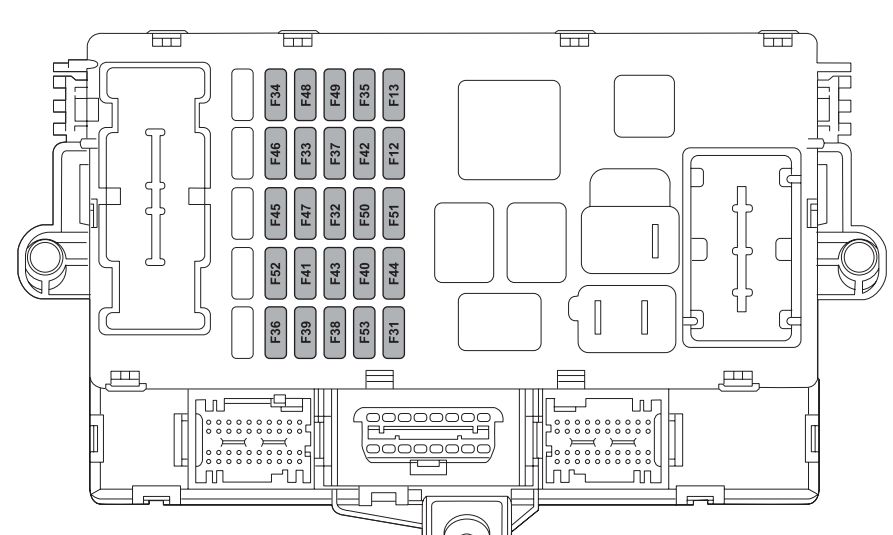

Lancia Ypsilon mk2 - fuse box - dashboard
Lancia Ypsilon mk2 – fuse box – dashboard
Description Fuse Ampere rating [A]
Free F12
+ 15 headlamp alignment corrector and IPC headlamp levelling F13 5
+ 15 INT/A F31 5
Free F32
+30 KL30 F36 10
+15 switch on brake pedal (NO) F37 7,5
Door central locking F38 20
Two-way windscreen washer pump F43 20
Front electric window (driver side) F47 20
Front electric window (passenger side) F48 20
+ 15 KL15 F49 7,5
+ 15 KL15 F50 7,5
+ 15 KL15 F51 5
+30 KL30 F53 7,5

+15 = ignition-operated positive terminal

+30 = battery direct positive terminal (not ignition-operated)

Luggage compartment fuse box

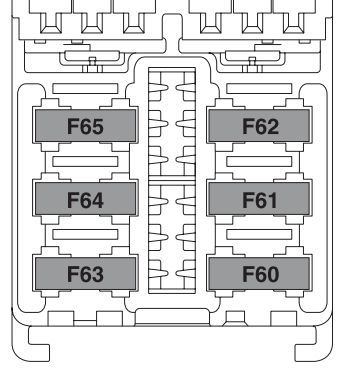

Lancia Ypsilon mk2 - fuse box - luggage compartment
Lancia Ypsilon mk2 – fuse box – luggage compartment
Description Fuse Ampere rating [A]
BOSE HI-FI system F60 20
Free F61
Heated seats F62 15
Rear right electric window F63 20
Rear left electric window F64 20
Alarm setup supply F65 7,5

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
