Kubota Tractor M9540 – fuse box diagram

20 July 2019 admin Kubota, M 0

Kubota Tractor M9540 – fuse box diagram

Year of production:

Fuse box

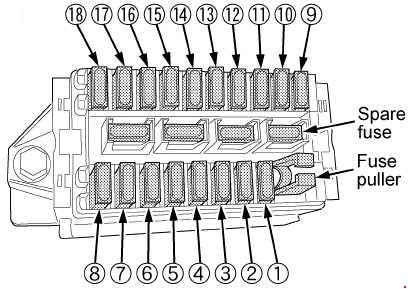

Kubota M9540 – fuse box diagram
Number Ampere ratting [A] Protected circuit
1 5 Starter Relay
2 15 Auxiliary Power/Air Suspension Seat (if equipped)
3 15 Work Light (Front, Side)
4 10 Air Conditioner (Compressor)
5 30 Air Conditioner (Fan Motor)
6 15 Cigarette Lighter
7 15 Work Light (Front)
8 15 Work Light (Rear)
9 20 Spare Fuse
10 20 Flasher (Hazard)
11 20 Head Light, Tail Lamp
12 10 Meter, Radio (Back Up), Horn
13 10 Turn Signal, Stop Lamp
14 5 Meter Panel, OPC
15 5 Alternator, Engine, Heater
16 15 Wiper
17 5 Air Conditioner (Control)
18 5 Radio
Kubota M9540 - fuse box diagram

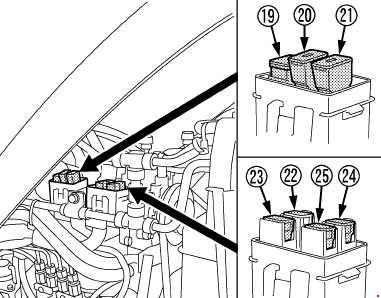

Kubota M9540 – fuse box diagram
Number Ampere ratting [A] Protected circuit
19 100 Charge
20 50 Air Heater
21 50 Head Light, Hazard
22 30 Work Light, Fuel Cut Solenoid
23 30 Key Switch
24 30 Electrical Outlet
25 40 Air Conditioner
Kubota M9540 - fuse box diagram

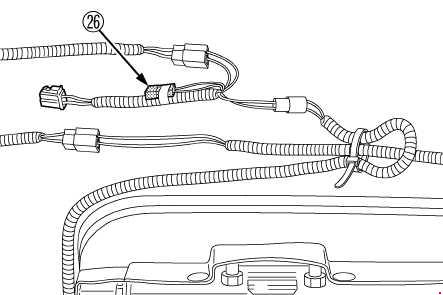

Kubota M9540 – fuse box diagram
Number Ampere ratting [A] Protected circuit
26 15 Air Suspension Seat (if equipped)
Kubota M9540 - fuse box diagram

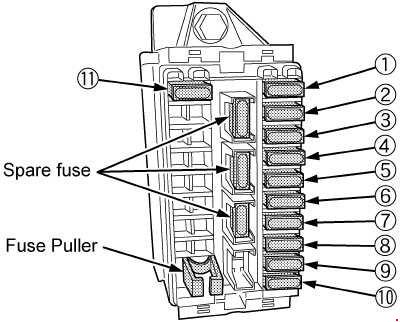

Kubota M9540 – fuse box diagram
Number Ampere ratting [A] Protected circuit
1 15 Work Light (R)
2 15 Work Light (L)
3 5 Alternator, Engine, Glow Plug
4 5 Meter Panel, OPC
5 10 Turn Signal
6 15 Auxiliary Power
7 5 Meter (Back Up)
8 20 Head Light, Tail Lamp
9 15 Flasher (Hazard)
10 5 Starter Relay
11 10 Horn
Kubota M9540 - fuse box diagram

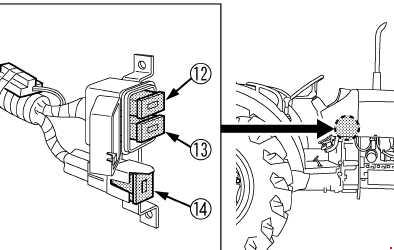

Kubota M9540 – fuse box diagram
Number Ampere ratting [A] Protected circuit
12 40 Key switch, Head Light, Hazard
13 30 Fuel Cut Solenoid, Work Light
14 50 Charge, Glow Plug

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
