Hyundai Centennial (2016) – fuse box diagram

Hyundai Centennial (2016) – fuse box diagram

Year of production: 2016

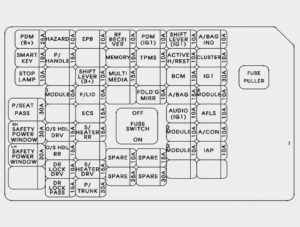

Instrument panel (Driver’s side fuse panel)

Hyundai Centennial - fuse box diagram - instrument panel (driver's side)
Hyundai Centennial – fuse box diagram – instrument panel (driver’s side)
Fuse name Ampere rating [A] Protected component
PDM B+ 25 Smart Key Control Module
Hazard 10 Center Facia Switch
EPB 10 Electric Parking Brake Switch, Crash Pad Switch
RF Receiver 10 RF Receiver, Security Indicator
PDM (IG1) 10 Smart Key Control Module
Shift Lever (IG1) 10 ATM Shift Lever IND.
Air Bag IND. 10 Instrument Cluster
Smart Key 10 Start/Stop Button Switch
Power Handle 15 Steering Tilt & Telescopic Module
Memory 10 Power Trunk Lid Control Module, Relax Module Driver/Passenger Door Module, Rear Door Module LH/RH, Passenger Door Lamp, Passenger Door Mood Lamp, Rear Door Lamp LH/RH, Rear Door Mood Lamp LH/RH, Instrument Cluster, Driver IMS Control Module, BCM, Analogue Clock, LCD Panel Switch, A/C Control Module, Data Link Connector
TPMS 10 Tire Pressure Monitoring Module
ACTIVE H/REST 10 Active Head Rest Sensor Module
CLUSTER 10 Instrument Cluster, Head-Up Display
STOP LAMP 10 Stop Lamp Switch, Smart Key Control Module
SHIFT LEVER (B+) 10 Sport Mode Switch
MULTI MEDIA 15 A/V & Navigation Head Unit, Front Monitor, Split Unit, MTS Module, Front DIS Switch, Rear Monitor LH/RH, Rear Console Switch, Rear Audio Switch
BCM 10 BCM
IG1 30 E/R Junction Box (Fuse – B/UP LAMP, ESC, EHPS, AFLS, INJECTOR (IG1), CRUISE (IG1), ECU (IG1), TCU)
1 MODULE 10 Head-Up Display, Rain Sensor, Rear Power Seat Switch LH
F/LID 10 Fuel Filler Door Switch, Front Console Switch
FOLD’G MIRR 10 Driver/Passenger Door Module
A/BAG 15 SRS Control Module, Driver/Passenger Pre-Safe Seat Belt, Center Facia Switch, PODS Module
4 MODULE 10 E/R Junction Box (FAM), Multifunction Switch, Driver/Passenger Door Module
ECS 15 ECS Control Module
AUDIO (IG1) 10 A/V & Navigation Head Unit, MTS Module
AFLS 10 Head Lamp LH/RH, Adaptive Front Lighting Module
O/S HDL DRV 15 Driver Power Door Latch, Driver Power Seat Switch, Driver Door Lamp, Driver Door Mood Lamp, Driver Smart Key Outside Handle
S/HEATER RR 15 Rear CCS Control Module LH, Rear Seat Warmer Module LH
2 MODULE 10 Power Trunk Lid Control Module, Electro Chromic Mirror,
A/T Console Switch
A/CON 10 A/C Control Module, AQS Sensor, Driver IMS Control Module Relax Module, Driver/Passenger CCS Control Module Driver/Passenger Seat Warmer Module, Rear CCS Control, Module LH/RH, Rear Seat Warmer Module LH/RH, Alternator Resistor (Alternator, Instrument Cluster, USB Jack, Rear Console Switch)
O/S HDL RR 15 Rear Power Door Latch LH, Rear Door Window Curtain LH, Rear Smart Key Outside Handle LH
3 MODULE 10 ECS Control Module, Front Console Switch, Crash Pad Switch, Blind Spot Detection Radar LH/RH Tire Pressure Monitoring Module, Stop Lamp Switch, Steering Tilt & Telescopic Module, LDWS Camera Module Electric Parking Brake Module, Front/Rear Parking Assist Sensor LH/RH Front/Rear Parking Assist Sensor LH/RH (Center)
DR LOCK DRV 10 Driver Door Module
S/HEATER DRV 15 Driver CCS Control Module, Driver Seat Warmer Module
DR LOCK PASS 15 Passenger Door Module
P/TRUNK 30 Power Trunk Lid Control Module
P/SEAT PASS 30 Relax Module
RH SAFETY
POWER WINDOW
30 Passenger Power Window Module, Rear Power Window Module RH
LH SAFETY
POWER WINDOW
30 Driver Power Window Module, Rear Power Window Module LH

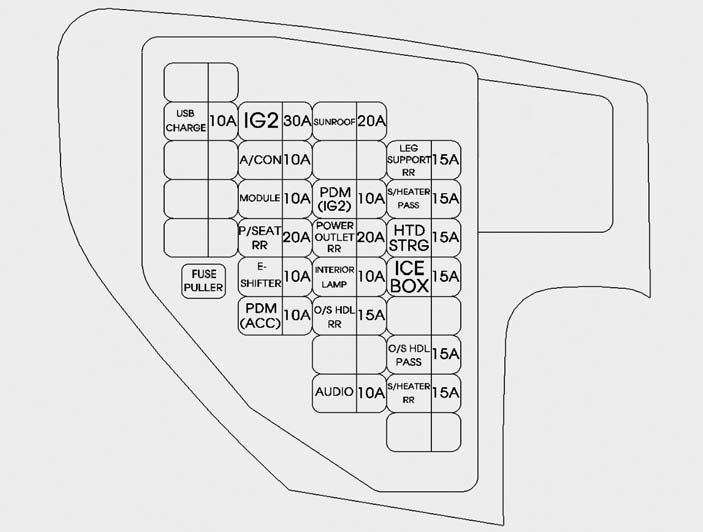

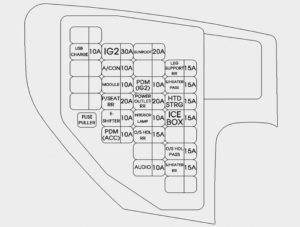

Instrument panel (Passenger’s side fuse panel)

Hyundai Centennial - fuse box diagram - instrument panel (passenger's side)
Hyundai Centennial – fuse box diagram – instrument panel (passenger’s side)
Fuse name Ampere rating [A] Protected component
USB CHARGE 10 USB Jack
IG2 30 E/R Junction Box Fuse (ECW 10A, WASHER 15A)
A/CON 10 E/R Junction Box (Blower Relay), A/C Control Module, Cluster Ion Gen, LCD Panel Switch
MODULE 10 Around View Module, Camera Module, Instrument panel LH(Instrument Cluster, Sunroof Module, Head-Up Display)
P/SEAT RR 20 Rear LH Power Seat Relay Box
E-SHIFTER 10 USB Jack
PDM(ACC) 10 BCM, Smart Key Control Module
SUNROOF 20 Sunroof Module,Sunroof Switch
PDM (IG2) 10 BCM, Smart Key Control Module
POWER
OUTLET RR
20 Rear Power Outlet (5:5 Seat),Rear Console Lamp (5:5 Seat), Rear Power Outlet #1/#2(6:4 Seat)
INTERIOR LAMP 10 E/R Junction Box (Power Outlet Relay FR), Front Room Lamp
O/S HDL RR 15 Rear Power Door Latch RH, Rear Door Window Curtain RH, Rear Smart Key Outside Handle RH
AUDIO 10 Analogue Clock, Split Unit, Front Monitor, Around View Module, Camera Module, MTS Module, Front DIS Switch, AMP, Rear Monitor LH/RH, Rear Audio Switch, Rear Console Switch
LEG SUPPORT RR 15 Rear RH Power Seat Relay Box
S/HEATER PASS 15 Passenger CCS Control Module, Passenger Seat Warmer Module (W/O CCS)
HTD STRG 15 Steering Wheel Heated
ICE BOX 15 Cool box
O/S HDL PASS 15 Passenger Power Door Latch,Passenger Power Seat Switch, Passenger Smart Key Outside Handle RH
S/HEATER RR 15 Rear CCS Control Module RH, Rear Seat Warmer Module RH (W/O CCS)

Engine compartment sub fuse panel

Hyundai Centennial - fuse box diagram - engine compartment (driver's side)
Hyundai Centennial – fuse box diagram – engine compartment (driver’s side)
Description Ampere rating [A] Protected component
ALT 200 Alternator, E/R Fuse & Relay Box (Fuse – I/P POWER RH, EHPS, C/FAN, PDM (ACC), ECS, TRUNK, AMP, H/LAMP WASHER, VACUUM PUMP, POWER OUTLET FRT)
I/P POWER LH 80 Smart Junction Box LH (Fuse – F1/F2/F3/F4/F8/F9/F12/F15/F17/F18/F22/F23/F29/F32/F33/F36/F40/F41/
F44/F45/F46/F47/F48, Leak Current Autocut Device)
I/P POWER RH 60 I/P Junction Box RH (Fuse – F2/F9/F12/F17/F20/F21/F25/F26)
C/FAN 70 C/FAN Relay
EHPS 80 EHPS Module
ESC 1 40 ESC Module, Multipurpose Check Connector
ESC 2 40 ESC Module, Multipurpose Check Connector
PDM (IG1) 40 PDM (IG1) Relay
PDM (IG2) 30 PDM (IG2) Relay
P/SEAT (DRV) 30 Driver IMS Control Module, Driver Lumbar Support Valve
ECS 40 ECS Relay
AMP 30 AMP
PDM (ACC) 30 PDM (ACC) Relay
STOP LAMP 15 Stop Signal Electronic Module
B/UP LAMP 10 B/UP LAMP Relay
H/LAMP WASHER 20 H/LAMP WASHER Relay
VACUUM PUMP 20 VACUUM PUMP Relay
POWER OUTLET FRT 25 POWER OUTLET FRT Relay
TRUNK 10 TRUNK Relay

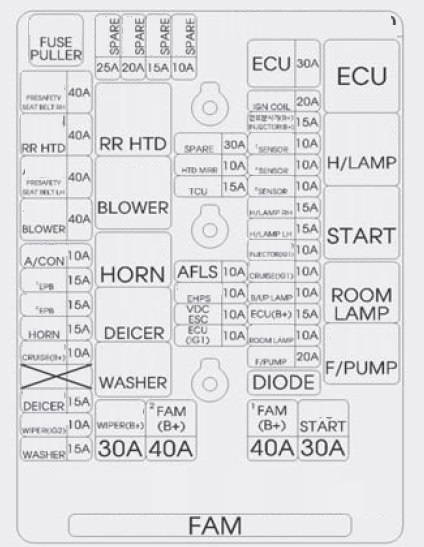

Engine compartment main fuse panel

Hyundai Centennial - fuse box diagram - engine compartment (passenger's side)
Hyundai Centennial – fuse box diagram – engine compartment (passenger’s side)
Description Ampere rating [A] Protected component
WIPER (B+) 30 Electronic Control Wiper Module
FAM 2 (B+) 40 FAM
FAM 1 (B+) 40 FAM
START 30 Start Relay
WASHER 15 Washer Relay
WIPER (IG2) 10 Electronic Control Wiper Module
DEICER 15 Deicer Relay
CRUISE (B+) 10 H/Lamp Relay, Smart Cruise Control Module
HORN 15 Horn Relay
EPB 2 15 Electric Parking Brake Module
EPB 1 15 Electric Parking Brake Module
A/CON 10 A/C Control Module
BLOWER 40 Blower Relay
PRESAFETY SEAT BELT LH 40 Driver Pre-Safe Seat Belt
RR HTD 40 RR HTD Relay
PRESAFETY SEAT BELT RH 40 Passenger Pre-Safe Seat Belt
ECU (IG1) 10 ECM, Alternator (G8BE)
ESC 10 ESC Module, E/R Fuse & Relay Box (Multipurpose Check Connector)
EHPS 10 EHPS Module
AFLS 10 Head Lamp LH/RH
TCU 15 TCM, Transmission Range Switch, Transmission Park Position Sensor & Switch
HTD MIRR 10 Driver/Passenger Power Outside Mirror
F/PUMP 20 F/Pump Relay
ROOM LAMP 10 Room Lamp Relay
ECU (B+) 15 ECM/TCM, Injector Drive Box (G6DJ)
B/UP LAMP 10 Alternator (G6DJ), E/R Fuse & Relay Box (Vacuum Pump Relay (G6DJ), B/Up Lamp Relay, P/N Relay), Steering Angle Sensor, Brake Vacuum Switch (G6DJ)
CRUISE (IG1) 10 Smart Cruise Control Module
INJECTOR (IG1) 10 Injector Drive Box
H/LAMP LH 15 Head Lamp LH
H/LAMP RH 15 Head Lamp RH
SENSOR 3 10 ECM, F/Pump Relay, Camshaft Position Sensor (BANK1/BANK2) (Intake/Exhaust) (G8BE)
SENSOR 2 10 ECM (G6DJ), Variable Intake Solenoid Valve (G6DJ), Canister Purge Solenoid Valve (G6DJ), Oil Control Valve #1 ~ #4 E/R Fuse & Relay Box (C/Fan Relay), Purge Control Solenoid Valve (G8BE)
SENSOR 1 10 ECM, Oxygen Sensor #1 ~ #4
INJECTOR (B+) 15 Injector Drive Box
IGN COIL 20 Condenser #1/#2, Ignition Coil #1 ~ #6 (G6DJ), Ignition Coil #1 ~ #8 (G8BE)
ECU 30 ECU Relay

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
