Isuzu Rodeo (1997) – fuse box diagram

Isuzu Rodeo (1997) – fuse box diagram

Year of production: 1997

Fuse box diagram

Isuzu Rodeo – fuse box diagram
Isuzu Rodeo – fuse box diagram
Number Fuse name A Function
EB-1 HAZARD 15 Hazard warning light, flasher unit
EB-2 HORN 10 Horn
EB-3
EB-4 BLOWER 20 Blower motor
EB-5 AIR CON. 10 Compressor control
EB-6 CHARGE 10 Charge warning light
EB-7
EB-8 H/LAMP -LH 10 Left headlight, high beam indicator light
EB-9 H/LAMP -RH 10 Right headlight
EB-10 O2 SENSOR 10 Oxygen sensor
EB-11 FUEL PUMP 1 20 Engine control
EB-12 ECM 15 Engine control
EB-13
EB-14 FUEL PUMP 2 20 fuel pump
EB-15 IGN 60 Engine control
EB-16 MAIN 100 Power distribution
EB-17 CONd. FAN 30 Condenser fan
EB-18
EB-19



Diode Usage
Diode Box A Hatch gate, charge warning light (2.6l), staner relay (3 .2L)
Diode Box B ECM relay (2.6L)
Diode Box C Fuel pump relay (2.6l)

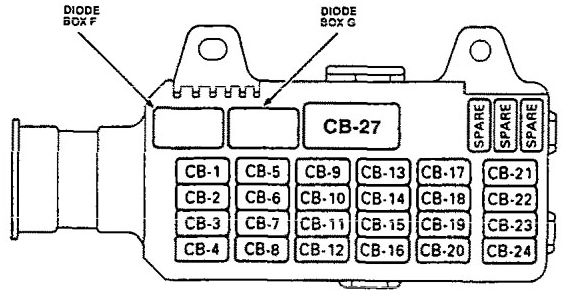

Isuzu Rodeo - fuse box diagram
Isuzu Rodeo – fuse box diagram
Number Fuse name A Function
CB-1 STARTER 10 Starting system
CB-2
CB-3 ENGINE DEVICE 15 Charging system, engine control, A/T shift indicator
CB-4 IG COIL 15 lgnition system
CB-5 TAIL-ILLUMI 15 Taillights
CB-6
CB-7 METER 15 Gauges, indicators. vehicle speed sensor, seat belt warning, interlock system
CB-8
CB-9 ROOM 10 Dome, luggage room, courtesy and spot lights, sound system
CB-10
CB-11 FRONT WIPER 20 Wiper/Washer
CB-12 ELEC. IG 10 Cruise control
CB-13 STOP 15 Brake lights, automatic transmission control, rear wheel anti-lock brake system, crusie control
CB-14 DOOR LOCK 20 Power windows
CB-15 BACK UP, TURN 15 Back up lights, hazard warning lights, power windows, mirror defoggers
CB-16 REAR WIPER 10 Rear wiper/washer
CB-17 RR DEF NO.1 15 Rear defoggef, hatch gate glass release
CB-18 RR DEF NO.2 15 Hatch gate glass release
CB-19 AUDIO 15 Sound system
CB-20 CIGAR 15 Cigarette lighter
CB-21 SRS NO.1 10 Supplemental restraint system (SRS)
CB-22 SRS NO.2 10 Supplemental restraint system (SRS)
CB-23 RWAL 20 Rear wheel anti-lock brake system
CB-24
CB-27 POWER WINDOW 30 Power windows



Diode Usage
Diode Box F Dome light
Diode Box G Courtesy light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
