Year of  production: 2002, 2003, 2004, 2005, 2006, 2007

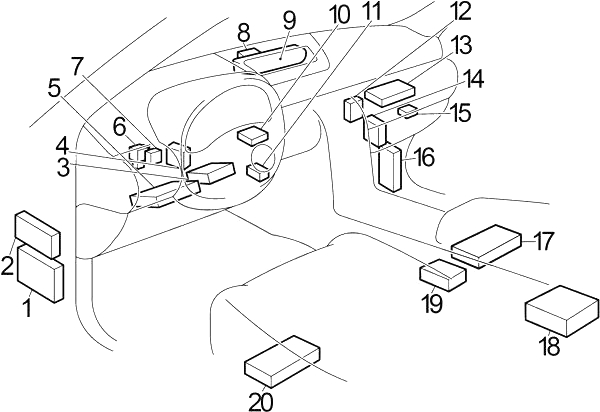

Passenger Compartment

Infiniti G35 - fuse box diagram - passenger compartment
Infiniti G35 – fuse box diagram – passenger compartment
  1. Body Control Module (BCM)
  2. Fuse Box
  3. ’05-’07: Automatic Drive Positioner Control Unit
  4. All-Wheel Drive (AWD) Control Unit
  5. ’02-’04: VDC/TCS/ABS Control Unit
  6. Heated Seat Relay
  7. Circuit Breaker
  8. GPS Antenna
  9. Dispaly and A/C Auto Amplifier
  10. Nissan Anti Theft System (NATS) Antenna Amplifier
  11. ’06-’07: Steering Lock Unit
  12. ’06-’07: Intelligent Key Unit
  13. Navi Control Unit
  14. Engine Control Module (ECM)
  15. ’05-’07: Remote Keyless Entry Receiver
  16. ’02-’04:Transmission Control Module (TCM)
    ’05-’07: VDC/TCS/ABS Control Unit
  17. Coupe: Seat Control Unit (Passenger Side)
  18. Air Bag Diagnosis Sensor Unit
  19. Yaw Rate/Side G Sensor
  20. Seat Control Unit (Driver Side)

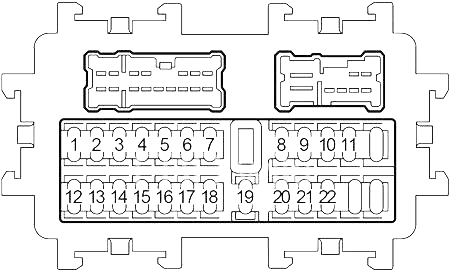

Passenger Compartment Fuse Box

Infiniti G35 - fuse box diagram - passenger compartment fuse box
Infiniti G35 – fuse box diagram – passenger compartment fuse box
No. A
Circuit Protected
1 10 Fuel Injectors, Body Control Module (BCM): (Power Window, Sunroof, Remote Keyless Entry System, Intelligent Key System, Nissan Anti Theft System (NATS) Antenna Amplifier, Telephone, Warning Chime), Engine Control Module (ECM), Combination Switch, Headlamp, Daytime Light System, Auto Light System, Turn Signal and Hazard Warning Lamps, Interior Room Lamp, Map Lamp, Vanity Mirror Lamps, Trunk Room Lamp, Ignition Keyhole Illumination, Step Lamps, Trunk Room Lamp Switch, Driver/Passenger Side Door Switch, Door Lock and Unlock Switch, Door Key Cylinder Switch, Automatic Drive Positioner Control Unit, Tilt & Telescopic System
2  –
3  –
4  –
5 15 Power Socket
6 10 Audio Unit, Display and A/C Auto Amplifier, Satellite Radio Tuner, Navi Control Unit, Combination Meter, Navi Switch, Display Unit, Up and Down Unit (Display), TEL Adapter Unit, Body Control Module (BCM), Intelligent Key Unit, Theft Warning System, Door Mirror Remote Control Switch, Combination Switch, Headlamp, Daytime Light System, Auto Light System, Turn Signal and Hazard Warning Lamps, Automatic Drive Positioner Control Unit, Tilt & Telescopic System
7 15 Cigarette Lighter
8 10 Door Mirror Defogger
9 10 Driver Seat Control Unit, Daytime Light System
10 15 Blower Motor
11 15 Blower Motor
12 10 A/C Compressor (ECV), Display and A/C Auto Amplifier, A/C and Audio Controller, Navi Control Unit, Up and Down Unit (Display), TEL Adapter Unit, Engine Control Module (ECM), Intelligent Key Unit, Compass, Automatic Speed Control Device (ASCD) Brake Switch, Automatic Speed Control Device (ASCD) Clutch Switch (M/T), Rear Window Defogger Relay, Heated Seat Relay, Shift Lock Relay
13 10 Air Bag Diagnosis Sensor, Occupant Classification System Control Unit
14 10 Combination Meter, Auto Anti-Dazzling Inside Mirror
15 15 ’02-’04: Air Fuel Ratio Sensors, Heated Oxygen Sensors
16  –
17 15 Sedan (’02-’03): Woofer
18 10 ’05-’07: Body Control Module (BCM): (Power Window, Power Door Lock, Sunroof, Theft Warning System, Power Seat, Telephone, Remote Keyless Entry System, Intelligent Key System, Trunk Lid Opener, Nissan Anti Theft System (NATS) Antenna Amplifier, Warning Chime), Combination Switch, Headlamp, Daytime Light System, Auto Light System, Turn Signal and Hazard Warning Lamps, Interior Room Lamp, Map Lamp, Vanity Mirror Lamps, Trunk Room Lamp, Ignition Keyhole Illumination, Step Lamps, Trunk Room Lamp Switch, Driver/Passenger Side Door Switch, Door Locj and Umlock Switch, Door Key Cylinder Switch, Automatic Drive Positioner Control Unit, Driver Seat Control Unit, Seat Memory Switch, Power Walk-In Relay, Tilt & Telescopic System, Shift Lock Relay
19 10 Combination Meter, Display and A/C Auto Amplifier, Intelligent Key Warning Buzzer, Auto Anti-Dazzling Inside Mirror
20 10 Stop Lamp Switch, VDC/TCS/ABS Control Unit, Intelligent Key Unit, Engine Control Module (ECM), Rear Active Steer (RAS) Control Unit
21 10 Key Switch, Body Control Module (BCM)
22 10 Sedan (’04-’06): All-Wheel Drive (AWD) Control Module
Infiniti G35 - fuse box diagram - passenger compartment fuse box
Infiniti G35 – fuse box diagram – passenger compartment fuse box

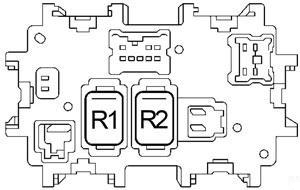

No.
Relay
R1 Ignition
R2 Accessory

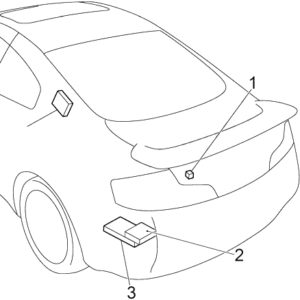

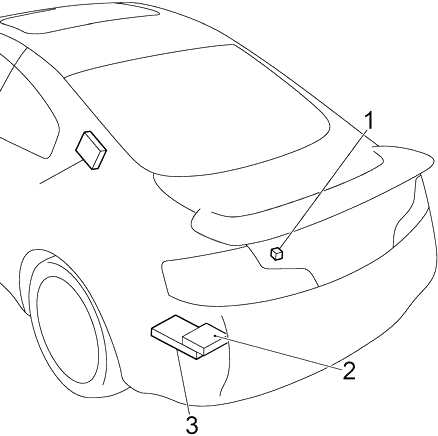

Coupe

Infiniti G35 - fuse box diagram - coupe
Infiniti G35 – fuse box diagram – coupe

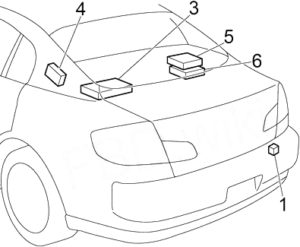

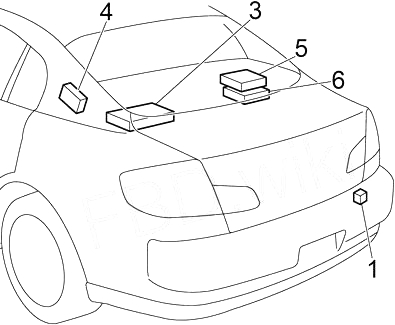

Sedan

Infiniti G35 - fuse box diagram - sedan
Infiniti G35 – fuse box diagram – sedan
  1. Rear Window Defogger Relay
  2. Coupe: Rear Active Steer (RAS) Control Unit
  3. BOSE Amplifier
  4. Antenna Amplifier
  5. Sedan: Satellite Radio Tuner
  6. Sedan: TEL Adapter Unit

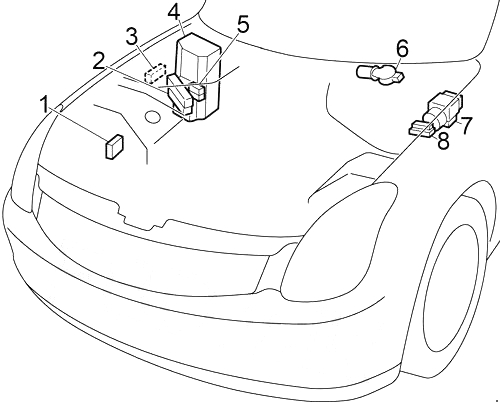

Engine Compartment

Infiniti G35 - fuse box diagram - engine compartment
Infiniti G35 – fuse box diagram – engine compartment
  1. Daytime Light Control Unit
  2. Fuse Box No.1
  3. Relay Box
  4. Fuse Box No.2
  5. Fusible Link Block
  6. Front Wiper Motor
  7. VDC Actuator
  8. VDC Relay Box

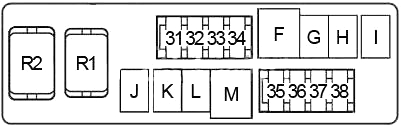

Engine Compartment Fuse Box No. 1

Infiniti G35 - fuse box diagram - engine compartment fuse box no. 1
Infiniti G35 – fuse box diagram – engine compartment fuse box no. 1
No.
A
Circuit Protected
31 20 Coupe (’06-’07): Rear Active Steer (RAS) Motor Relay, Rear Active Steer (RAS) Control Unit
32 10 ’05-’07: Transmission Control Module (TCM)
33 15 ’05-’07: Intelligent Key Unit, Key Switch and Ignition Knob Switch, Body Control Module (BCM), Steering Lock Unit
34 15 Engine Control Module (ECM), Data Link Connector
35 15 Horn Relay
36 10 Alternator
37 15 Audio Unit, BOSE Amplifier, Satellite Radio Tuner, Navi Control Unit, Display Unit, TEL Adapter Unit
38 10 Heated Seat Relay
F 50 Body Control Module (BCM): (Power Window, Power Door Lock, Sunroof, Power Seat, Theft Warning System, Automatic Drive Positioner Control Unit, Telephone, Warning Chime, Remote Keyless Entry System, Intelligent Key System, Trunk Lid Opener, Nissan Anti Theft System (NATS) Antenna Amplifier), Combination Switch, Headlamp, Daytime Light System, Auto Light System, Turn Signal and Hazard Warning Lamps, Interior Room Lamp, Map Lamp, Vanity Mirror Lamps, Trunk Room Lamp, Ignition Keyhole Illumination, Step Lamps, Trunk Room Lamp Switch, Driver/Passenger Side Door Switch, Door Locj and Umlock Switch, Door Key Cylinder Switch, Tilt & Telescopic System
G  –
H 40 Cooling Fan Relay No.1, Cooling Fan Relay No.3
I 40 Cooling Fan Relay No.1, Cooling Fan Relay No.3
J 50 VDC/TCS/ABS Motor Relay
K 30 VDC/TCS/ABS Solenoid Valve Relay
L  –
M 40 Ignition Switch, Starter Relay
Relay
R1 Back-Up Lamp
R2 Horn

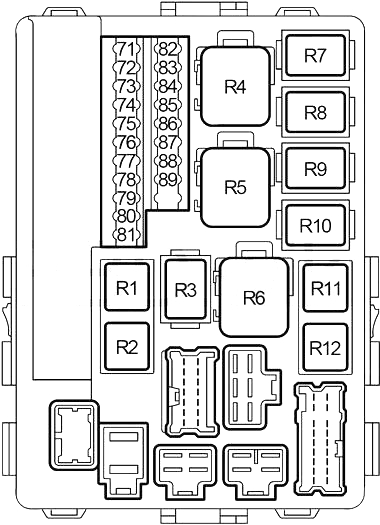

Engine Compartment Fuse Box No.2 (Type No.1 (2002-2004))

Infiniti G35 - fuse box diagram - engine compartment fuse box no. 2
Infiniti G35 – fuse box diagram – engine compartment fuse box no. 2
No.
A
Circuit Protected
71 10 Back-Up Lamp Relay (A/T), Transmission Control Module (TCM (A/T)), Back-Up Lamp Switch (M/T), Navi Control Unit, Starting System
72 15 Front Fog Lamp Relay
73 15 Ignition Relay, IPDM CPU
74 20 Front Wiper Relay
75 10 Tail Lamp Relay (Front/Rear Side Marker Lamps, Parking Lamps, Tail Lamps, License Plate Lamps, Combination Meter, Illumination: (Navi Switch, Navi Control Unit, Display and A/C Auto Amplifier, A/C and AudioController, Audio Unit, Microphone VDC Off Switch, Automatic Transmission, Hazard Switch, Ashtray, Cigarette Lighter Socket, Heated Seat Switch, Steering Wheel Audio Control Switch, ASCD Steering Switch, Trunk Lid Opener Switch, Illumination Control Switch, Upper Glove Box Lamp, Glove Box Lamp)), IPDM CPU
76 15 Throttle Control Motor Relay
77 20 Rear Window Defogger Relay
78 20 Rear Window Defogger Relay
79 10 A/C Relay
80 10 Front Wiper Relay, Front Wiper High Relay, IPDM CPU
81 15 Fuel Pump Relay
82 15 Engine Control Module (ECM) Relay (Ignition Coils, Condenser, Intake Valve Timing Control Solenoid Valve, Exhaust Valve Timing Control Magnet Retarder, Mass Air Flow Sensor, Crankshaft Position Sensor, Camshaft Position Sensor, EVAP Canister Purge Volume Control Solenoid Valve, EVAP Canister Vent Control Valve, Exhaust Valve Timing Control Position Sensor)
83 15 Right Headlamp (Low Beam)
84 15 Left Headlamp (Low Beam)
85 10 Left Headlamp (High Beam)
86 10 Right Headlamp (High Beam)
87 10 Front Washer Pump, Combination Switch
88 10 VDC/TCS/ABS Control Unit, Daytime Light System
89 10 Data Link Connector, Clutch Interlock Switch, Starter Relay
Relay
R1 Fuel Pump
R2 A/C
R3 Ignition
R4 Cooling Fan (No.3)
R5 Cooling Fan (No.2)
R6 Cooling Fan (No.1)
R7 Headlamp (Low Beam)
R8 Headlamp (High Beam)
R9 Front Fog Lamp
R10 Starter
R11 Throttle Control Motor
R12 Engine Control Module (ECM)

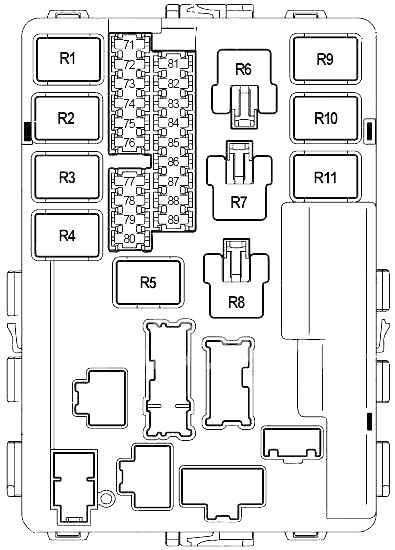

Engine Compartment Fuse Box No.2 (Type No.2 (2005-2007))

Infiniti G35 - fuse box diagram - engine compartment fuse box no. 2
Infiniti G35 – fuse box diagram – engine compartment fuse box no. 2
No.
A
Circuit Protected
71 10 Tail Lamp Relay (Front/Rear Side Marker Lamps, Parking Lamps, Tail Lamps, License Plate Lamps, Combination Meter, Illumination: (Navi Switch, Navi Control Unit, Display and A/C Auto Amplifier, A/C and AudioController, Audio Unit, Microphone VDC Off Switch, Automatic Transmission, Hazard Switch, Ashtray, Cigarette Lighter Socket, Heated Seat Switch, Steering Wheel Audio Control Switch, ASCD Steering Switch, Trunk Lid Opener Switch, Illumination Control Switch, Upper Glove Box Lamp, Glove Box Lamp)), IPDM CPU
72 10 Right Headlamp (High Beam)
73 20 Front Wiper Relay
30 Coupe (’07): Front Wiper Relay
74 10 Left Headlamp (High Beam)
75 20 Rear Window Defogger Relay
76 15 Right Headlamp (Low Beam)
77 15 Engine Control Module (ECM) Relay (Ignition Coils, Condenser, Intake Valve Timing Control Solenoid Valve, Exhaust Valve Timing Control Magnet Retarder, Mass Air Flow Sensor, Crankshaft Position Sensor, Camshaft Position Sensor, EVAP Canister Purge Volume Control Solenoid Valve, EVAP Canister Vent Control Valve, Exhaust Valve Timing Control Position Sensor), Nissan Anti Theft System (NATS) Antenna Amplifier
78 15 Ignition Relay, IPDM CPU
79 10 A/C Relay
80 20 Rear Window Defogger Relay
81 15 Fuel Pump Relay
82 10 VDC/TCS/ABS Control Unit, Rear Active Steer (RAS) Control Unit
83 10 Back-Up Lamp Relay (A/T), Transmission Control Module (TCM (A/T)), Back-Up Lamp Switch (M/T), Navi Control Unit
84 10 Front Washer Pump, Combination Switch
85 15 Air Fuel Ratio Sensors, Heated Oxygen Sensors
86 15 Left Headlamp (Low Beam)
87 15 Throttle Control Motor Relay
88 15 Front Fog Lamp Relay
89 10 Data Link Connector, Clutch Interlock Switch, Starter Relay
Relay
R1 Engine Control Module (ECM)
R2 Headlamp (High Beam)
R3 Headlamp (Low Beam)
R4 Starter
R5 Ignition
R6 Cooling Fan (No.3)
R7 Cooling Fan (No.1)
R8 Cooling Fan (No.2)
R9 Throttle Control Motor
R10 Fuel Pump
R11 Front Fog Lamp

Engine Compartment Relay Box

Infiniti G35-fuse box diagram - engine compartment relay box
Infiniti G35-fuse box diagram – engine compartment relay box
No.
Relay
R1 Daytime Light (No.1)
R2 Passenger Side Select Unlock
R3 Daytime Light (No.2)

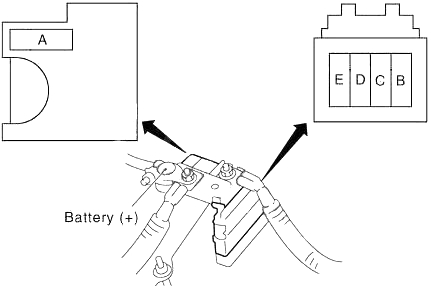

Fusible Link Block

Infiniti G35 - fuse box diagram - fusible link block
Infiniti G35 – fuse box diagram – fusible link block
No.
A
Circuit Protected
A 120 Fuse: “B”, “C”
B 100 Fuse: “31”, “32”, “33”, “34”, “35”, “36”, “37”, “38”, “F”, “H”, “I”, “J”, “K”, “M”
C 80 ’02-’04: Headlamp High Relay (Fuse: “85”, “86”), Headlamp Low Relay (Fuse: “83”, “84”), Fuse: “72”, “74”, “75”, “76”, “77”, “79”
80 ’05-’07: Headlamp High Relay (Fuse: “72”, “74”), Headlamp Low Relay (Fuse: “76”, “86”), Fuse: “71”, “73”, “75”, “87”, “88”
D 60 Accessory Relay (Fuse: “5”, “6”, “7”), Blower Relay (Fuse: “10”, “11”), Fuse: “18”, “19”, “20”, “21”, “22”
E 80 Ignition Relay (Fuse: “71”, “80”, “81”, “87”, “88”, “89”), Fuse: “73”, “78”, “82”

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
