Infiniti I30 (1994 – 2004) – fuse box diagram

Infiniti I30 (1994 – 2004) – fuse box diagram

Year of  production: 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002. 2003, 2004

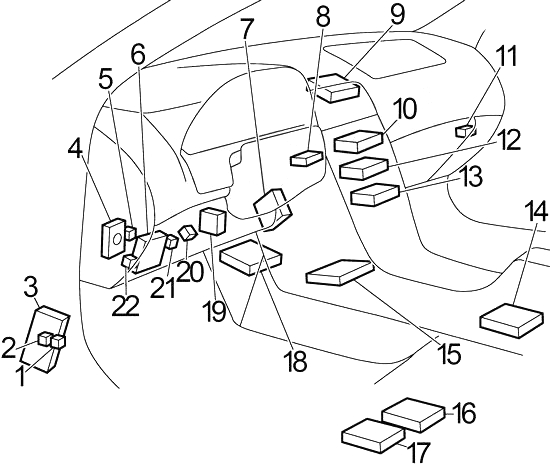

Passenger Compartment

Infiniti I30 - fuse box diagram - passenger compartment
Infiniti I30 – fuse box diagram – passenger compartment
  1. Fuel Pump Relay
  2. Rear Window Defogger Relay
  3. ’00-’01: ABS Control Unit or ABS/TCS Control Unit
  4. Super Multiple Junction (SMJ)
  5. Ciruit Breaker
  6. Fuse Box
  7. Smart Entrance Control Unit
  8. Nissan Anti Theft System (NATS) Immobilizer
  9. ’01-’04: Monitor
  10. ’01-’04: Navi Control Unit
  11. Blower Motor Relay
  12. Audio Unit
  13. A/C Auto Amplifier
  14. Air Bag Diagnosis Sensor Unit
  15. Transmission Control Module (TCM)
  16. Seat Control Unit / Memory Seat Unit
  17. ’02-’04: VDC/TCS/ABS Control Unit
  18. Engine Control Module (ECM)
  19. Headlamp Battery Saver Control Unit
  20. Combination Flasher Unit
  21. ’00: Power Window Relay
  22. ’01-’04: Power Window Rela

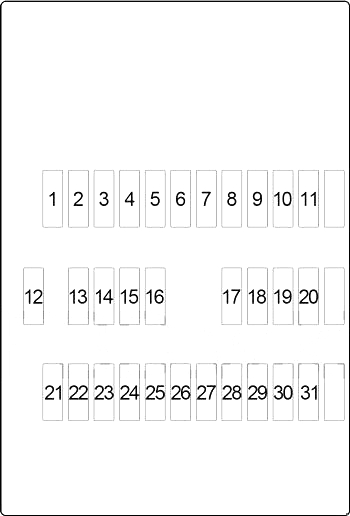

Passenger Compartment Fuse Box

Infiniti I30 - fuse box diagram - passenger compartment fuse box
Infiniti I30 – fuse box diagram – passenger compartment fuse box
No. A
Circuit Protected
1 10 Smart Entrance Control Unit, Auto Light Sensor, Lighting Switch, Turn Signal and Hazard Warning Lamps, Combination Meter, Audio Unit, CD Auto Changer, Steering Switch, Antenna Amplifier, Door Mirror Remote Control Switch, Telephone, Remote Keyless Entry System, Theft Warning System, Navi Control Unit, Monitor
2 15 Stop Lamp Switch, Automatic Speed Control Device (ASCD), Transmission Control Module (TCM), ABS
3 15 Trunk Lid Opener Actuator, Fuel Lid Opener Actuator
4 20 Rear Window Defogger Relay
5 15 Hazard Switch (Combination Flasher)
6 15 Front Fog Lamp Relay
7 20 Rear Window Defogger Relay, A/C Auto Amplifier, Door Mirror Defogger Relay
8 15 Air Fuel Ratio Sensors, Heated Oxygen Sensors
9 10 Front Heated Seats
10 10 Smart Entrance Control Unit, Heated Steering Relay, Auto Light Sensor, Lighting Switch, Turn Signal and Hazard Warning Lamps, Interior Lamp, Spot Lamp, Vanity Mirror Lamps, Trunk Room Lamp, Ignition Key Hole Illumination, Front Step Lamps, Front Power Window Switch, Warning Chime, Rear Window Defogger Relay, A/C Auto Amplifier, Sunroof, Telephone, Automatic Drive Positioner, Power Window, Remote Keyless Entry System, Theft Warning System, Infiniti Vehicle Immobilizer System (IVIS), Navi Control Unit
11 10 Transmission Control Module (TCM), Speed Sensor, A/T Fluid Temperature Sensor, Powertrain Revolution Sensor
12 10 Combination Meter, Clock, Telephone, Automatic Drive Positioner, Memory Seat Switch, Theft Warning System, Infiniti Vehicle Immobilizer System (IVIS)
13 10 Smart Entrance Control Unit, Heated Steering Switch, Auto Light Sensor, Lighting Switch, Turn Signal and Hazard Warning Lamps, Interior Lamp, Spot Lamp, Vanity Mirror Lamps, Trunk Room Lamp, Ignition Key Hole Illumination, Front Step Lamps, Front Power Window Switch, Key Switch, Warning Chime, Door Mirror Defogger Relay, Sunroof, Automatic Drive Positioner, Power Window, Power Door Lock, Remote Keyless Entry System, Theft Warning System, Infiniti Vehicle Immobilizer System (IVIS)
14  –
15  –
16 15 Power Socket
17 10 Injectors, Fuel Pump Relay
18 10 Air Bag Diagnosis Sensor Unit
19 10 Rear Heated Seats
20 15 Cooling Fan, Start Signal, EVAP Canister Vent Control Valve, Vacuum Cut Valve Baypass Valve, Variable Induction Air Control System, Infiniti Vehicle Immobilizer System (IVIS)
21 10 Daytime Light Control Unit, Seat Control Unit, Start Signal
22 15 Cigarette Lighter
23 10 Rear Sunshade Unit
24  –
25 20 Front Wiper Motor, Front Washer Motor, Front Wiper Switch
26 10 Hazard Switch (Combination Flasher), Cornering Lamp Relay
27  –
28 10 Daytime Light Control Unit, A/C Auto Amplifier
29 15 Fuel Pump Relay, Fuel Pump Control Module (FPCM)
30 10 Combination Meter, Daytime Light Control Unit, Alternator, Park/Neutral Position Switch (Back-Up Lamps), Compass, Auto Anti-Dazzling Inside Mirror, Automatic Drive Positioner, Navi Control Unit
31 10 VDC/TCS/ABS



Infiniti I30 - fuse box diagram - passenger compartment relay box
Infiniti I30 – fuse box diagram – passenger compartment relay box
No.
Relay
R1 Power Socket
R2 Ignition
R3 Accessory

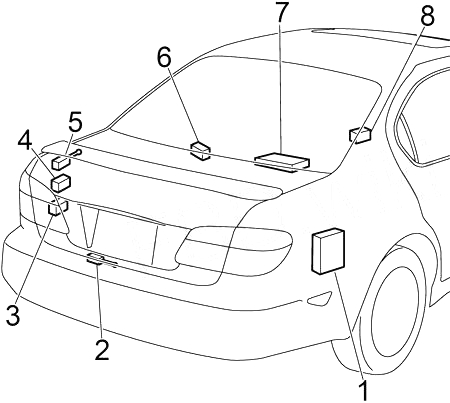

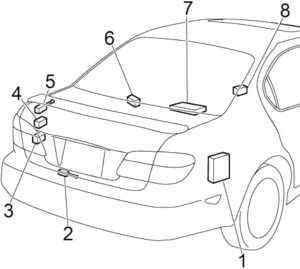

Infiniti I30 - fuse box diagram
Infiniti I30 – fuse box diagram
  1. ’00-’01: Infiniti Communicator (IVCS) Unit
  2. Trunk Lid Opener Actuator
  3. ’00: Dropping Resistor
  4. ’00: Fuel Pump Control Module (FPCM)
  5. Fuel Lid Opener Actuator
  6. Rear Sunshade Unit
  7. BOSE Amplifier

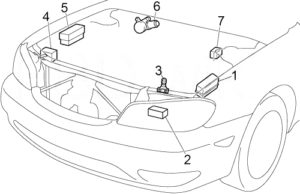

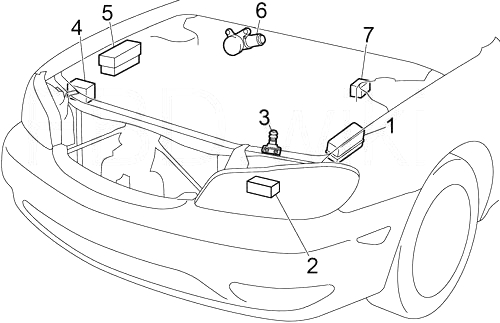

Engine Compartment

Infiniti I30 - fuse box diagram - engine compartment
Infiniti I30 – fuse box diagram – engine compartment
  1. Fuse Box
  2. Relay Box No.2
  3. Hood Switch
  4. Daytime Light Control Unit
  5. Relay Box No.1
  6. Front Wiper Motor
  7. ABS/TCS Actuator

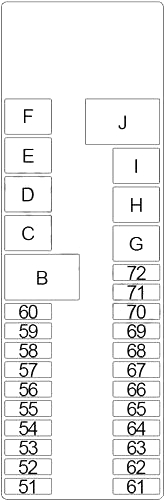

Engine Compartment Fuse Box

Infiniti I30 - fuse box diagram - engine compartment fuse box
Infiniti I30 – fuse box diagram – engine compartment fuse box
No.
A
Circuit Protected
51 15 Blower Motor
52 15 Blower Motor
53  –
54 20 Left Headlamp (Low Beam), Smart Entrance Control Unit, Front Fog Lamp Relay, Front Fog Lamp Switch
55 20 Right Headlamp (Low Beam), Smart Entrance Control Unit
56 15 Audio Unit, BOSE Amplifier, CD Auto Changer, Steering Switch, Navi Control Unit, Monitor, Infiniti Communicator (IVCS)
57 10 Horn Relay, Infiniti Communicator (IVCS), Theft Warning System, Automatic Speed Control Device (ASCD), Multi-Remote Control
58 15 Engine Control Module (ECM), Ignition Coils, EVAP Canister Purge Volume Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve
59 15 Engine Control Module (ECM), Infiniti Vehicle Immobilizer System (IVIS), Mass Air Flow Sensor, Crankshaft Position Sensor, EVAP Canister Purge Volume Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve, Ignition Signal, Front Electronic Controlled Engine Mount, Rear Electronic Controlled Engine Mount, Camshaft Position Sensor
60 10 Tail Lamp Relay (Lighting Switch, Side Marker Lamps, Parking Lamps, Tail Lamps, License Lamps, Stop Lamps, Smart Entrance Control Unit, Cornering Lamp Relay, Glove Box Lamp, Warning Chime, Illumination Control Switch, Illumination: (Ashtray, Automatic Transmission Device, Clock, Audio Unit, Hazard Switch, Door Mirror Remote Control Switch, Heated Steering Switch, Navi Control Unit, Rear Sunshade Switch, TCS On/Off Switch, A/C Auto Amplifier, VDC Off Switch, Combination Meter))
61 10 Vehicle Security Horn Relay
62  –
63 15 Engine Control Module (ECM)
64  –
65  –
66 10 A/C Relay
67 15 Woofer
68 15 Left Headlamp (High Beam), Daytime Light Control Unit
69 15 Right Headlamp (High Beam), High Beam Indicator, Daytime Light Control Unit
70 10 Alternator
71  –
72 10 Heated Steering Relay, Heated Steering Switch
B 80 Accessory Relay (Fuse: “22”, “23”), Ignition Relay (Fuse: “9”, “9”, “10”, “11”), Blower Motor Relay (Fuse: “16”), Fuse: “12”, “13”
C 40 Ignition Switch
D 40 ABS/TCS
50 VDC/TCS/ABS
E 40 ABS/TCS
50 VDC/TCS/ABS
F  –
G 40 Cooling Fan
H 40 Cooling Fan
I 40 Circuit Breaker: (Power Window, Sunroof, Power Seat, Power Door Lock, Remote Keyless Entry System)
J 80 Ignition Relay (Fuse: “25”, “26”, “28”, “29”, “30”, “31”), Fuse: “2”, “3”, “4”, “5”, “6”, “7”

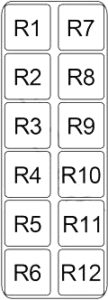

Engine Compartment Fuse Box No.1

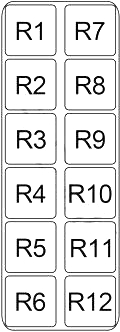

Infiniti I30 - fuse box diagram - engine compartment relay box no. 1
Infiniti I30 – fuse box diagram – engine compartment relay box no. 1
No.
Relay
R1 Door Mirror Defogger
R2 Tail Lamp
R3 Cornering Lamp
R4 Right Headlamp
R5 Horn
R6 Air Conditioner
R7 Front Fog Lamp
R8 ’01-’04: Vehicle Security Horn (No.2)
R9 Vehicle Security Horn
R10 ’00: Multi-Remote Control
R11 Left Headlamp
R12  –

Engine Compartment Relay Box No.2

Infiniti I30 - fuse box diagram - engine compartment relay box no. 2
Infiniti I30 – fuse box diagram – engine compartment relay box no. 2
No.
Relay
R1 Cooling Fan (No.3)
R2 Park/Neutral Position
R3 ’02-’04: Throtlle Control Motor
R4 ’00-’01: ABS Solenoid Valve
R5 Engine Control Module (ECM)
R6 Cooling Fan (No.2)
R7 ’00-’01: ABS Motor
R8 Cooling Fan (No.1)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
