Infiniti QX4 (JR50; 1997–2003) – Fuse Box Diagram and Relay Locations
Find fuse box diagrams, fuse assignments, relay locations and electrical component information for the first-generation Infiniti QX4 (JR50), covering the 1997–2003 model years.
This guide includes the passenger compartment fuse box, passenger compartment relay box, engine compartment fuse box, engine compartment relay box and major electrical control units. Fuse and relay assignments are organized by model year to help identify the correct configuration.
Use the searchable fuse tables below to locate fuses for the cigarette lighter, power sockets, fuel pump, headlights, windshield wipers, blower motor, heated seats and other electrical systems.
Vehicle Information
| Vehicle | Infiniti QX4 |
|---|---|
| Generation | First generation (JR50) |
| Model years | 1997–2003 |
| Body | 5-door luxury SUV |
| Platform | Nissan R50 |
| Drivetrain | Rear-wheel drive (2WD) / Four-wheel drive (4WD) |
| Engine | 3.3L VG33E V6 gasoline (1997–2000); 3.5L VQ35DE V6 gasoline (2001–2003) |
| Transmission | 4-speed automatic |
| Market | North America |
| Assembly | Japan |
Model-year note: The original reference includes diagrams and assignments labeled 1996–2003. The Infiniti QX4 was introduced for the 1997 model year in North America. Year-specific designations from the original reference have been preserved below.

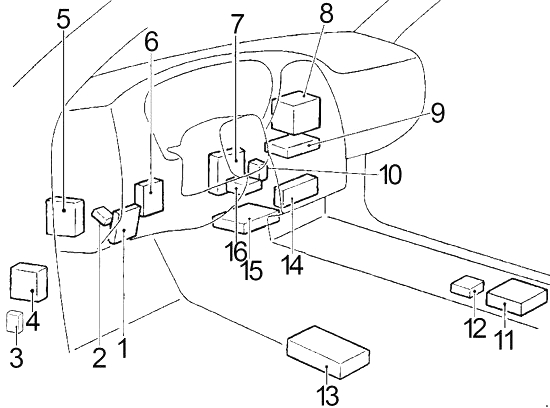

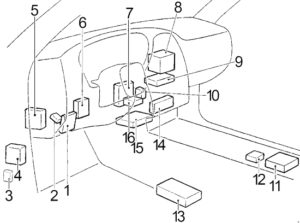

Passenger Compartment
The passenger compartment contains the interior fuse box and several electronic control modules, including the Engine Control Module (ECM), Transmission Control Module (TCM), Smart Entrance Control Unit, airbag diagnosis unit and other components.
The exact component arrangement depends on the model year and installed equipment.

| No. | Component / Description |
|---|---|
| 1 | Fuse Box |
| 2 | Combination Flasher Unit |
| 3 | 1997–1998: Audio Amplifier Relay (BOSE only); 1998–2001: Headlamp Battery Saver Control Unit |
| 4 | Automatic Speed Control Device (ASCD) Control Unit |
| 5 | Transmission Control Module (TCM) |
| 6 | Smart Entrance Control Unit |
| 7 | Engine Control Module (ECM) |
| 8 | 2001–2003: Display and Navigation Control Unit |
| 9 | 1999–2003: A/C Auto Amplifier (without navigation on 2001–2002 models) |
| 10 | 1999–2003: Nissan Anti Theft System (NATS) Immobilizer |
| 11 | Air Bag Diagnosis Sensor Unit |
| 12 | G Sensor |
| 13 | 2001–2003: Seat Control Unit (with Memory Seat) |
| 14 | 2001–2003: A/C Auto Amplifier (with Navigation) |
| 15 | 1996–1998: ABS Control Unit; 1999–2003: Transfer Control Unit (4WD) |
| 16 | 2001–2003: Steering Wheel Receiver Control Switch |

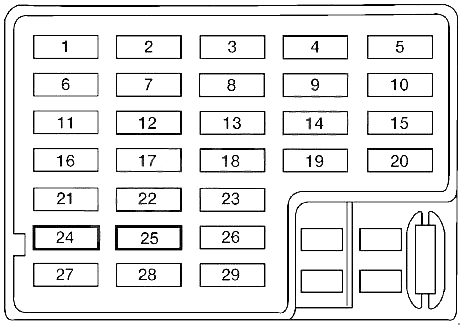

Passenger Compartment Fuse Box
The passenger compartment fuse box protects the blower motor, audio system, cigarette lighter, fuel pump, windshield wipers, heated seats, interior lighting and various electronic control systems.

| No. | Amps | Protected Circuit |
|---|---|---|
| 1 | 15A | Blower Motor |
| 2 | 15A | Blower Motor |
| 3 | 20A | Transfer Control Unit (4WD) |
| 4 | 15A | Audio Unit, Audio Amplifier Relay, Rear Speaker Amplifier, Aux Box, Display and Navi Control Unit |
| 5 | 10A | Glass Hatch Opener Actuator and Switch, Fuel Lid Opener Actuator and Switch |
| 6 | 7.5A | Automatic Air Conditioner |
| 7 | 7.5A | 1998–2003: ABS |
| 7 | 10A | 1997: Combination Meter |
| 8 | 10A | Combination Meter |
| 9 | 10A | Combination Meter, Compass and Thermometer, Door Mirror Remote Control Switch |
| 10 | 10A | Smart Entrance Control Unit, Xenon Headlights, Daytime Running Lights, Audio Unit, Aux Box, Steering Wheel Receiver Control Switch, Power Antenna, Theft Warning System, Display and Navi Control Unit |
| 11 | 7.5A | 1998–2003: Smart Entrance Control Unit, Xenon Headlights, Daytime Running Control Unit, Interior Lamps, Spot Lamps, Vanity Mirror Lamps, Luggage Room Lamp, Warning Chime, Rear Window Defogger Relay, Automatic Drive Positioner, Automatic Speed Control Device (ASCD) Brake Switch, Park/Neutral Position Relay, ASCD Control Unit, Intelligent Cruise Control (ICC) Unit, ICC Warning Chime, ICC Sensor, ICC Brake Hold Relay, Remote Keyless Entry System, Theft Warning System, Display and Navi Control Unit |
| 11 | 7.5A | 1997: Hazard Switch, Combination Flasher Unit |
| 12 | 7.5A | 1998–2003: Hazard Switch, Combination Flasher Unit |
| 12 | 7.5A | 1997: Automatic Transmission Shift Lock System, Air Conditioner, Starting System, Daytime Running Control Unit, Warning Chime, Rear Window Defogger Relay, Automatic Speed Control Device (ASCD) Brake Switch, ASCD Control Unit, Power Window, Sunroof, Theft Warning System |
| 13 | 15A | 1998–2003: Cigarette Lighter |
| 14 | 10A | 1998–2003: Stop Lamp Switch, Automatic Speed Control Device (ASCD) Control Unit, Intelligent Cruise Control (ICC) Brake Hold Relay, ABS |
| 14 | 15A | 1997: Hazard Switch, Combination Flasher Unit |
| 15 | 7.5A | 1997–1998: Interior Lamps, Spot Lamps, Vanity Mirror Lamps, Luggage Room Lamp, Transmission Control Module (TCM), HomeLink Universal Transceiver, Multi-Remote Control System |
| 16 | 10A | Intelligent Cruise Control (ICC) Unit, Transmission Control Module (TCM), Park/Neutral Position Relay and Switch, Throttle Position Switch, Engine Control Module (ECM), Nissan Anti Theft System (NATS) Immobilizer, Variable Induction Air Control System (VIAS), EVAP Canister Vent Control Valve, Intake Valve Timing Control Solenoid Valve, EVAP Canister Purge Volume Control Solenoid Valve, Swirl Control Valve Control Solenoid Valve, Vacuum Cut Valve Bypass Valve, Data Link Connector, Transfer Control Unit, Headlamp Battery Saver Control Unit |
| 17 | 15A | Fuel Pump Relay |
| 18 | 10A | 1998–2003: Park/Neutral Position Switch and Relay (Back-Up Lamps, Combination Meter, Display and Navi Control Unit), Transfer Control Unit |
| 18 | 10A | 1997: Heated Seat |
| 19 | 20A | Front Wiper Motor, Front Washer Motor, Front Wiper Switch, Intelligent Cruise Control (ICC) Unit |
| 20 | 15A | 1998–2003: Hazard Switch, Combination Flasher Unit |
| 20 | 10A | 1997: Stop Lamp Switch, Automatic Speed Control Device (ASCD) Control Unit, ABS |
| 21 | 10A | 2001–2003: Injectors |
| 21 | 10A | 1999–2000: Door Mirror Defogger |
| 21 | 10A | 1997: Transmission Control Module (TCM), EGRC Solenoid Valve, EGR, Idle Air Control Valve-Auxiliary Air Control (IACV-AAC) Valve, Data Link Connector |
| 22 | 10A | Air Bag Diagnosis Sensor Unit |
| 23 | — | Not used |
| 24 | 7.5A | Smart Entrance Control Unit, Xenon Headlights, Daytime Running Lights, Key Switch, Interior Lamps, Spot Lamps, Vanity Mirror Lamps, Luggage Room Lamp, Warning Chime, Clock, Power Antenna, Automatic Drive Positioner, Seat Memory Switch, Remote Keyless Entry System, Theft Warning System, HomeLink Universal Transceiver, Nissan Anti Theft System (NATS) Immobilizer, Park/Neutral Position Switch, Data Link Connector |
| 25 | 15A | 2001–2003: Heated Oxygen Sensors |
| 25 | 10A | 1997–2000: Heated Oxygen Sensors |
| 26 | 7.5A | Start Signal, Daytime Running Control Unit, Automatic Drive Positioner |
| 27 | 10A | 1997: Door Mirror, Compass and Thermometer |
| 28 | 15A | 2001–2003: Heated Seats (Front/Rear) |
| 28 | 10A | 1998–2000: Heated Seat |
| 28 | 7.5A | 1997: ABS |
| 29 | 10A | Rear Wiper Motor, Rear Wiper Switch, Rear Washer Motor, Power Socket Relay |
Important: Fuse positions 7, 11, 12, 14, 18, 20, 21, 25 and 28 have different assignments or amperage ratings depending on model year. Always verify the correct version before replacing a fuse.

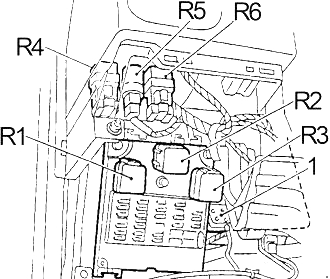

Passenger Compartment Relay Box
The passenger compartment relay box contains relays for the ignition, blower motor, accessory circuits, power windows and power socket.

Additional component: Smart Entrance Control Unit.
| No. | Relay / Component |
|---|---|
| R1 | Ignition |
| R2 | Blower |
| R3 | Accessory |
| R4 | 1999–2003: Power Socket |
| R4 | 1996–1998: Circuit Breaker (No. 2 – Power Seat) |
| R5 | Circuit Breaker |
| R6 | Power Window |

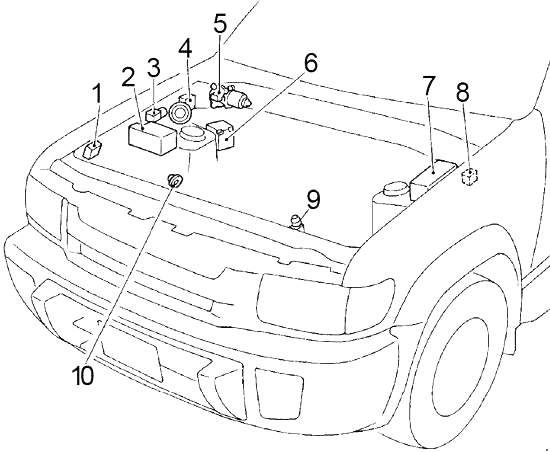

Engine Compartment
The engine compartment contains the main fuse box, relay box, ABS actuator, transfer motor relay and several other electrical components.

| No. | Component / Description |
|---|---|
| 1 | Daytime Light Control Unit |
| 2 | Fuse Box |
| 3 | Automatic Speed Control Device (ASCD) Pump |
| 4 | 1997–2000: Front Wiper Amplifier |
| 5 | Front Wiper Motor |
| 6 | 1999–2003: ABS Actuator and Electric Unit; 1997–1998: ABS Actuator |
| 7 | Relay Box |
| 8 | Transfer Motor Relay (4WD) |
| 9 | Hood Switch |
| 10 | 1997–2000: Theft Warning Horn |

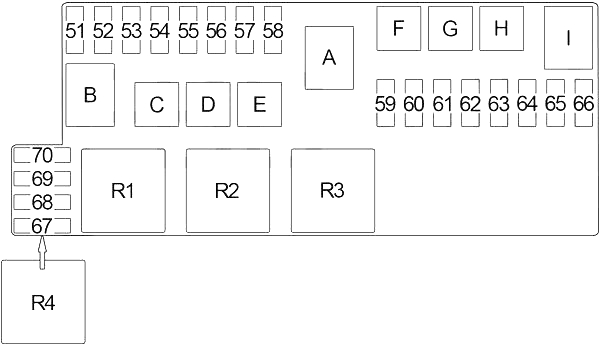

Engine Compartment Fuse Box
The engine compartment fuse box contains fuses and high-current fusible links for the headlights, fuel pump, horn, rear window defogger, ABS, power sockets, engine management and other major electrical systems.

| No. | Amps | Protected Circuit |
|---|---|---|
| 51 | 15A | 1997–2001: Power Socket Relay (Power Socket) |
| 52 | 7.5A | Horn Relay, Horn Switch, Horn (High Tone), Steering Wheel Switch, Theft Warning System |
| 53 | 15A | Front Fog Lamp Relay |
| 54 | 10A | Horn Relay, Horn (Low Tone), Theft Warning System, Automatic Speed Control Device (ASCD) Control Unit |
| 55 | 20A | Transfer Control Unit (4WD) |
| 56 | 20A | Rear Window Defogger Relay |
| 57 | 20A | Rear Window Defogger Relay |
| 58 | 10A | Door Mirror Defogger Relay |
| 59 | 15A | 2001–2003: Right Headlamp Relay (High Beam), Smart Entrance Control Unit, Daytime Running Light, Front Fog Lamp Relay |
| 59 | 15A | 1997–2000: Right Headlamp, Lighting Switch, Daytime Running Light, Headlamp Battery Saver Control Unit |
| 60 | 15A | 2001–2003: Left Headlamp Relay (High Beam), High Beam Indicator, Smart Entrance Control Unit, Daytime Running Light |
| 60 | 15A | 1997–2000: Left Headlamp, Lighting Switch, High Beam Indicator, Daytime Running Light, Headlamp Battery Saver Control Unit |
| 61 | 10A | Tail Lamp Relay, Smart Entrance Control Unit, Lighting Switch, Parking Lamps, Tail Lamps, License Plate Lamps, Headlamp Aiming, Illumination Control Switch, Glove Box Lamp, Combination Meter, Illumination: 4WD Shift Switch, Ashtray, Automatic Transmission Device (Indicator), Cigarette Lighter, Audio Unit, Compass and Thermometer, Hazard Switch, Rear Window Defogger Switch, Headlamp Aiming Switch, Display and Navi Control Unit, A/C Auto Amplifier, Clock |
| 62 | 7.5A | Mass Air Flow Sensor, Crankshaft Position Sensor, Idle Air Control Valve-Auxiliary Air Control (IACV-AAC) Valve, Nissan Anti Theft System (NATS) Immobilizer, Ignition Signal, Intake Valve Timing Control Position Sensor |
| 63 | 10A | 2001–2003: Ignition Signal, Idle Air Control Valve-Auxiliary Air Control (IACV-AAC) Valve |
| 63 | 10A | 1997–2000: Injectors |
| 64 | 15A | Power Socket Relay (Power Socket, Rear Power Socket) |
| 65 | 7.5A | Alternator |
| 66 | 15A | Fuel Pump Relay |
| 67 | 10A | 2002–2003: Intelligent Cruise Control (ICC) Control Unit |
| 68 | 20A | 2001–2003: Left Headlamp (Low Beam) |
| 69 | 20A | 2001–2003: Right Headlamp (Low Beam) |
| 70 | — | 2001–2003: Not used |
High-Current Fuses and Fusible Links
| No. | Amps | Protected Circuit |
|---|---|---|
| A | 120A | 2001–2003: Alternator; Fuses F, G, I, 52, 53, 54, 55, 56, 57 and 58 |
| A | 100A | 1997–2000: Alternator; Fuses F, G, I, 51, 52, 53, 54, 55, 56, 57, 58 and 65 |
| B | — | Not used |
| C | 40A | 1998–2003: ABS |
| C | 30A | 1997: ABS |
| D | 40A | 1998–2003: ABS |
| D | 30A | 1997: ABS |
| E | 40A | Ignition Switch |
| F | 40A | Circuit Breaker (Smart Entrance Control Unit, Power Window Relay, Power Window, Power Door Lock, Sunroof Motor, Power Seat LH/RH, Automatic Drive Positioner) |
| G | 40A | Fuses 4, 5, 14, 15, 20, 24 and 52 |
| H | — | Not used |
| I | 80A | Ignition Relay (Fuses 3, 7, 8, 11, 12, 18 and 28), Accessory Relay (Fuses 9, 10, 13, 19 and 29), Blower Motor Relay (Fuses 1 and 2) |
Engine Compartment Fuse Box – Relays
| No. | Model Years | Relay / Function |
|---|---|---|
| R1 | 2003 | Engine Control Module (ECM) |
| R1 | 1998–2002 | Park/Neutral Position |
| R1 | 1997 | Inhibitor |
| R2 | 2003 | Park/Neutral Position |
| R2 | 2001–2002 | Engine Control Module (ECM) |
| R2 | 1997–2000 | Fuel Pump |
| R3 | Through 2003 (source designation) | Fuel Pump (No. 2) |
| R3 | 2001–2002 | Fuses 67–70 |
| R3 | 1999–2000 | Multi-Remote Control |
| R3 | 1997–1998 | Transfer Indicator Lamp |
| R4 | 1997–2000 | Engine Control Module (ECM) |
| R4 | 2001–2002 | Fuel Pump (No. 2) |
Source note: The original chart labels the R3 fuel pump relay as “–’03” without specifying a starting year. Its exact applicability should be confirmed using the vehicle’s service documentation.

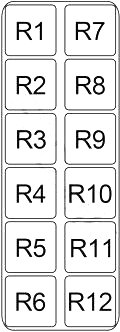

Engine Compartment Relay Box
The engine compartment relay box contains relays for the headlights, horn, air conditioning, rear window defogger, fuel pump, transfer system and other electrical equipment. Relay positions vary significantly between model years.

| No. | Model Years | Relay / Function |
|---|---|---|
| R1 | 1999–2003 | Rear Window Defogger |
| R1 | 1997–1998 | Theft Warning |
| R2 | 1999–2003 | Transfer Shift Low (4WD) |
| R2 | 1998 | Rear Window Defogger |
| R2 | 1997 | Door Mirror Defogger |
| R3 | 2002–2003 | Fuel Pump (No. 1) |
| R3 | 1999–2001 | Right Headlamp |
| R3 | 1997–1998 | Theft Warning Lamp |
| R4 | 2002–2003 | Transfer Shift High (4WD) |
| R4 | 1999–2000 | Theft Warning Lamp |
| R4 | 1998 | Multi-Remote Control |
| R4 | 1997 | Front Fog Lamp |
| R5 | 1998–2001 | Front Fog Lamp |
| R5 | 1997 | Multi-Remote Control (No. 1) |
| R6 | 2002–2003 | Front Fog Lamp |
| R6 | 2001 | Multi-Remote Control |
| R6 | 1999–2000 | Tail Lamp |
| R6 | 1997 | Multi-Remote Control (No. 2) |
| R7 | 2002–2003 | Tail Lamp |
| R7 | 1997–2001 | A/C |
| R8 | 2002–2003 | A/C |
| R8 | 1997–2001 | Horn |
| R9 | 2002–2003 | Horn |
| R9 | 1999–2001 | Left Headlamp |
| R9 | 1998 | Door Mirror Defogger |
| R9 | 1997 | Park/Neutral Position |
| R10 | 2002–2003 | Left Headlamp |
| R10 | 2001 | Fuel Pump (No. 1) |
| R10 | 1997–2000 | Theft Warning Horn |
| R11 | 2002–2003 | Intelligent Cruise Control (ICC) Brake Hold |
| R11 | 2001 | Transfer Shift High (4WD) |
| R11 | 2001 | ATP (2WD) |
| R11 | 1997–2000 | Automatic Speed Control Device (ASCD) Hold |
| R12 | 2002–2003 | Right Headlamp |
| R12 | 2001 | Tail Lamp |
| R12 | 1999–2000 | Transfer Shift High (4WD) |
| R12 | 1998 | Power Socket |
| R12 | 1997 | Rear Window Defogger |
Frequently Asked Questions
Where is the fuse box located in the Infiniti QX4?
The Infiniti QX4 has a passenger compartment fuse box and an engine compartment fuse box. Additional relays are located in the passenger compartment and engine compartment relay boxes.
Which fuse controls the cigarette lighter?
For the 1998–2003 Infiniti QX4, passenger compartment fuse No. 13 (15A) protects the cigarette lighter according to the source chart.
Which fuse protects the fuel pump?
Passenger compartment fuse No. 17 (15A) and engine compartment fuse No. 66 (15A) are both associated with the fuel pump relay.
Which fuses protect the blower motor?
Passenger compartment fuses No. 1 and No. 2 (15A each) protect the blower motor.
Which fuse controls the windshield wipers?
Passenger compartment fuse No. 19 (20A) protects the front wiper motor, front washer motor and front wiper switch.
Which fuse protects the rear windshield wiper?
Passenger compartment fuse No. 29 (10A) protects the rear wiper motor, rear wiper switch and rear washer motor.
Which fuse protects the power socket?
Engine compartment fuse No. 64 (15A) protects the power socket and rear power socket through the power socket relay. Fuse No. 51 (15A) is also listed for the power socket relay on 1997–2001 models.
Are the fuse assignments the same for all Infiniti QX4 model years?
No. Fuse ratings and circuit assignments differ between model years. Several fuse positions have different functions for 1997, 1998–2000 and 2001–2003 vehicles. Always check the correct year-specific assignment.
What is the difference between the 1997–2000 and 2001–2003 Infiniti QX4?
The 1997–2000 QX4 uses a 3.3L VG33E V6 engine, while the 2001–2003 model uses a 3.5L VQ35DE V6 engine. The later vehicles also have several changes to the electrical system, fuse assignments and relay locations.
