Isuzu Axiom (2002 – 2003) – fuse box diagram
Year of production: 2002, 2003
Fuses

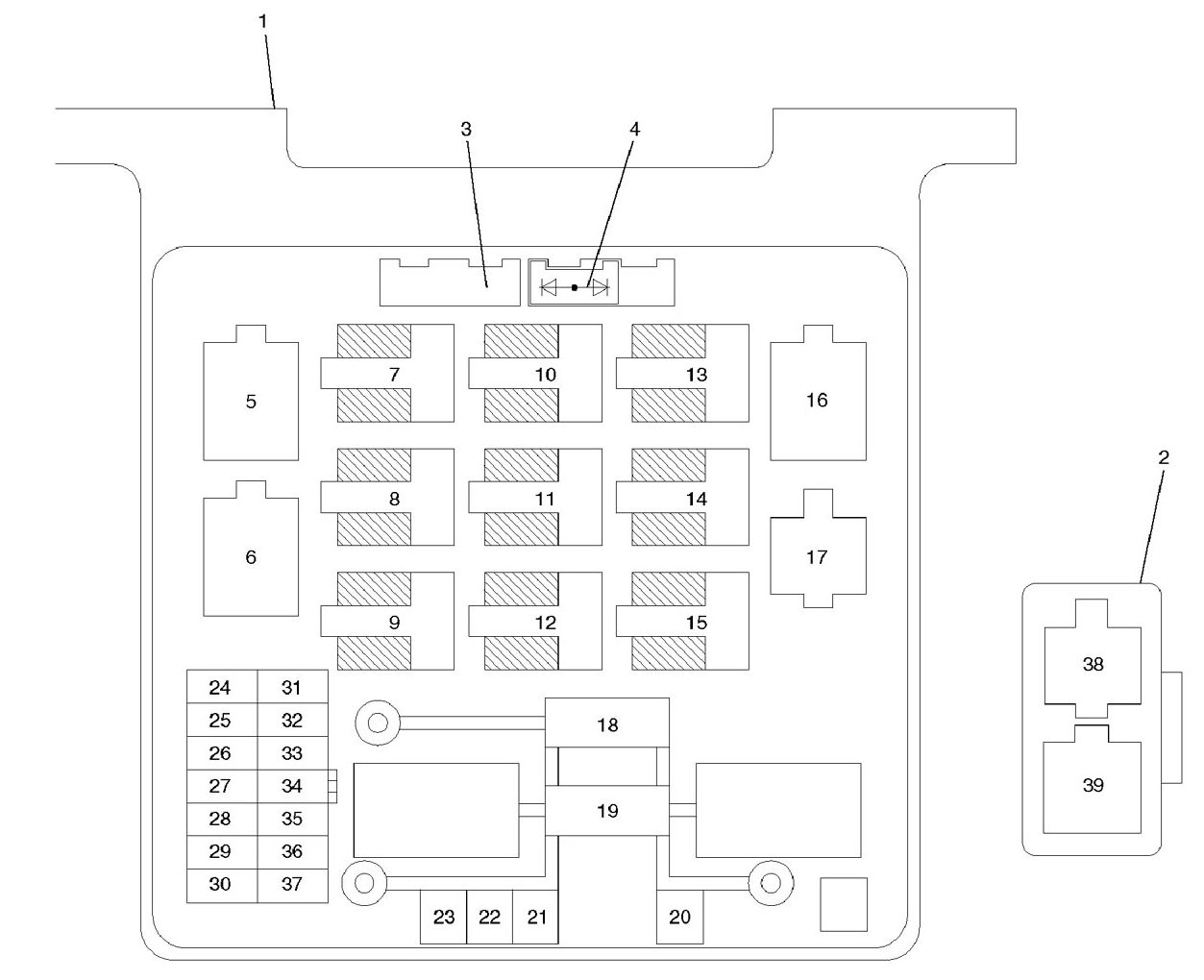

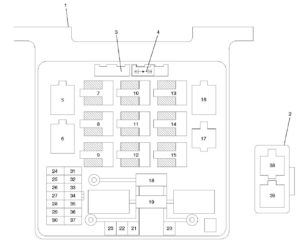

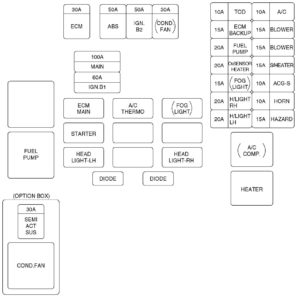

Engine compartment
| No | A | Description |
| 1 | Fuse/Relay Box | |
| 2 | Option Box | |
| 3 | Diode (Not Used) | |
| 4 | Diode | |
| 5 | Heater Relay | |
| 6 | A/C Compressor Relay | |
| 7 | Headlamp Relay RH | |
| 8 | — | — |
| 9 | Fog Lamp Relay | |
| 10 | — | — |
| 11 | — | — |
| 12 | Thermo Relay | |
| 13 | Headlamp Relay LH | |
| 14 | Starter Relay | |
| 15 | ECM Main | |
| 16 | Fuel Pump Relay | |
| 17 | Not Used | |
| 18 | 60 | IG.1 (+B.1 60A) |
| 19 | 100 | Main |
| 20 | 50 | ABS |
| 21 | 50 | IG.2 (+B.2 50A) |
| 22 | 50 | IG.2 (+B.2 50A) |
| 23 | 30 | CondenserFan |
| 24 | 15 | Hazard |
| 25 | 10 | Horn |
| 26 | 10 | ACG-S |
| 27 | 15 | Seat Heater |
| 28 | 15 | Blower |
| 29 | 15 | Blower |
| 30 | 10 | A/C |
| 31 | 20 | Headlamp-LH |
| 32 | 20 | Headlamp-RH |
| 33 | 15 | Fog Lamp |
| 34 | 20 | 02 Sensor |
| 35 | 20 | Fuel Pump |
| 36 | 15 | ECM |
| 37 | 15 | TOO |
| 38 | 30 | Intelligent Suspension Relay |
| 39 | Condenser Fan Relay |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
