GMC Canyon mk2 (Second Generation; from 2015) – fuse box diagram

GMC Canyon mk2 (Second Generation; from 2015) – fuse box diagram

Year of production: 2015, 2016, 2017

Engine compartment fuse block

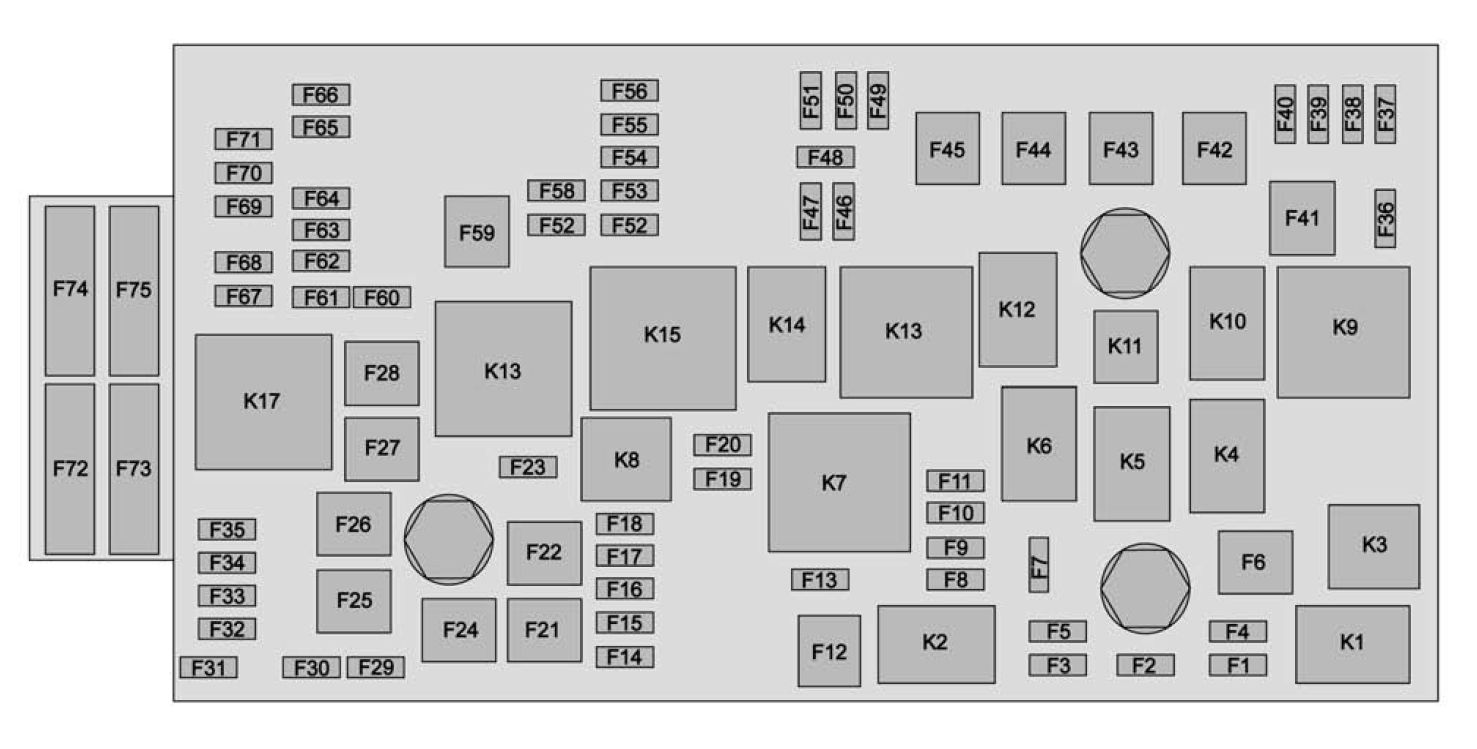

GMC Canyon mk2 - fuse box - engine compartment
GMC Canyon mk2 – fuse box – engine compartment

The engine compartment fuse block is located on the driver side of the engine compartment.

Mini Fuses (2 pin) Usage
F01 Traction Control Module Power
F02 Engine Control Module Power
F03 Air Conditioning Compressor Clutch
F04 Not Used
F05 Fuel Module Ignition
F07 Cargo Lamp
F08 Fuel Injectors – Even
F09 Fuel Injectors – Odd
F10 Engine Control Module
F11 Miscellaneous 1 Ignition
F13 Traction Control Module
F14 Not Used
F15 Not Used
F16 Not Used
F17 Front Axle Actuator
F18 Not Used
F19 Aeroshutters
F20 Not Used
F23 Not Used
F29 Not Used
F30 Heated Seat Power 1
F31 Not Used
F32 Heated Seat Power 2
F33 Body Control Module 3
F34 Fuel System Control Module
F35 Not Used
F36 Center High Mounted Stop Lamp
F37 Right High-Beam Headlamp
F38 Left High-Beam Headlamp
F39 Not Used
F40 Not Used
F46 Not Used
F47 Miscellaneous 2 Ignition
F48 Fog Lamps (If Equipped)
F49 Not Used
F50 Trailer Park Lamps
F51 Horn
F52 Not Used
F53 Not Used
F54 Not Used
F55 Not Used
F56 Washer Pump
F57 Not Used
F58 Not Used
F60 Mirrors Defogger
F61 Not Used
F62 Canister Vent Solenoid
F63 Not Used
F64 Trailer Reverse Lamp
F65 Left Trailer Stop/ Turn Lamps
F66 Right Trailer Stop/Turn Lamps
F67 Electric Power Steering
F68 Not Used
F69 Battery Regulated Voltage Control
F70 Not Used
F71 Not Used


J-Case Fuses (Low Profile) Usage
F06 Wipers
F12 Starter
F21 Front Blower
F22 Antilock Brake System Valves
F24 Trailer
F25 Transfer Case Electronic Control
F26 Antilock Brake System Pump
F27 Trailer Brake Control Module
F28 Rear Window Defogger
F41 Not Used
F42 Not Used
F43 Cooling Fan
F44 Not Used
F45 Brake Vacuum Pump
F59 Not Used


Midi Fuses Usage
F72 Not Used
F73 Not Used
F74 Generator
F75 Not Used


Micro Relays Usage
K01 Air Conditioning Compressor Clutch
K02 Starter
K03 Not Used
K04 Wipers Speed
K05 Wipers Control
K06 Cargo Lamp
K08 Not Used
K09 Not Used
K10 Not Used
K11 Center High Mounted Stop Lamp
K12 Not Used
K13 Vacuum Pump
K14 Park Lamps


Mini Relays Usage
K07 Powertrain
K15 Run/Crank
K17 Rear Window Defogger


Solid State Relay Usage
K16 Not used

Instrument panel fuse block

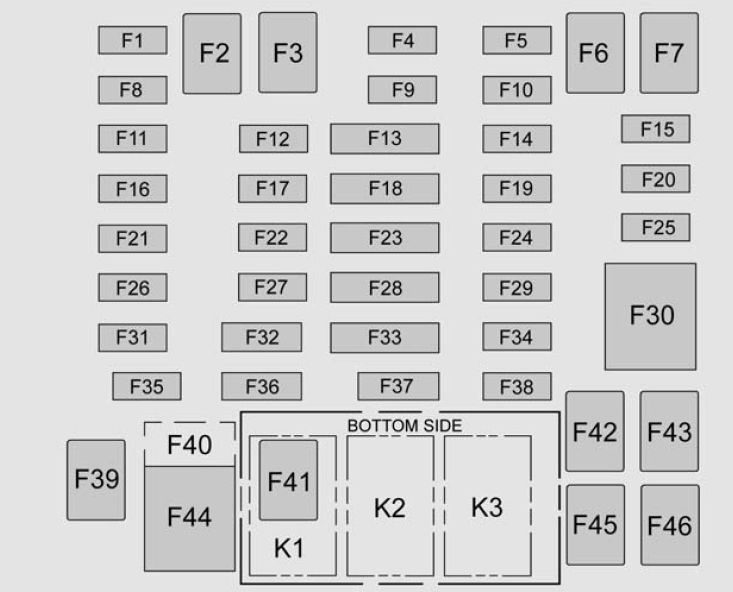

GMC Canyon mk2 - fuse box - instrument panel
GMC Canyon mk2 – fuse box – instrument panel

The instrument panel fuse block is behind the passenger side cowl side trim panel.

Micro Fuse (2 Pin) Usage
F01 Body Control Module 1
F04 Steering Wheel Controls
F05 Body Control Module 2
F08 Mirror Window Module
F09 Instrument Cluster
F10 Not Used
F11 Body Control Module 8
F12 Not Used
F14 Radio/HMI
F15 Body Control Module 6
F16 Not Used
F17 Body Control Module 4
F19 Not Used
F20 Amplifier (if equipped)
F21 Not Used
F22 Not Used
F24 Heating, Ventilation, and Air Conditioning Ignition
F25 Body Control Module 7
F26 Not Used
F27 Not Used
F29 Miscellaneous Ignition
F31 Front Camera
F32 Steering Wheel Controls Backlighting
F34 Not Used
F35 Park, Reverse, Neutral, Drive, Low
F36 Discrete Logic Ignition Sensor
F38 Not Used


Micro Fuse (3 Pin) Usage
F13 OnStar/Heating, Ventilation, and Air Conditioning
F18 Airbag
F23 Data Link Connector/USDB
F28 Instrument Panel/Sensing and Diagnostic Module Ignition
F33 Not Used


Micro J-Case Fuses Usage
F02 Not Used
F03 Not Used
F06 Not Used
F07 Not Used
F39 Auxiliary Power Outlet 2
F41 Auxiliary Power Outlet 1/Lighter
F42 Left Power Window
F43 Driver Power Seat
F45 Right Power Window
F46 Passenger Power Seat


J-Case Fuses Usage
F30 Not Used
F40 Auxiliary Power Outlet
F44 Auxiliary Power Outlet


Mini Fuse (2 Pins) Usage
F37 Not Used


Micro Relay Usage
K1 Retained Accessory Power/Accessory
K2 Run/Crank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
