Hyundai Accent (2018 – 2019) – fuse box diagram

Hyundai Accent (2018 – 2019) – fuse box diagram

Year of production: 2018, 2019

Instrument panel

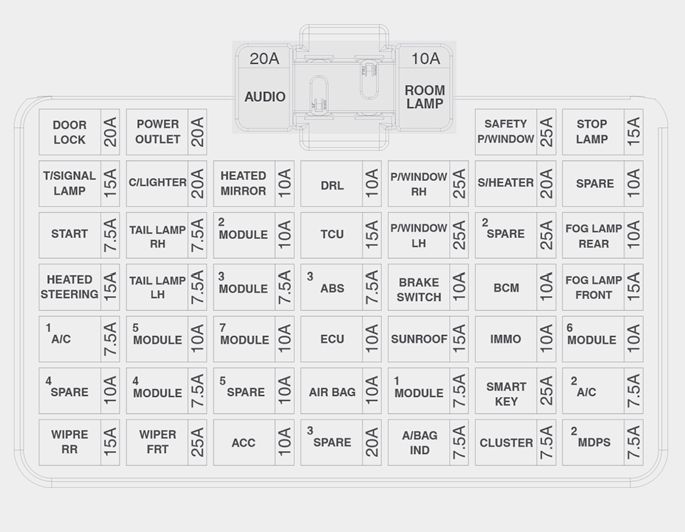

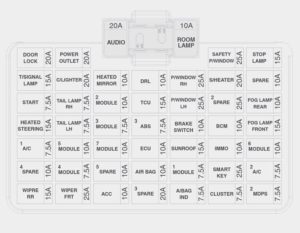

Hyundai Accent - fuse box diagram - instrument panel
Hyundai Accent – fuse box diagram – instrument panel
Fuse name [A] Circuit protected
DOOR LOCK 20 I/P Junction Block (Tail Gate Unlock Relay, Door Lock/Unlock Relay, Two Turn Unlock Relay)
POWER OUTLET 20 Power Outlet
SAFETY P/WINDOW 25 Driver Safety Power Window Module
STOP LAMP 15 I/P Junction Block(Stop Signal Electronic Module)
T/SIGNAL LAMP 15 BCM, SLM
C/LIGHTER 20 Cigarette Lighter
HEATED MIRROR 10 Driver Power Outside Mirror, Passenger Power Outside Mirror, A/C Control Module
DRL 10 BCM
P/WINDOW RH 25 Power Window Main Switch, Passenger Power Window Switch
S/HEATER 20 Front Seat Warmer Control Module
SPARE1 10
START 7,5 With Smart Key : ECM/PCM, E/R Junction Block(Start Relay), Smart Key Control Module, Transaxle Range Switch, Ignition Lock & Clutch Switch W/O Smart Key : Burglar Alarm Relay, Transaxle Range Switch, Ignition Lock & Clutch Switch
TAIL LAMP RH 7,5 Head Lamp RH, Rear Combination Lamp (OUT) RH, License Lamp RH, Rear Combination Lamp (IN) RH, ILL (+)
MODULE2 10 FCA Module, Crash Pad Switch
TCU 15 E/R Junction Block(Fuse – B/UP LAMP), A/T Shift Lever, Transaxle Range Switch, Stop Lamp Switch
P/WINDOW LH 25 Power Window Main Switch
SPARE2 25
FOG LAMP REAR 10
HEATED STEERING 15 Clock Spring
TAIL LAMP LH 7,5 Head Lamp LH, License Lamp LH, Rear Combination Lamp (OUT) LH, Rear Combination Lamp (IN) LH
MODULE3 7,5 Front Seat Warmer Control Module, Audio, Electro Chromic Mirror, A/C Control Module, Clock Spring, A/T Shift Lever Indicator
ABS3 7,5 E/R Junction Block(Multipurpose Check Connector), ESC Module
BRAKE SWITCH 10 Smart Key Control Module, Stop Lamp Switch
BCM 10 BCM
FOG LAMP FRONT 15 I/P Junction Block(Front Fog Lamp Relay)
A/C1 7,5 E/R Junction Block(Blower Relay), A/C Control Module
MODULE5 10 Sunroof Motor, Front Seat Warmer Control Module
MODULE7 10 TPMS Unit
ECU 10 ECM/PCM, Immobilizer Module, Smart Key Control Module
SUNROOF 15 Sunroof Motor
IMMO. 10 Immobilizer Module
MODULE6 10 Key Solenoid
SPARE4 10
MODULE4 7,5 SLM, BCM, Smart Key Control Module
SPARE5 10
AIR BAG 10 SRS Control Module, Occupant Detection Sensor
MODULE1 7,5 BCM, SLM, Key Interlock
SMART KEY 25 Smart Key Control Module
A/C2 7,5
WIPER RR 15 Multifunction Switch, Rear Wiper Motor, Rear Wiper Relay
WIPER FRT 25 Multifunction Switch, Front Wiper Motor, E/R Junction Block(Wiper Lo Relay)
ACC 10 I/P Junction Block(Power Outlet Relay), BCM, SLM, Audio, Key Interlock Power Outside Mirror Switch, Smart Key Control Module, USB Charging Connecto
SPARE3 20
A/BAG IND 7,5 Instrument Cluster, A/C Control Module
CLUSTER 7,5 Instrument Cluster
MDPS2 7,5 MDPS Unit
AUDIO 20 Audio
ROOM LP 10 I/P Junction Block(Room Lamp Relay), Overhead Console Lamp , A/C Control Module, SLM, BCM, Auto Light & Photo Sensor, TPMS Unit ,Instrument Cluster, Data Link Connector, Room Lamp, Trunk Room Lamp, Electro Chromic Mirror

Engine compartment

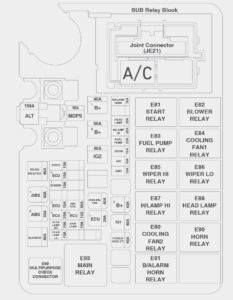

Hyundai Accent - fuse box diagram - engine compartment
Hyundai Accent – fuse box diagram – engine compartment
 Type Relay NO. Relay name
MICRO AC A/C Relay
E81 Start Relay
E82 Blower Relay
E83 Fuel Pump Relay
E84 Cooling Fan1 Relay
E85 Wiper HI Relay
E86 Wiper LO Relay
E87 H/Lamp HI Relay
E88 Head Lamp Relay
E89 Cooling Fan2 Relay
E90 Horn Relay
E91 B/Alarm Horn Relay
MINI E93 Horn Relay

Engine compartment (Battery terminal cover)

Fuse name [A] Circuit protected
MDPS 80 MDPS Unit
ALT 150 E/R Junction Block (Fuse – ABS1, ABS2, BLOWER, REAR HEATED)
REAR HEATED 40 I/P Junction Block (Rear Defogger Relay)
ABS1 40 ESC Module, Multipurpose Check Connector
ABS2 40 ESC Module
BLOWER 40 E/R Junction Block (Blower Relay)
WIPER 10 Front Wiper Motor, Multifunction Switch, E/R Junction Block (Wiper LO Relay)
ECU4 15 ECM/PCM
SENSOR1 10 Oil Control Valve #1/#2, E/R Junction Block (Cooling Fan1/2 Relay), Oxygen Sensor (Up), Oxygen Sensor (Down), Variable Intake Solenoid Valve, Sub Relay Block (A/C Relay) Purge Control Solenoid Valve, Canister Close Valve
ECU2 15 ECM/PCM
ECU3 20 ECM/PCM
HEAD LAMP RH 10 Head Lamp RH
HEAD LAMP LH 10 Head Lamp LH
IGN COIL 20 Ignition Coil #1~#4, Condenser
ECU5 15 ECM/PCM, E/R Junction Block (Fuel Pump Relay)
B/UP LAMP 10 Back-Up Lamp Switch
B+1 40 I/P Junction Block (Fuse – DRL, FOGLAMP FRONT, STOP LAMP, MODULE6, Power Connector (AUDIO, ROOM LAMP))
B+2 50 I/P Junction Block (Fuse – IMMO, SMART KEY1, BRAKE SWITCH, BCM, SAFETY P/WINDOW, S/HEATER, SUNROOF, Power Window Relay)
IG2 40 Ignition Switch, PDM Relay Box (IG2 Relay), E/R Junction Block (Start Relay)
COOLING FAN 40 E/R Junction Block (Cooling Fan1/2 Relay)
ECU1 30 E/R Junction Block (Fuse – ECU3, ECU4, Main Relay)
B/ALARM HORN 10 B/Alarm Horn Relay
HEAD LAMP 20 E/R Junction Block (Head Lamp Relay)
H/LAMP HI 20 W/O DRL : E/R Junction Block (H/Lamp HI Relay) With DRL : SLM, BCM
FUEL PUMP 20 E/R Junction Block (Fuel Pump Relay)
HORN 10 E/R Junction Block (Horn Relay)
A/C 10 Sub Relay Block (A/C Relay)
AMS 10 Battery Sensor
B+3 40 I/P Junction Block (Fuse – T/SIGNAL LAMP, DOOR LOCK, Tail Lamp Relay)
IG1 40 Ignition Switch, PDM Relay Box (IG1 Relay, ACC Relay)
POWER OUTLET 40 I/P Junction Block (Power Outlet Relay)

Engine compartment (Battery terminal cover)

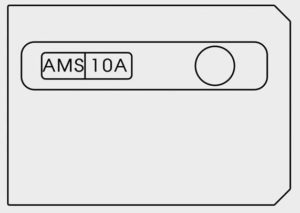

Hyundai Accent - fuse box diagram - engine compartment (ABS)
Hyundai Accent – fuse box diagram – engine compartment (ABS)
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
