Datsun Q7 (2009) – fuse box diagram

Datsun Q7 (2009) – fuse box diagram

Year of production: 2009

Fuse box diagram

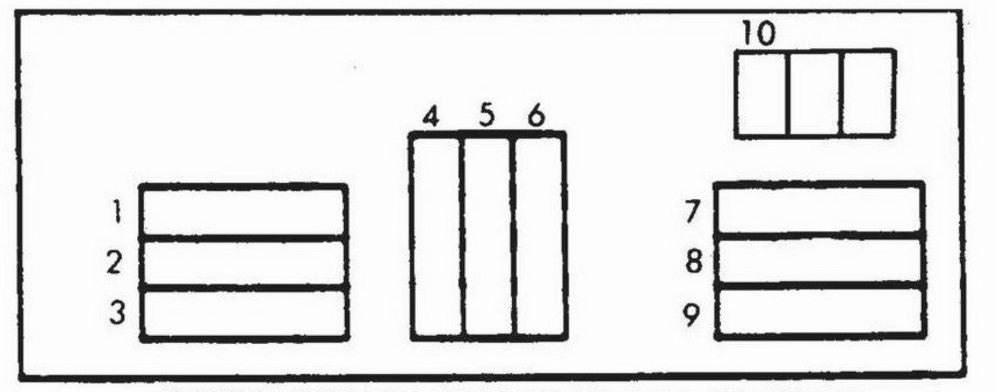

Datsun Q7 – fuse box diagram
Datsun Q7 – fuse box diagram
No. A Protected components
1 10 ECCS, Bulb Check Relay
2 10 Radiator Fan Relay, Radiator Fan Motor, Air Conditioner System, Daytime Light Control Unit, Theft Warning Relay
3 20 Stoplight Switch, Cruise Control, Unit, A/T Control Unit, Shift Lock Control Unit, Anit-Lock Brake System Control Unit, Power Steering Control Unit, Radiator Fan Motor, HICAS Control Unit
4 10 Shift Lock Control Control Unit, Key Switch
5 15 Front Foglights, Headlight Washer Motor
6 20 Ani-Lock Brake System
7 10 Horn, Time Control Unit, Cruise Control
8 15 Right Headlight, Daytime Light Control Unit
9 15 Left Headlight, Daytime Light Control Unit
10 10 A/T Control Unit, Theft Warning Control Unit, auto A/C Control Amp., Key Hole Illumination, Footlights, audio, HICAS Control Unit, Clock, Air Bag Control Unit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
