Scion FR-S (2013 – 2016) – fuse box diagram

Scion FR-S (2013 – 2016) – fuse box diagram

Year of production: 2013, 2014, 2015, 2016

Engine compartment

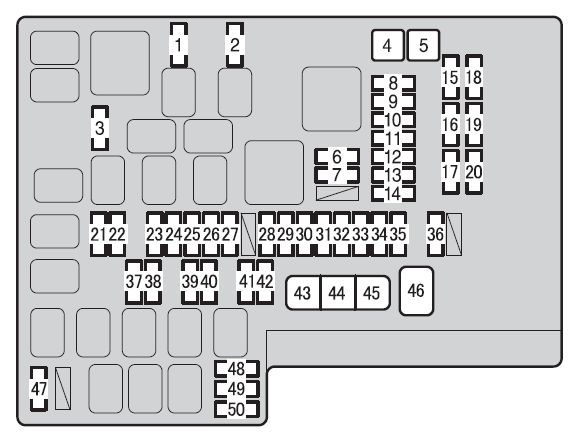

Scion FR-S - fuse box - engine compartment

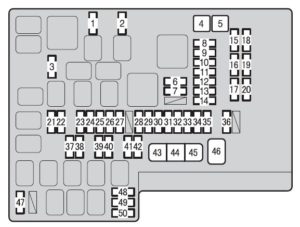

Scion FR-S – fuse box – engine compartment
Fuse Ampere rating [A] Circuit
1 MIR HTR 7,5 Outside rear view mirror defoggers
2 RDI 25 Electric cooling fan
3 (PUSH-AT) 7,5 Engine control unit
4 ABS NO. 1 40 ABS
5 HEATER 50 Air conditioning system
6 WASHER 10 Windshield washer
7 WIPER 30 Windshield wipers
8 RR DEF 30 Rear window defogger
9 (RR FOG) 10
10 D FR DOOR 25 Power window (driver’s side)
11 (CDS) 25 Electric cooling fan
12 D-OP 25
13 ABS NO. 2 25 ABS
14 D FL DOOR 25 Power window (passenger’s side)
15 SPARE Spare fuse
16 SPARE Spare fuse
17 SPARE Spare fuse
18 SPARE Spare fuse
19 SPARE Spare fuse
20 SPARE Spare fuse
21 ST 7,5 Starting system
22 ALT-S 7,5 Charging system
23 (STR LOCK) 7,5
24 D/L 20 Power door lock
25 ETCS 15 Engine control unit
26 (AT+B) 7,5 Transmission
27 (AM2 NO. 2) 7,5
28 EFI (CTRL) 15 Engine control unit
29 EFI (HTR) 15 Multiport fuel injection system/sequential multiport fuel injection system
30 EFI (IGN) 15 Starting system
31 EFI (+B) 7,5 Engine control unit
32 HAZ 15 Turn signal lights, emergency flashers
33 MPX-B 7,5 Gauge and meters
34 F/PMP 20 Multiport fuel injection system/sequential multiport fuel injection system
35 IG2 MAIN 30 SRS airbag system, engine control unit
36 DCC 30 Interior light, wireless remote control, main body ECU
37 HORN NO. 2 7,5 Horn
38 HORN NO. 1 7,5 Horn
39 H-LP LH LO 15 Left-hand headlight (low beam)
40 H-LP RH LO 15 Right-hand headlight (low beam)
41 H-LP LH HI 10 Left-hand headlight (high beam)
42 H-LP RH HI 10 Right-hand headlight (high beam)
43 INJ 30 Multiport fuel injection system/sequential multiport fuel injection system
44 H-LP WASHER 30
45 AM2 NO. 1 40 Starting system, engine control unit
46 EPS 80 Electric power steering
47 A/B MAIN 15 SRS airbag system
48 ECU-B 7,5 Wireless remote control, main body ECU
49 DOME 20 Interior light
50 IG2 7,5 Engine control unit

Instrument panel

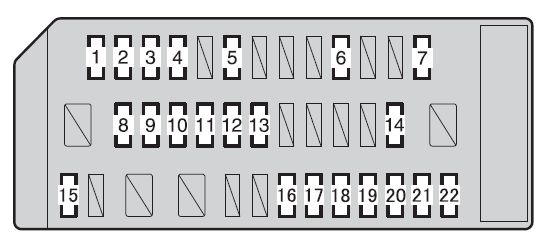

Scion FR-S - fuse box - instrument panel
Scion FR-S – fuse box – instrument panel
Fuse Ampere rating [A] Circuit
1 ECU ACC 10 Main body ECU, outside rear view mirrors
2 P/POINT No.2 15 Power outlet
3 PANEL 10 Illumination
4 TAIL 10 Tail lights
5 DRL 10 Daytime running light system
6 STOP 7,5 Stop lights
7 OBD 7,5 On-board diagnosis system
8 HEATER-S 7,5 Air conditioning system
9 HEATER 10 Air conditioning system
10 FR FOG LH 10
11 FR FOG RH 10
12 BK/UP LP 7,5 Back-up lights
13 ECU IG1 10 ABS, electric power steering
14 AM1 7,5 Starting system
15 AMP 15 Audio system
16 AT UNIT 15 Transmission
17 GAUGE 7,5 Gauge and meters
18 ECU IG2 10 Engine control unit
19 SEAT HTR LH 10
20 SEAT HTR RH 10
21 RADIO 7,5 Audio system
22 P/POINT No.1 15 Power outlet

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
