Daihatsu Rocky (1992) – fuse box diagram

Daihatsu Rocky (1992) – fuse box diagram

Year of production: 1992

Fuse box diagram

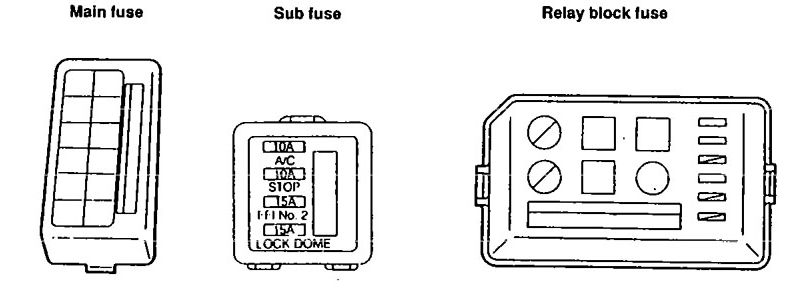

Daihatsu Rocky – fuse box diagram
Daihatsu Rocky – fuse box diagram
Fuse A Function
HEADLAMP (AH) 15 Headlamp (RH), High-beam indicator
HEADLAMP (LH) 15 Headlamp (LH), EFI ECU
HEATER 30 Front heater relay. Rear heater relay
ENGINE 10 Alternator, key reminder buzzer
HORN 20 Horn relay, Hazzard warning switch
CIG 15 Cigar lighter. Radio, clock
WIPER 15 Front washer motor, Front wiper switch, Front wiper motor. Rear wiper motor, Rear wiper switch, Head lamp cleaner relay
DE FOG 15 Rear window defogger switch
TURN 7,5 Turn signal switch, Hazzard warnnlng switch
GAUGE 7,5 Backup tamp switch, seat warning lamp, 4WD lamp, Brake luted lamp, CHG lamp, Oil pressure lamp, Fuel sender gauge, water temperature sender gauge, Tachometer, Voltmeter, Diagnosis lamp
TAIL RH 10 Light control rheostat switch. License tamp (RH), Rear side marker lamp (RH). taillamp (AH), Front side marker lamp (RH). Clearance lamp (RH), clock
TAIL LH 10 License lamp (LH),Rear side marker lamp (LH), Teillamp (LH). Front side marker lamp (LH), Clearance lamp (LH)
A/C 10 A/C switch
STOP 10 Stop lamp switch
EFI N0.2 15 Main relay, lnjector relay, Fuel pump relay
LOCK DOME 15 Back door lock switch, Radio, Room lamp, clock
EFI NO. 1 15 Main relay, Alternator
INJECTOR 10 Injector relay
BACKUP 10 EFI Computer

Relay

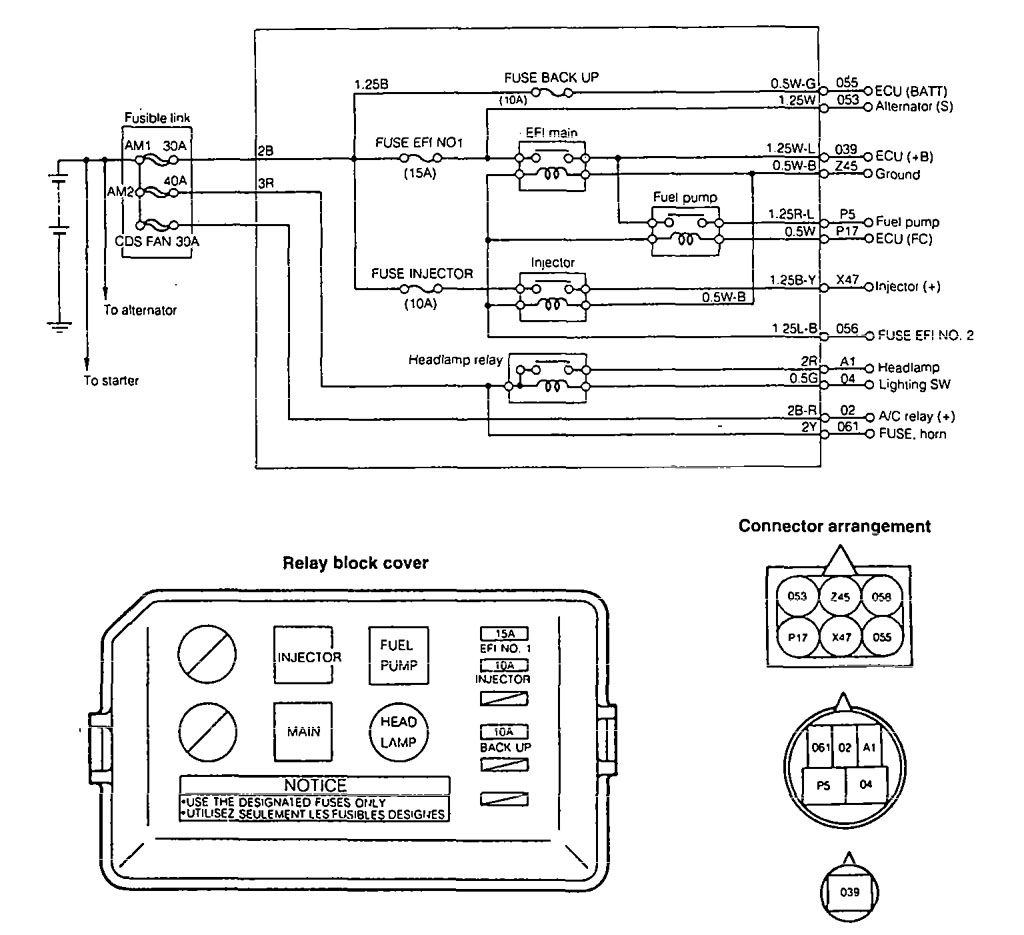

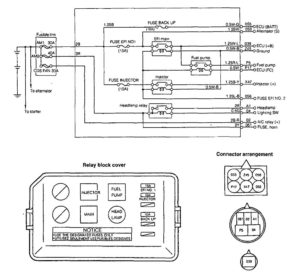

Daihatsu Rocky – fuse box diagram – relays
Daihatsu Rocky – fuse box diagram – relays

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
