Alfa Romeo 155 – fuse box diagram

Alfa Romeo 155 – fuse box diagram

Year of production:

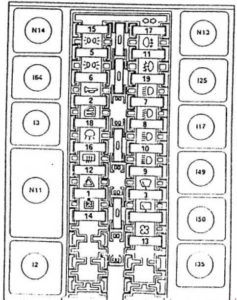

Fuse Panel

Alfa Romeo 155 – fuse box diagram
Alfa Romeo 155 – fuse box diagram
Fuse A Circuit protected
1 10 Hazard warning lights
2 20 Horns, Cigar lighters, Stoplights, Boot release, Radio
3 20 Windscreen wipers
4 20 Roof light timer
5 10 Control lighting, Rear left and front right sidelights, RH numberptale light
6 10 Control lighting, Rear right and front left sidelights, LH numberptale light
7 10 RH dipped beam headlight
8 10 LH dipped beam headlight
9 10 RH main beam headlight
10 10 LH main-beam headlight (+ warning lamp)
11 7,5 Rear foglamp (+ warning lamp)
12 30 Heated rear window (+ warning lamp), Door mirror defrosters
13 20 Heating/air conditioning fan, Seat warming, Rear and front power windows, Radio
14 20 Engine cooling fan (6V)
25 Electric fan for radiator cooling
15 10 Dashboard, Check Panel, Windscreen washers, Headlight washers, Reversing lights, Controlled damping suspension solenoid valves, Air conditioning compressor control, Engine electric fan control
16 7,5 Interior lights, Clock, Air conditioning control unit
17 7,5 Direction indicators, Door mirror adjustment, Controlled damping suspension
18 20 Door locks
19 20 Front foglamps (+ warning lamp)
Relay
N11 Door locking control unit
N13 Hazard warning lights and direction indicators intermittence
N14 Electronic windscreen wiper intermittence
I2 Heated rear window relay
I3 Horn relay
I17 Fog-light relay
I25 Rear fog light relay
I35 Key-operated supply relay
I49 Dipped beam headlight
I50 Main beam headlight
I64 Sidelights relay

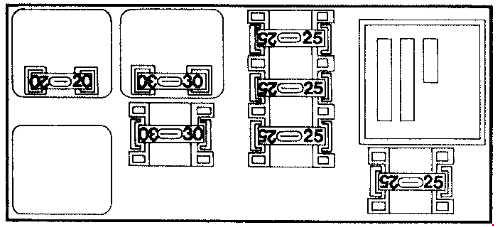

Auxiliary Fusebox

Alfa Romeo 155 – fuse box diagram – auxiliary fuse box
Alfa Romeo 155 – fuse box diagram – auxiliary fuse box
A Color Circuit protected
20 Black Headlight washer intermittence
25 Brown Passenger side power window
10 Red ABS
25 Blue Rear power windows
30 Green Electric seat adjustment
30 Red Boot release
20 Brown Controlled damping suspension
30 White Sunroof
Black Timer for headlight washer
Green Relay for radiator fan (only for TS model)

1.8-2.0 TS Model

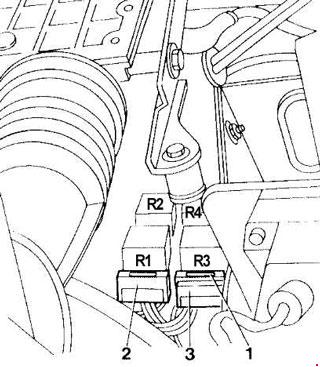

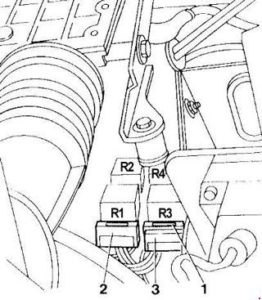

The following fuses are housed on a bracket located between the battery and the air-flow meter.

Alfa Romeo 155 – fuse box diagram – 1.8 – 2.0 TS Model
Alfa Romeo 155 – fuse box diagram – 1.8 – 2.0 TS Model
Number Circuit protected
1 Control unit power supply
2 Lambda probe (for vehicles equipped with catalytic converter)
3 Fuel pump
Relay
R1 Fuel pump relay
R2 Main relay
R3 Timing variator relay
R4 Relay for services

2.4 V6 model

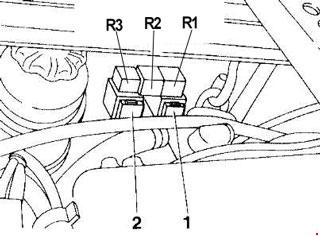

The following fuses are located in a box located on the rear wall of the engine compartment next to the tank

Alfa Romeo 155 – fuse box diagram – 2.4 V6 model
Alfa Romeo 155 – fuse box diagram – 2.4 V6 model
Number Fuse component
1 Lambda probe (for vehicles equipped with catalytic converter)
2 Fuel pump
Relay
R1 Fuel pump relay
R2 Main relay
R3 Relay for services

Heating-Ventilation System

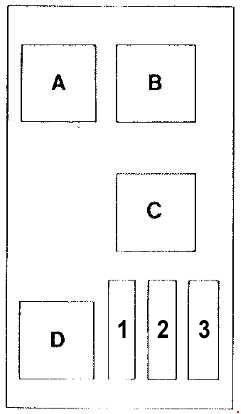

For vehicles equipped with a heating-ventilation system, the fuses relating to the specific parts are housed in a container located on the front wall of the engine compartment.

Alfa Romeo 155 – fuse box diagram – heating-ventilation system
Alfa Romeo 155 – fuse box diagram – heating-ventilation system
No. A Fuse component
1 30 Passenger compartment electric fan
2 40 Engine cooling liquid radiator electric fan (only for 2.4 V6 model)
3 15 Air conditioning system compressor
Relay
A Relay for engine cooling liquid radiator fan (only for 2.4 V6 model)
B Slug for engine cooling liquid radiator fan
C Relay for air conditioning compressor cut-in
D Supplementary relay

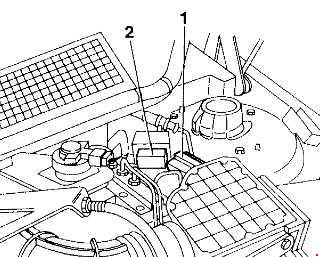

The following fuses are housed in the rear left-hand part of the engine compartment next to the brake-clutch fluid reservoir.

Alfa Romeo 155 – fuse box diagram – heating-ventilation system
Alfa Romeo 155 – fuse box diagram – heating-ventilation system
No. A Fuse component
1 50 Heating-ventilatton system control unit
2 40 Engine cooling liquid radiator fan (only for 1.8 – 2.0 TS model

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
