Acura TL (2013 – 2014) – wiring diagrams – ground distribution

Acura TL (2013 – 2014) – wiring diagrams – ground distribution

Year of productions:  2013, 2014

Ground distribution

Version 1

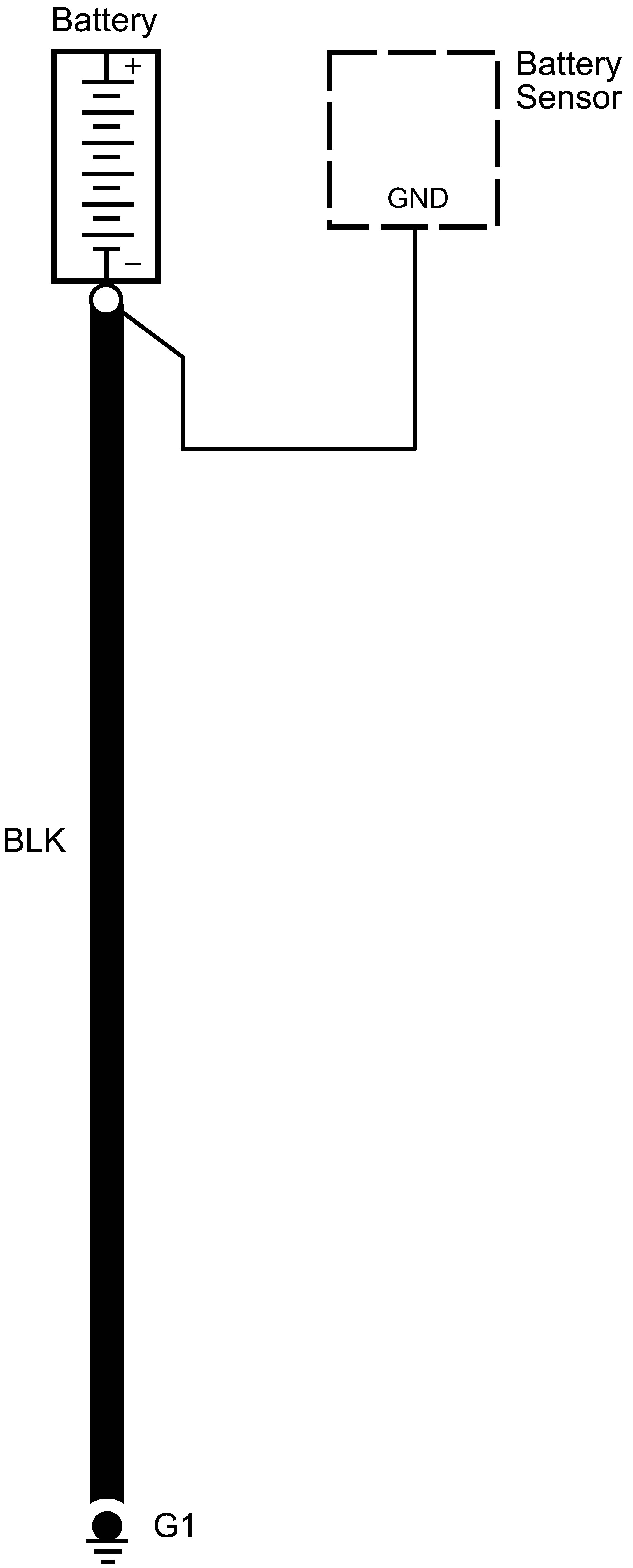

Acura TL - wiring diagram - ground distribution (part 1)
Acura TL – wiring diagram – ground distribution (part 1)

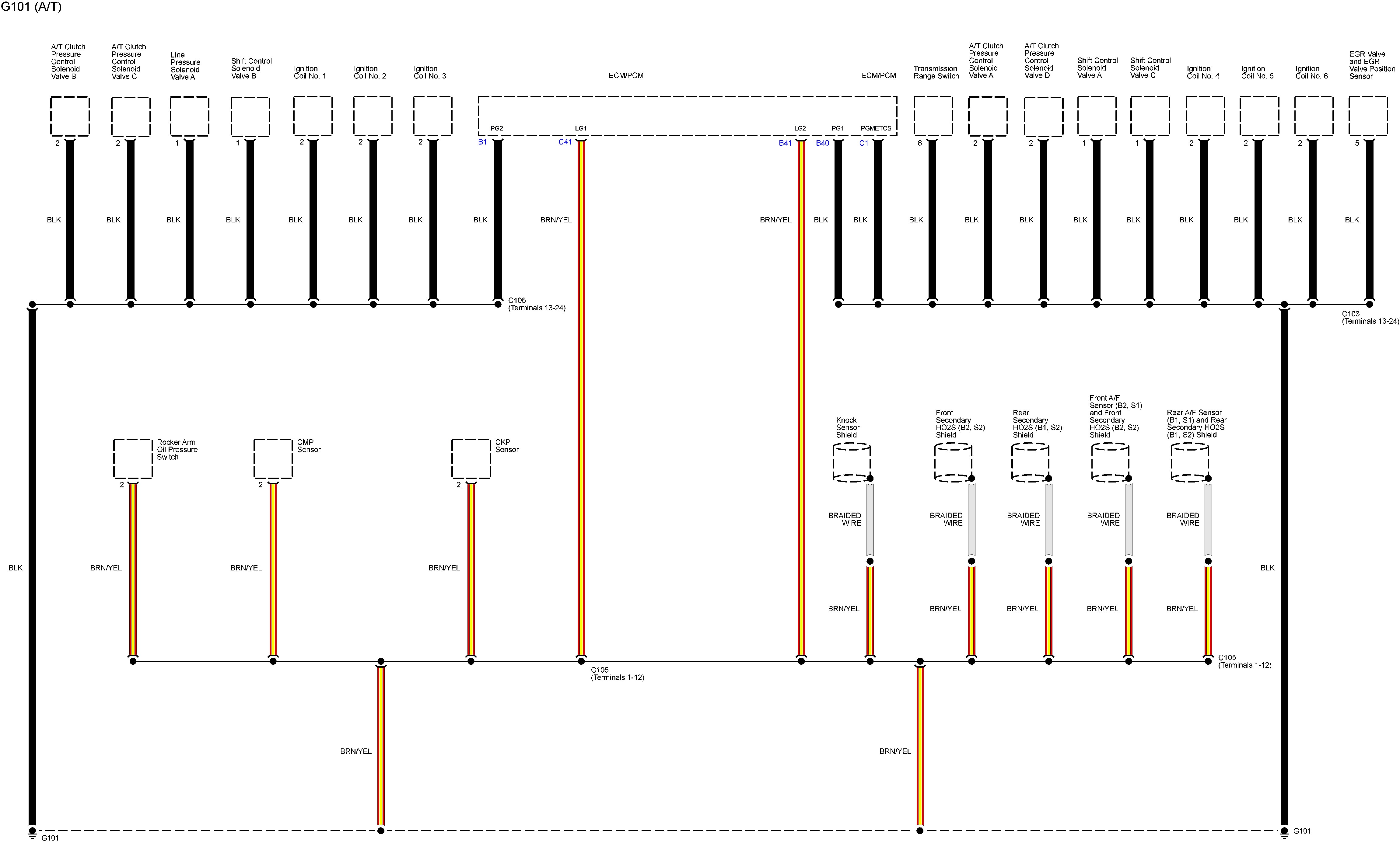

Acura TL - wiring diagram - ground distribution (part 2)
Acura TL – wiring diagram – ground distribution (part 2)

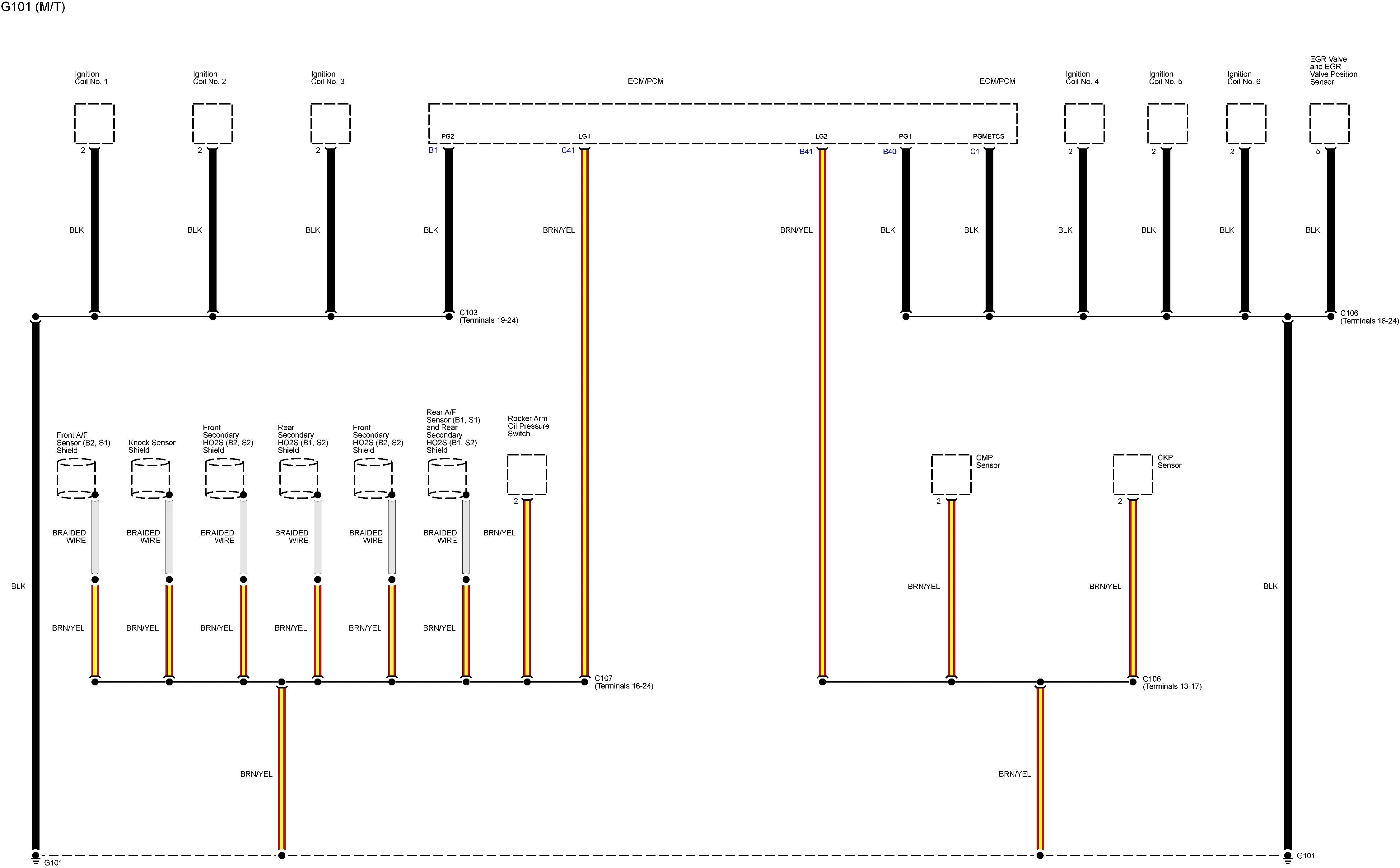

Acura TL - wiring diagram - ground distribution (part 3)
Acura TL – wiring diagram – ground distribution (part 3)

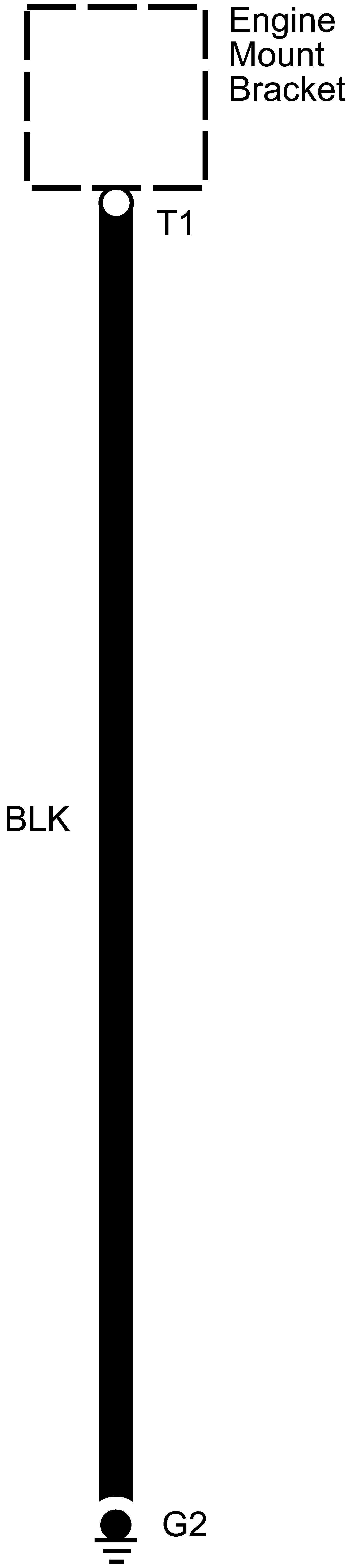

Acura TL - wiring diagram - ground distribution (part 4)
Acura TL – wiring diagram – ground distribution (part 4)

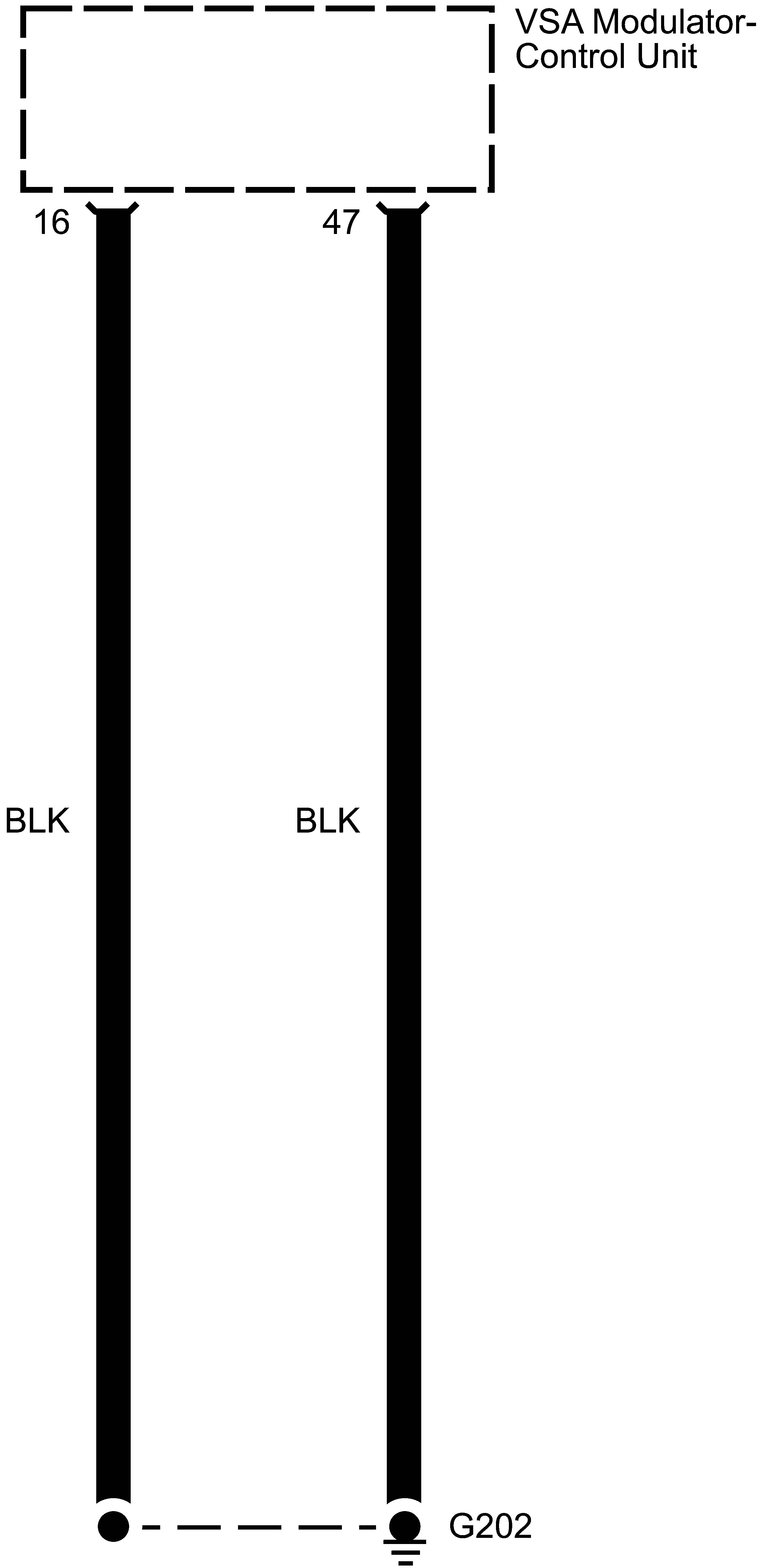

Acura TL - wiring diagram - ground distribution (part 5)
Acura TL – wiring diagram – ground distribution (part 5)

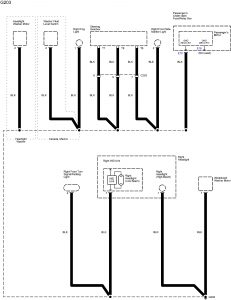

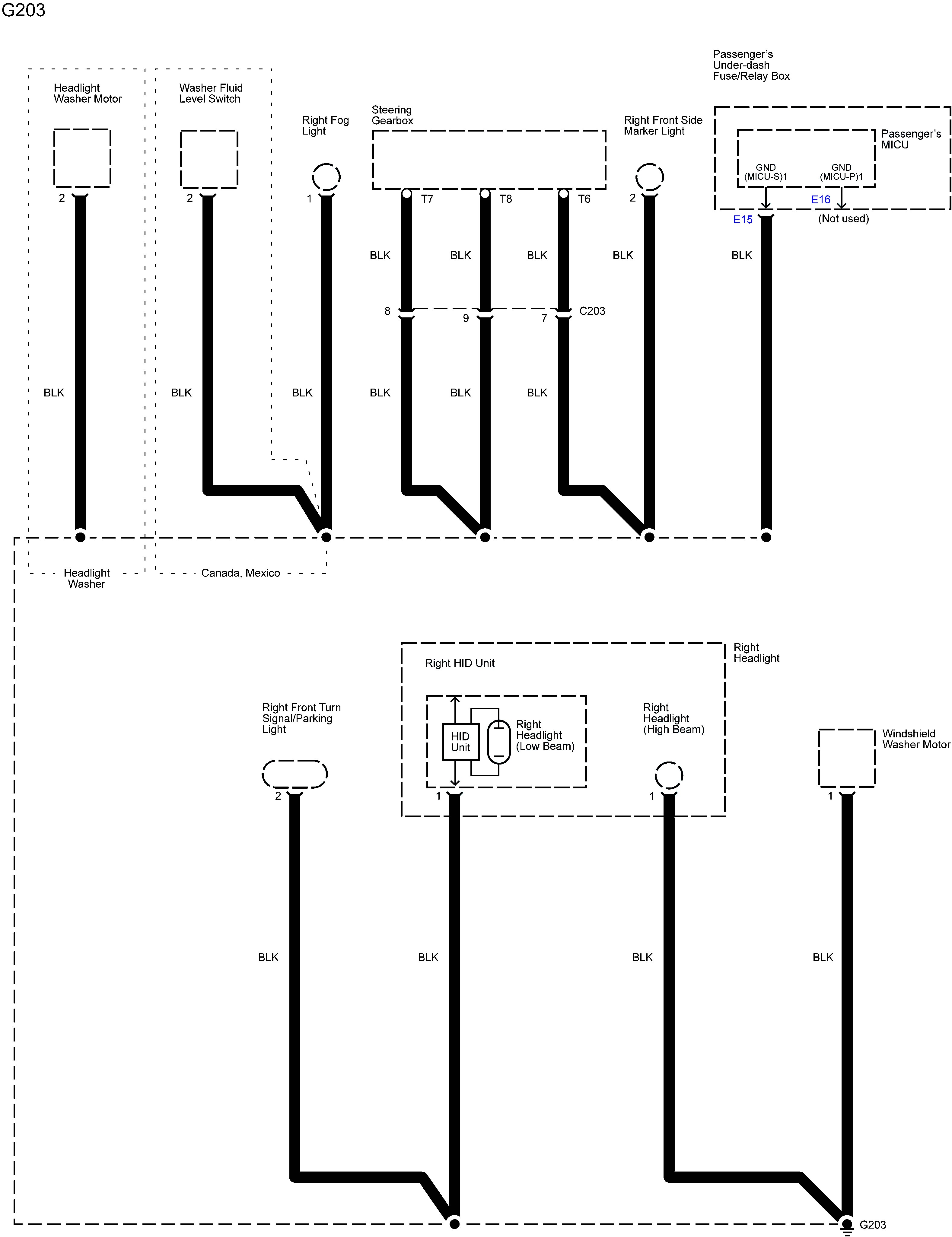

Acura TL - wiring diagram - ground distribution (part 6)
Acura TL – wiring diagram – ground distribution (part 6)

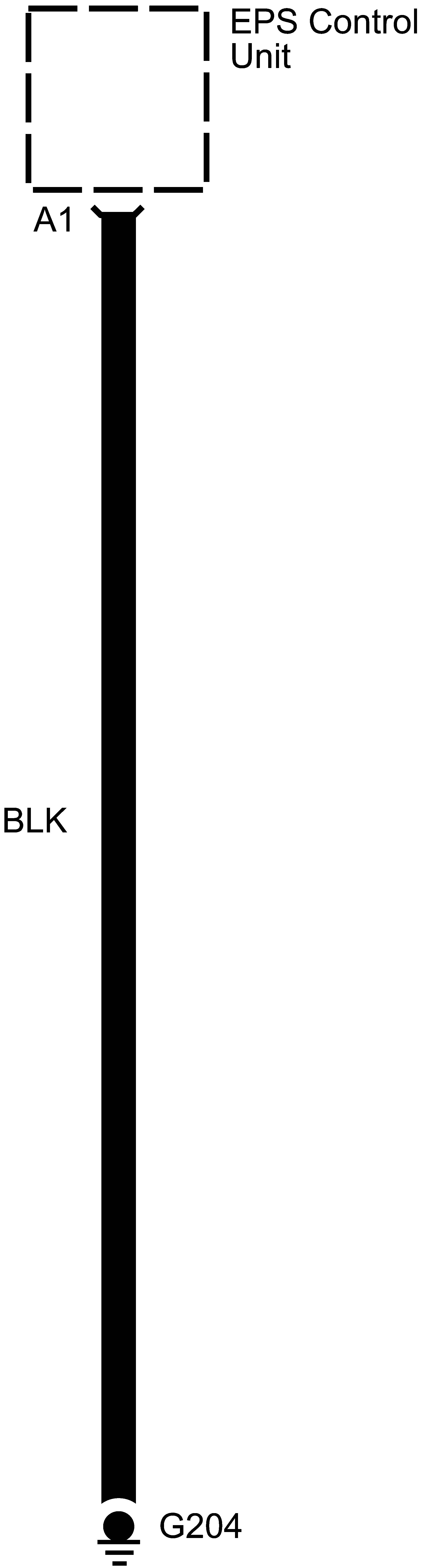

Acura TL - wiring diagram - ground distribution (part 7)
Acura TL – wiring diagram – ground distribution (part 7)

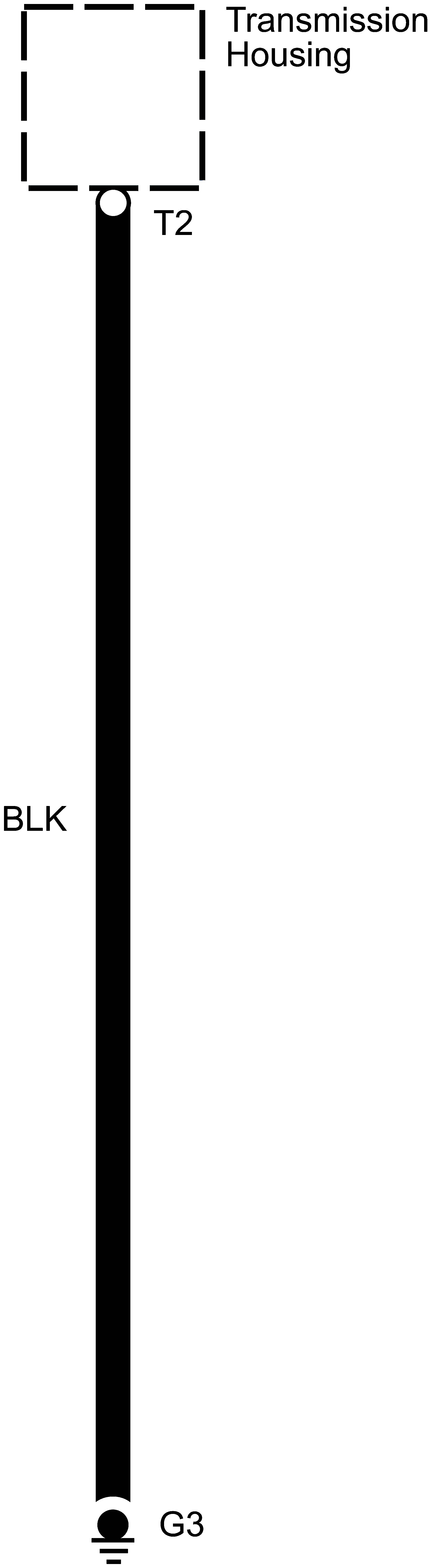

Acura TL - wiring diagram - ground distribution (part 8)
Acura TL – wiring diagram – ground distribution (part 8)

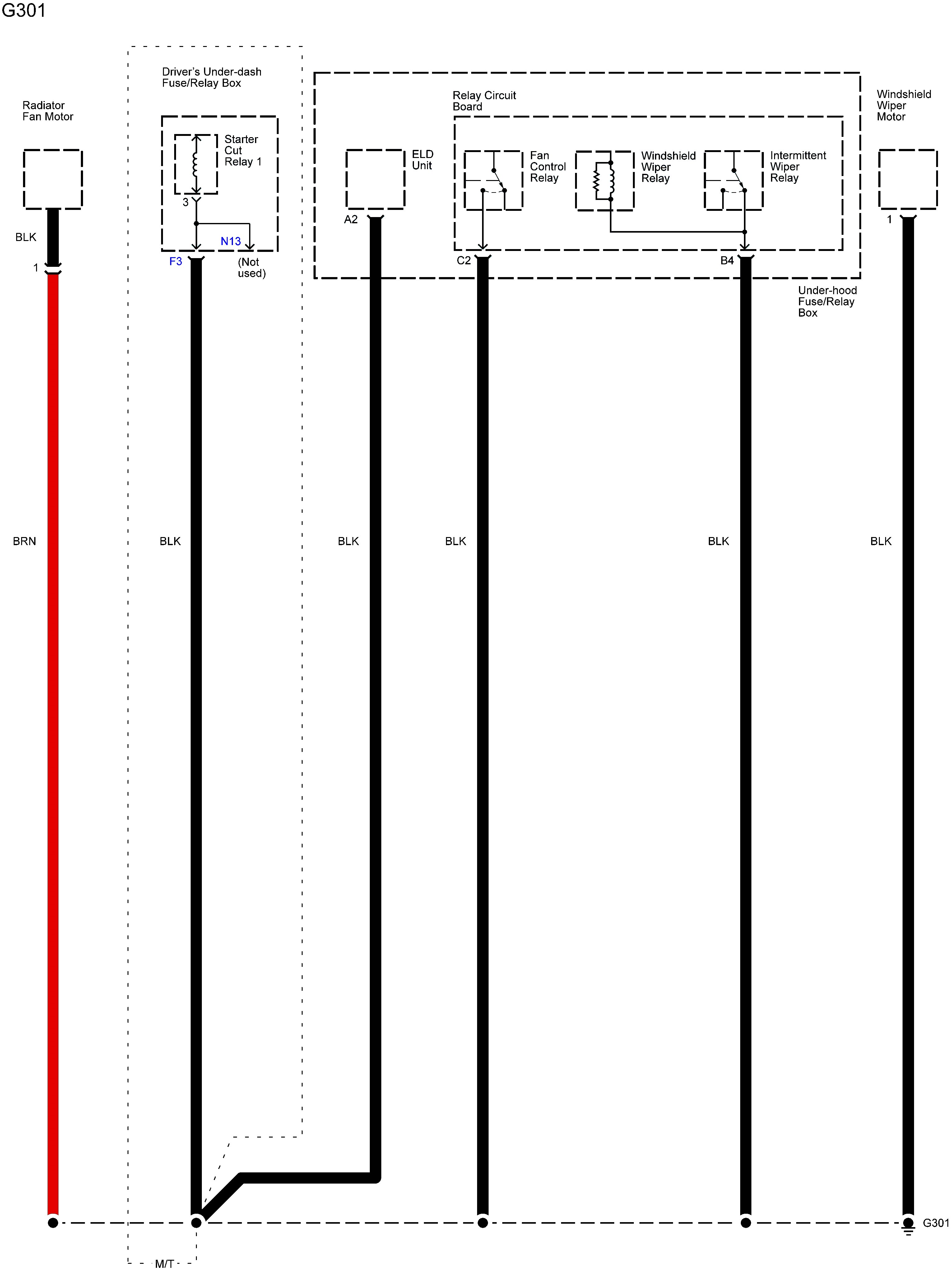

Acura TL - wiring diagram - ground distribution (part 9)
Acura TL – wiring diagram – ground distribution (part 9)

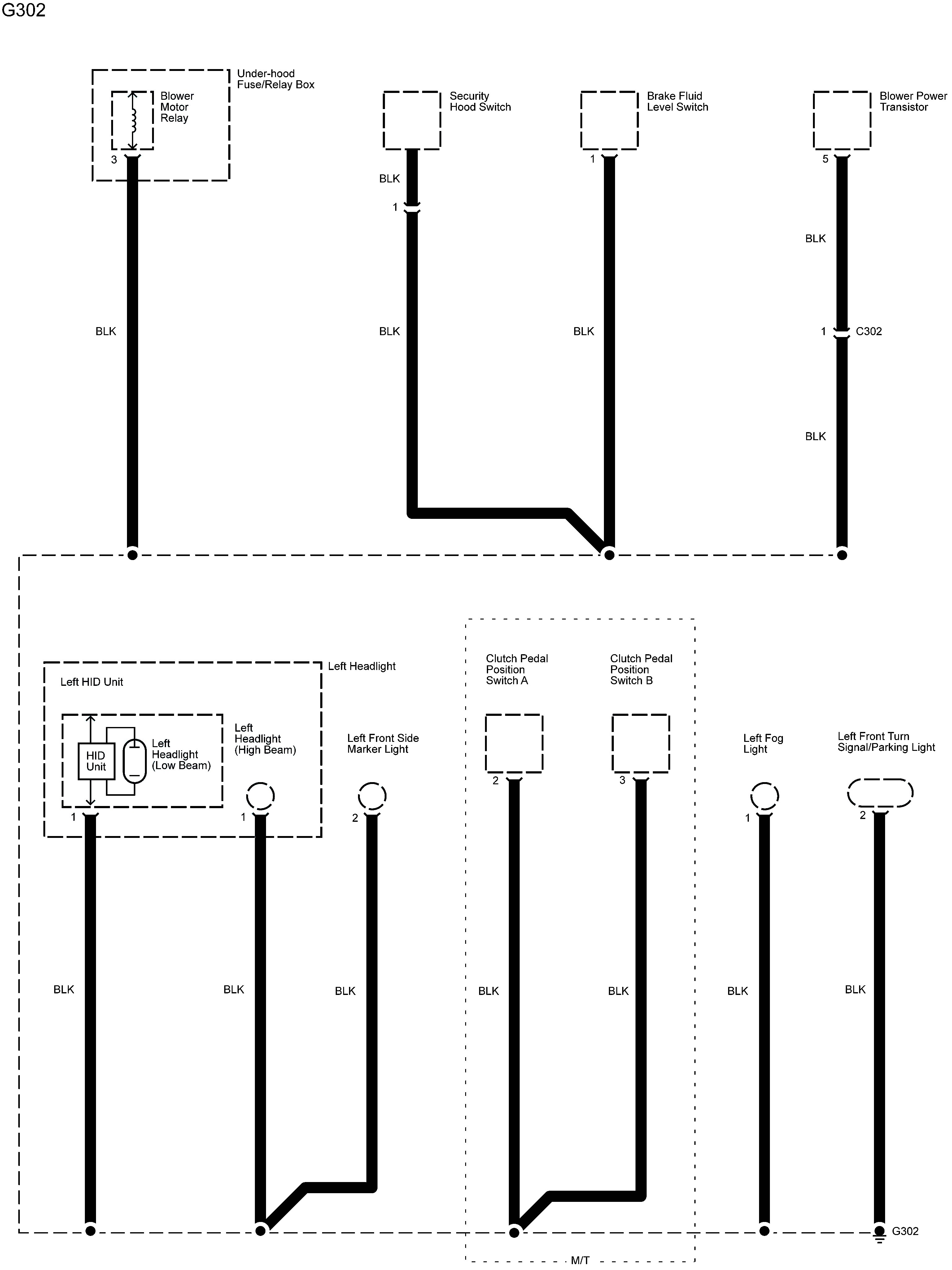

Acura TL - wiring diagram - ground distribution (part 10)
Acura TL – wiring diagram – ground distribution (part 10)

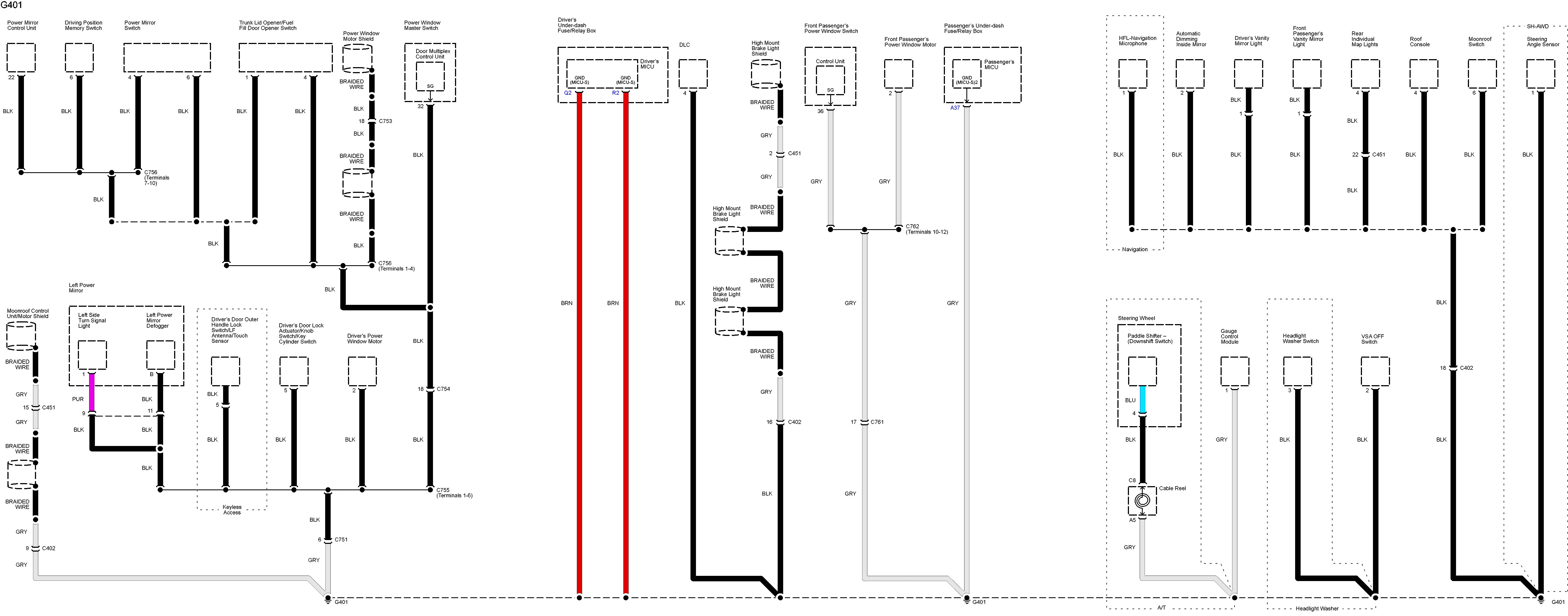

Acura TL - wiring diagram - ground distribution (part 11)
Acura TL – wiring diagram – ground distribution (part 11)

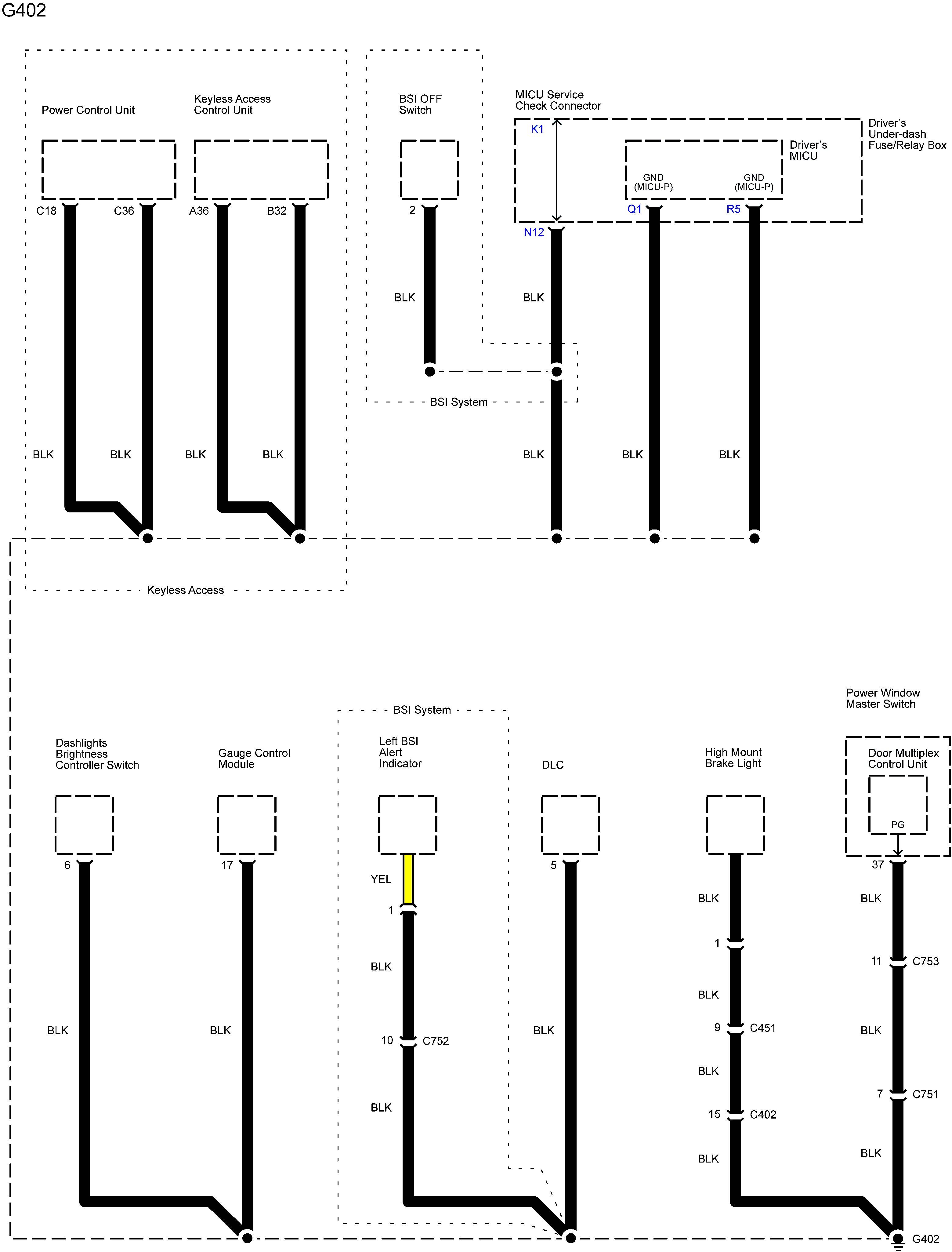

Acura TL - wiring diagram - ground distribution (part 12)
Acura TL – wiring diagram – ground distribution (part 12)

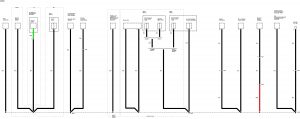

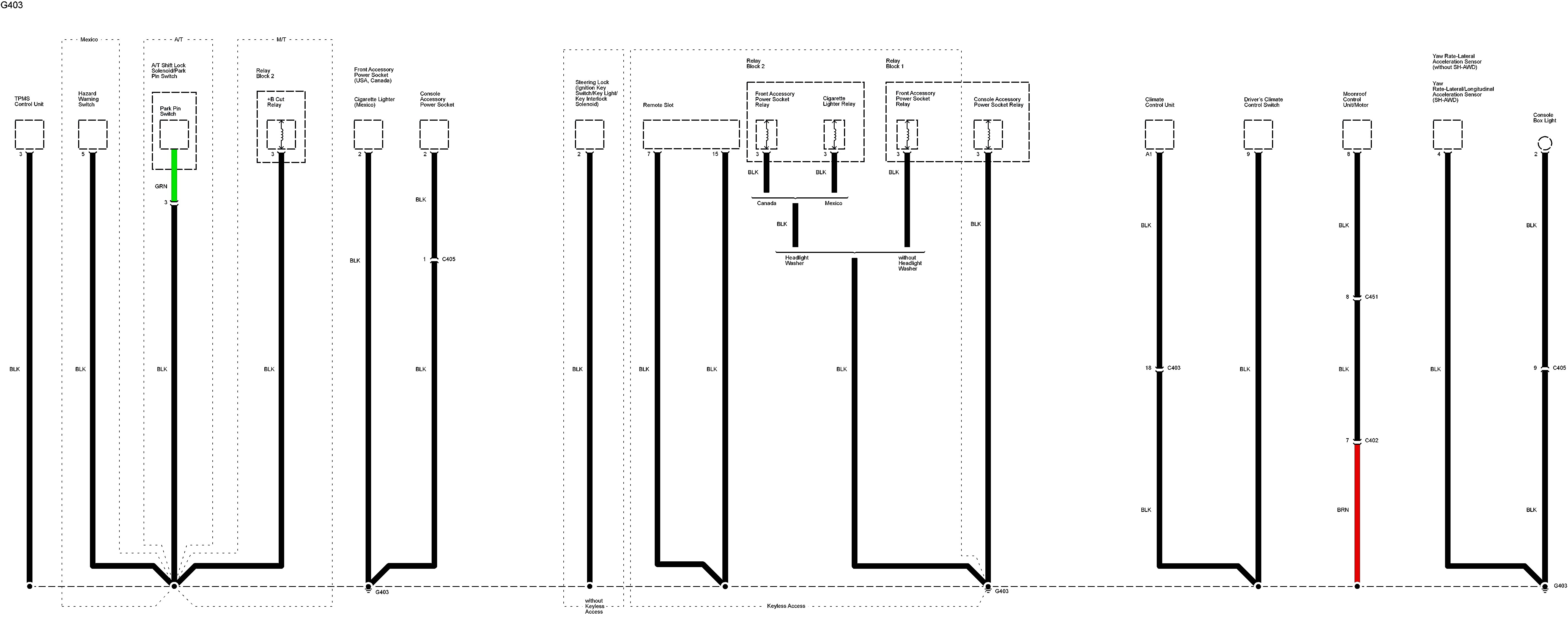

Acura TL - wiring diagram - ground distribution (part 13)
Acura TL – wiring diagram – ground distribution (part 13)

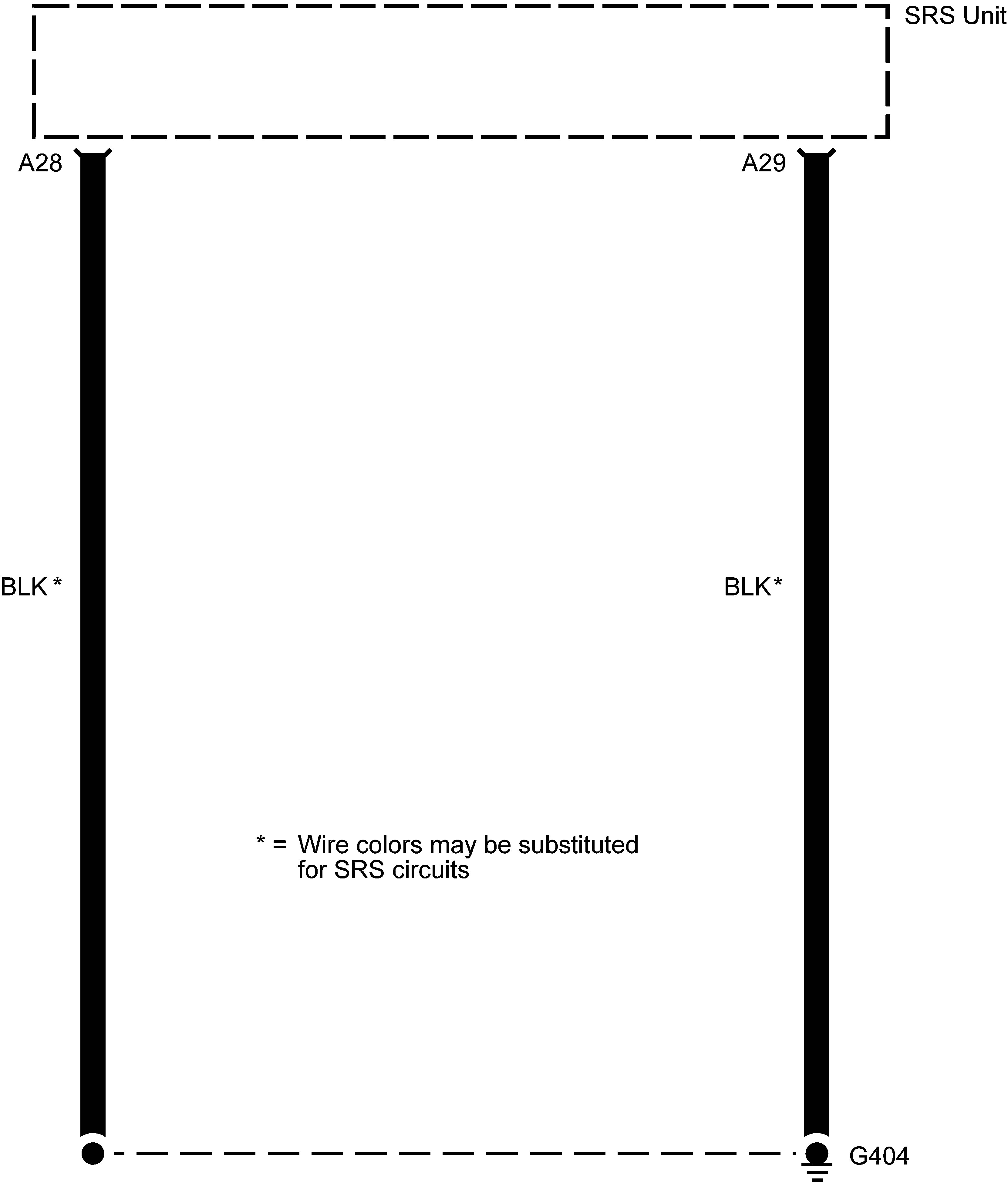

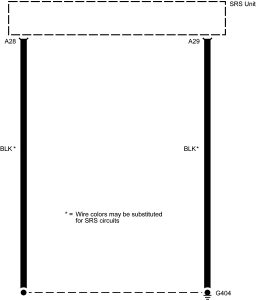

Acura TL - wiring diagram - ground distribution (part 14)
Acura TL – wiring diagram – ground distribution (part 14)

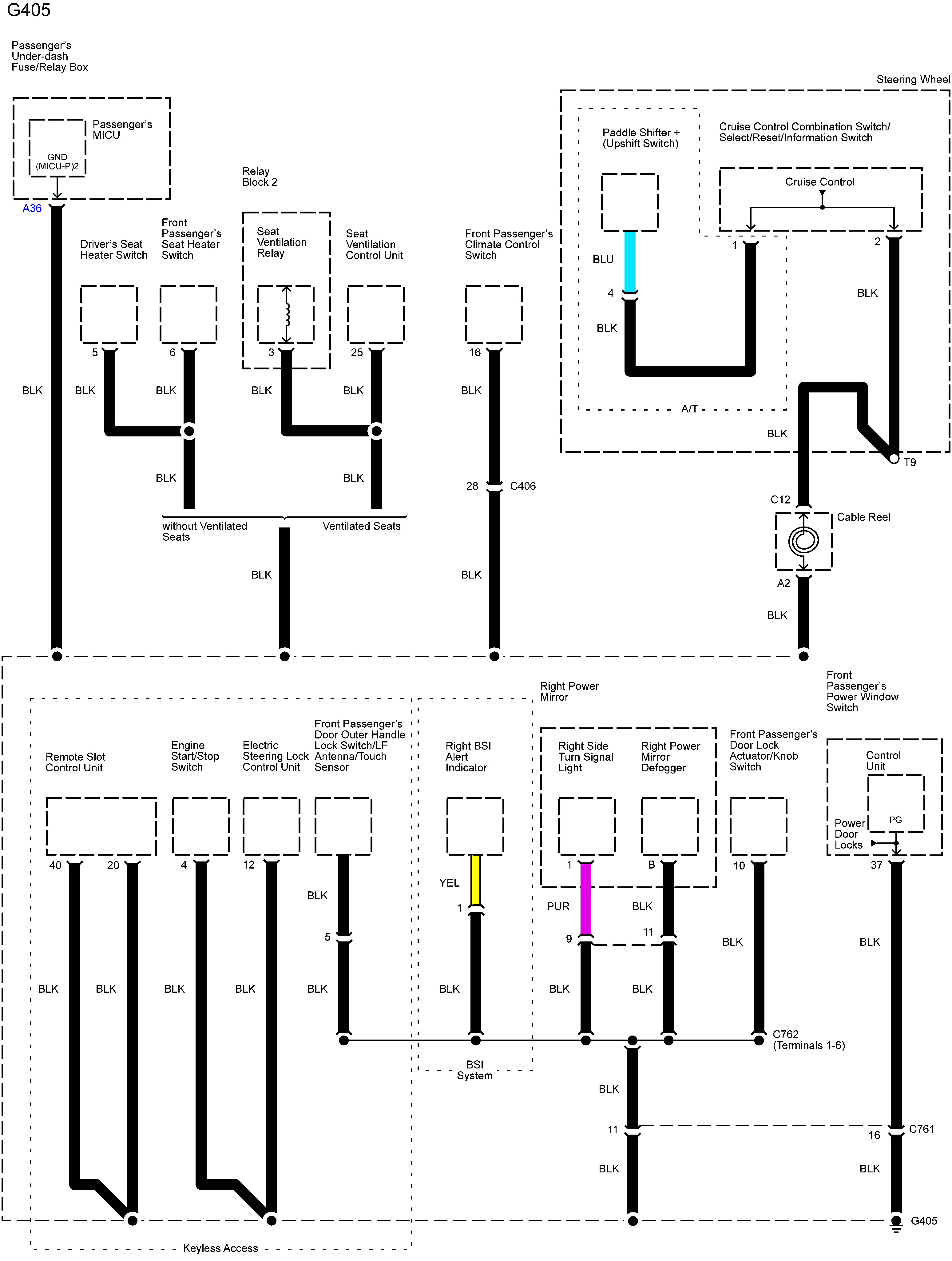

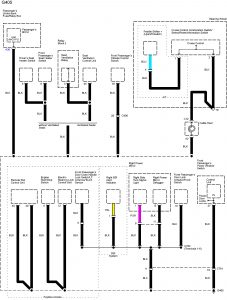

Acura TL - wiring diagram - ground distribution (part 15)
Acura TL – wiring diagram – ground distribution (part 15)

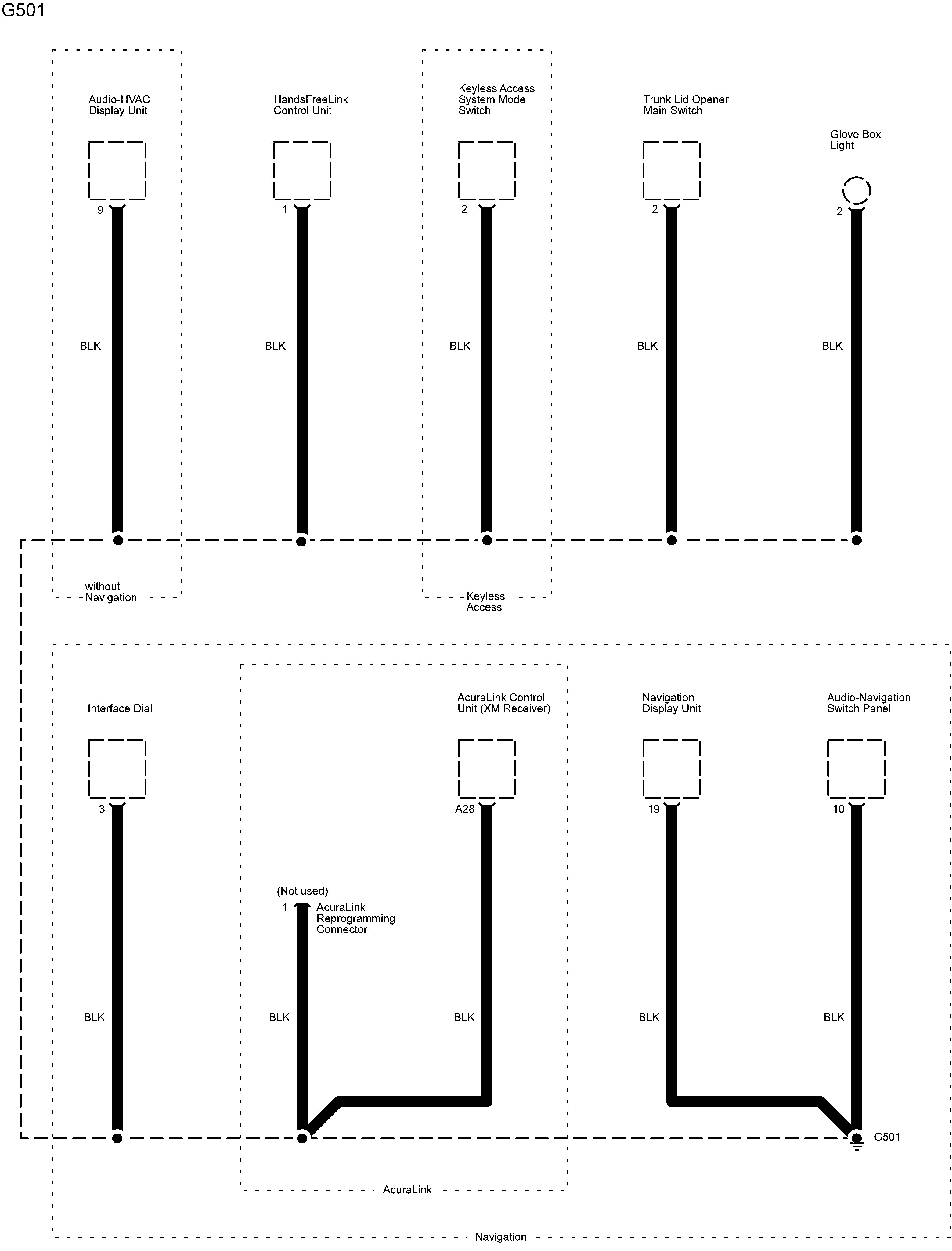

Acura TL - wiring diagram - ground distribution (part 16)
Acura TL – wiring diagram – ground distribution (part 16)

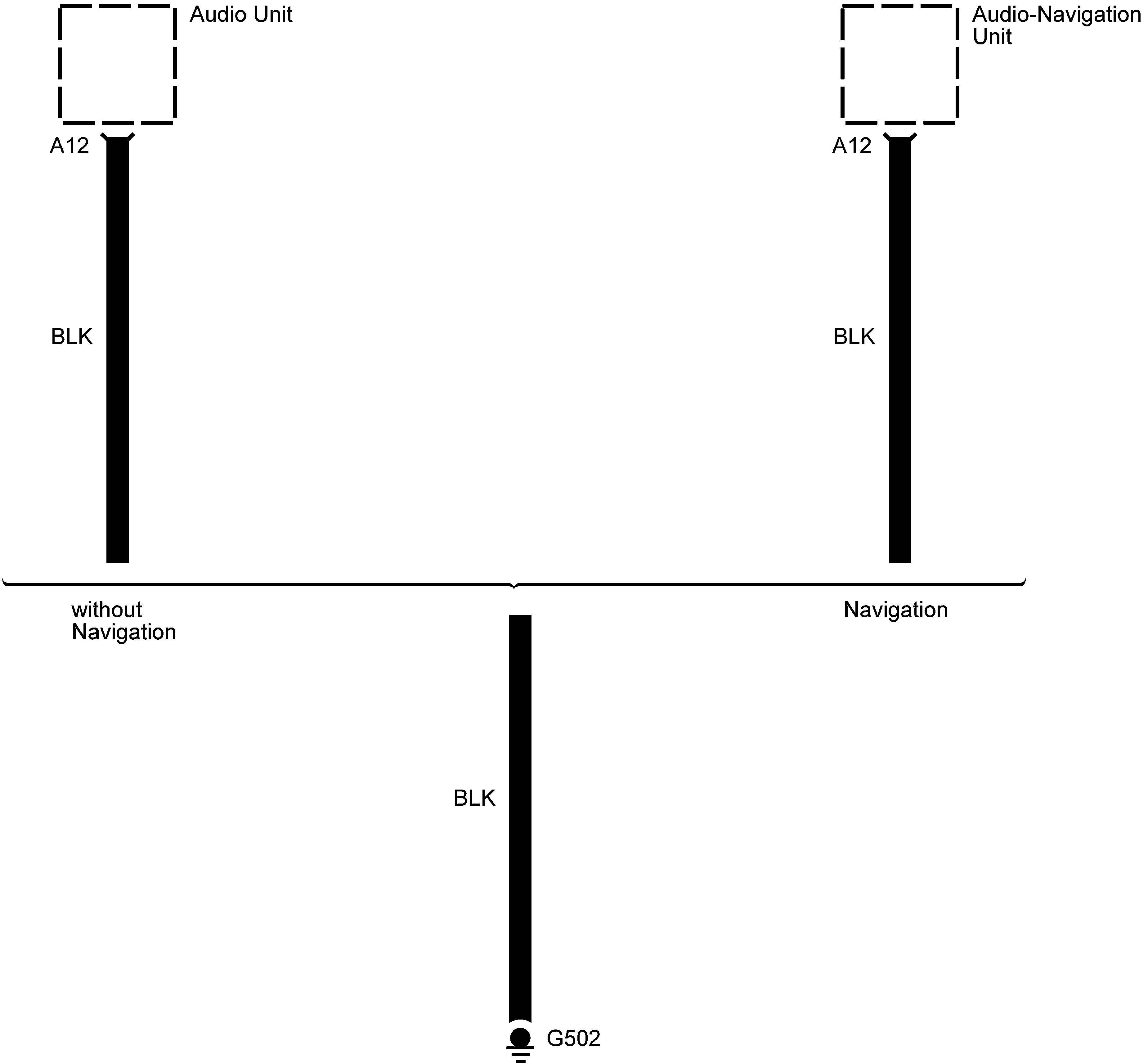

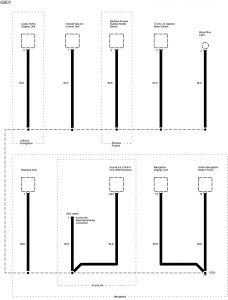

Acura TL - wiring diagram - ground distribution (part 17)
Acura TL – wiring diagram – ground distribution (part 17)

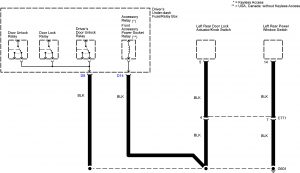

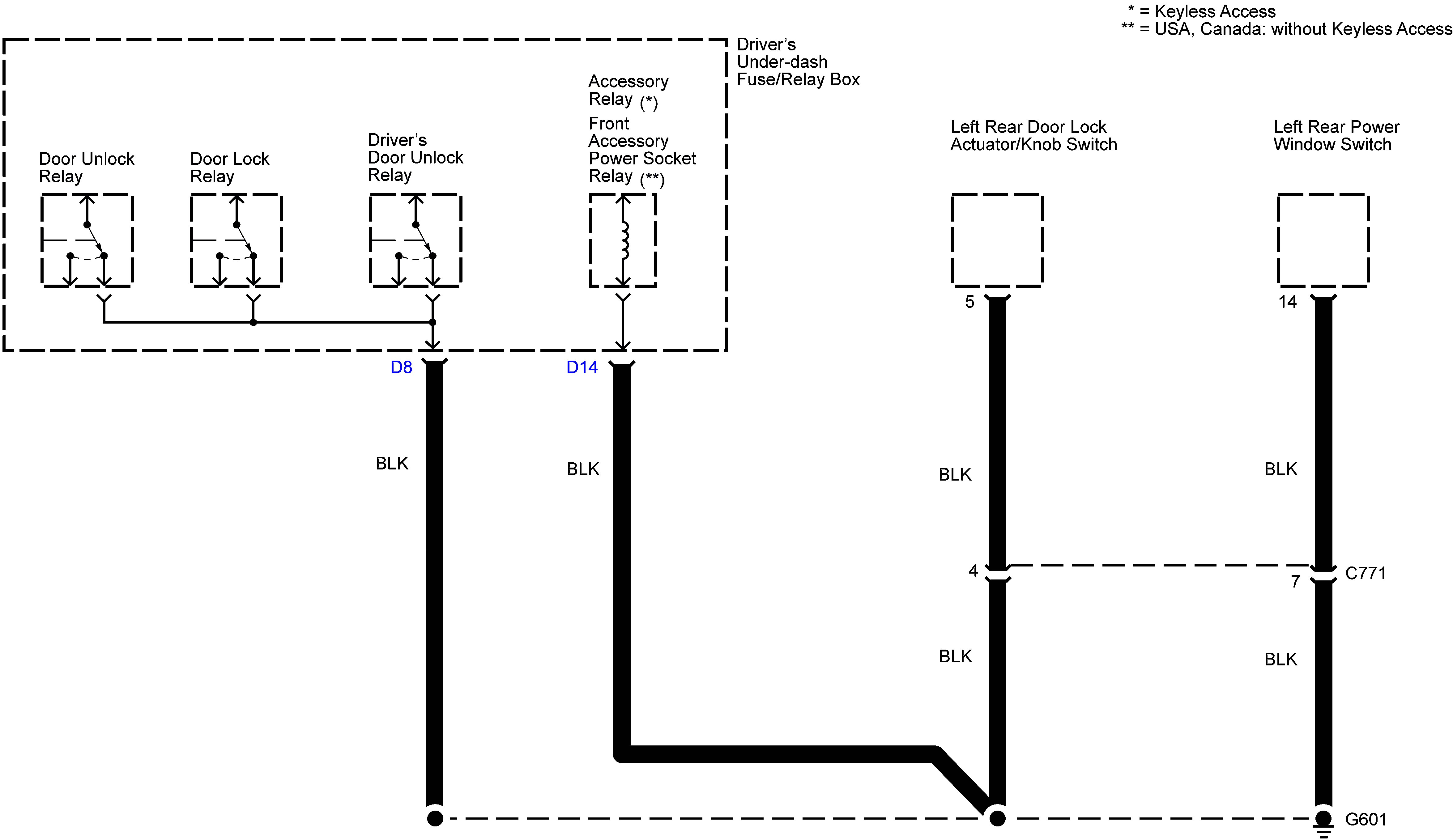

Acura TL - wiring diagram - ground distribution (part 18)
Acura TL – wiring diagram – ground distribution (part 18)

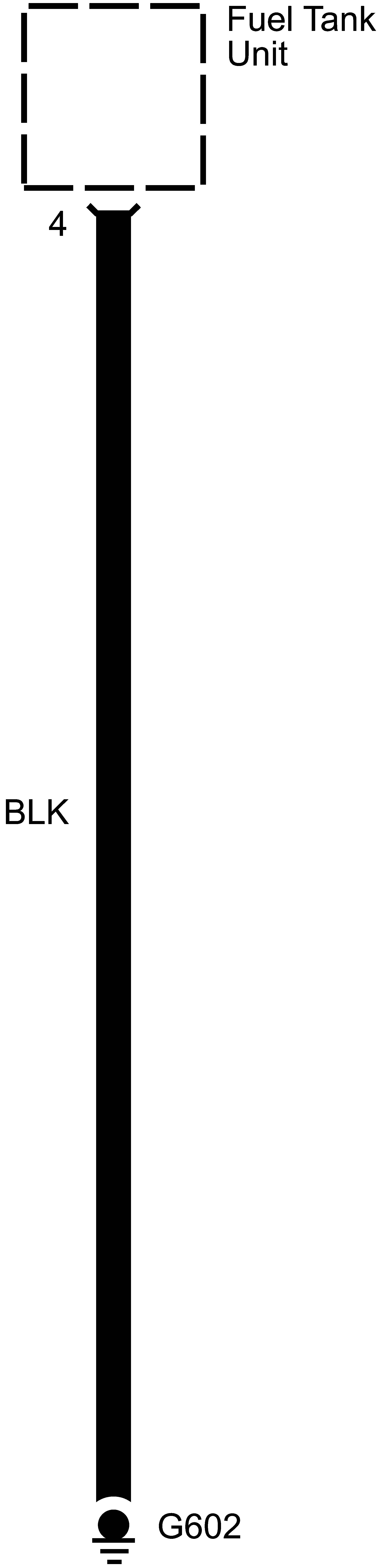

Acura TL - wiring diagram - ground distribution (part 19)
Acura TL – wiring diagram – ground distribution (part 19)

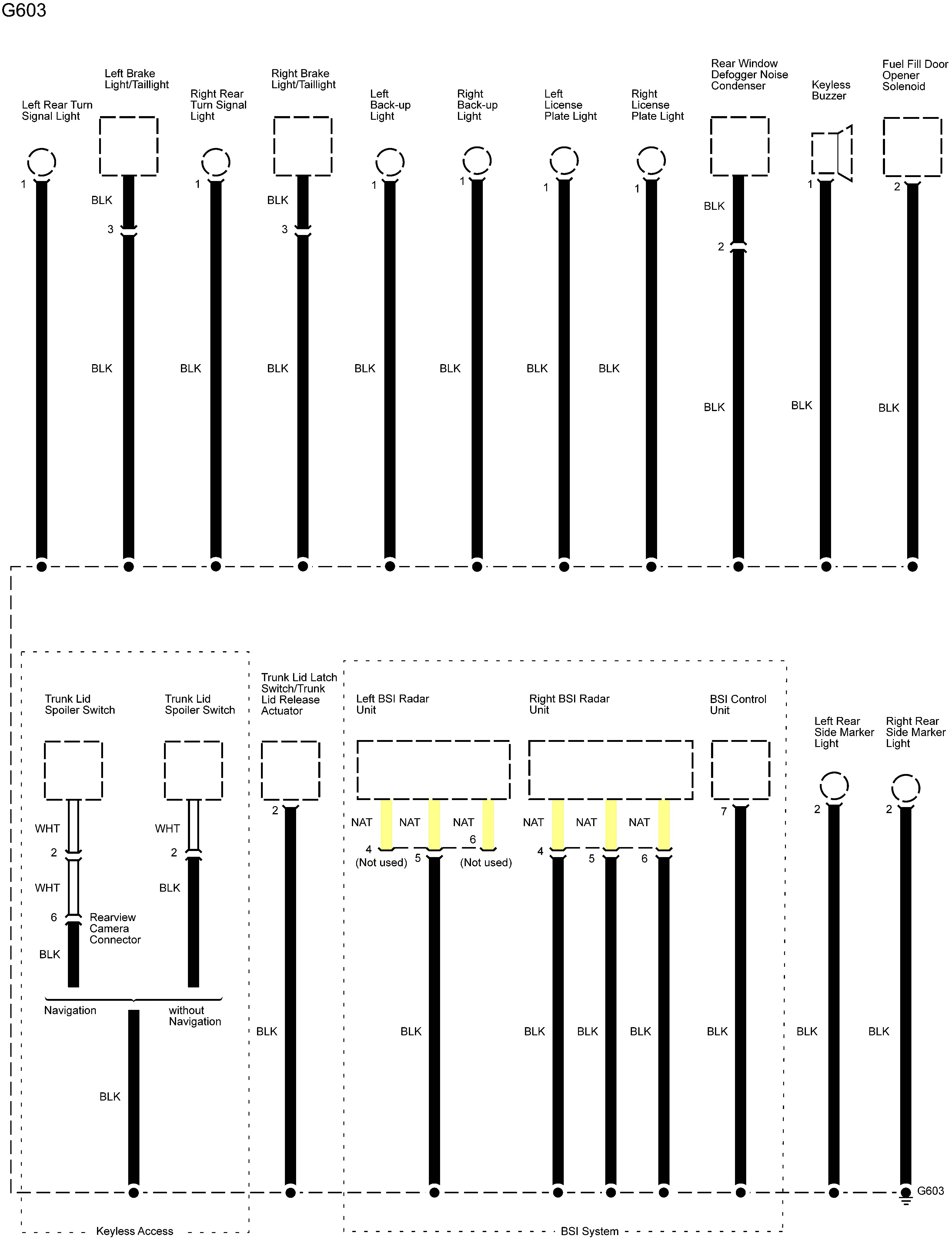

Acura TL - wiring diagram - ground distribution (part 20)
Acura TL – wiring diagram – ground distribution (part 20)
Acura TL - wiring diagram - ground distribution (part 21)
Acura TL – wiring diagram – ground distribution (part 21)

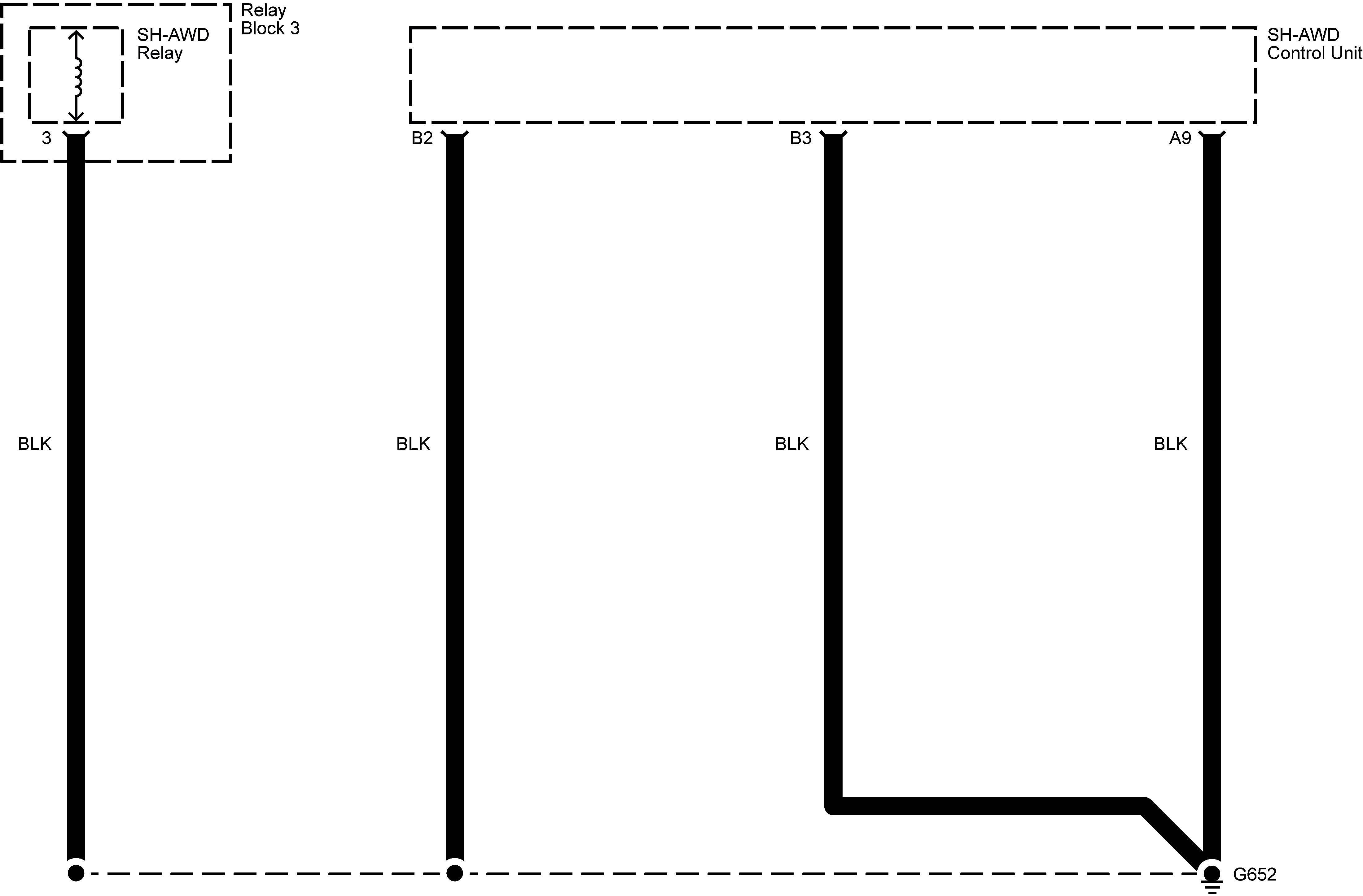

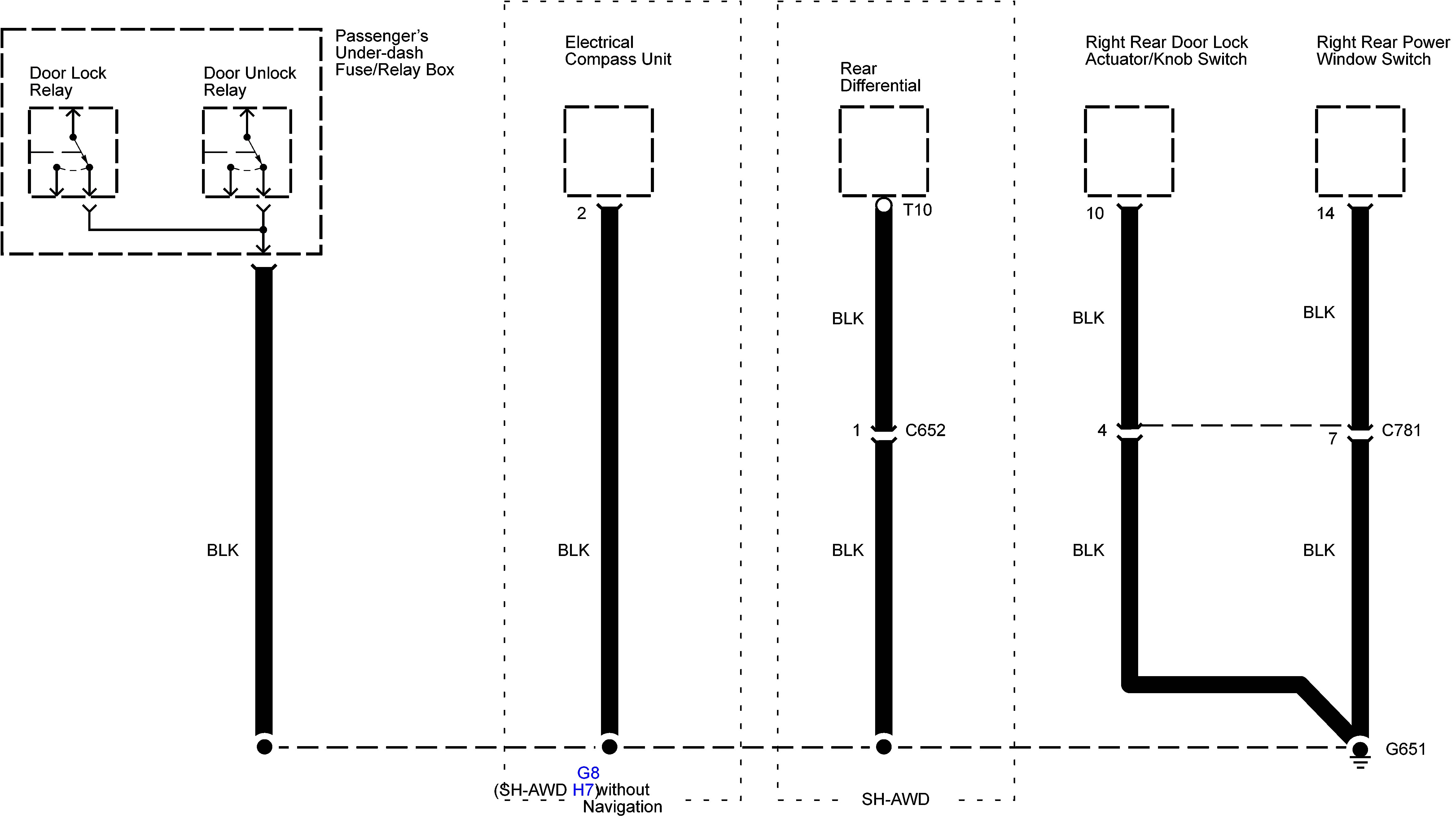

Acura TL - wiring diagram - ground distribution (part 22)
Acura TL – wiring diagram – ground distribution (part 22)

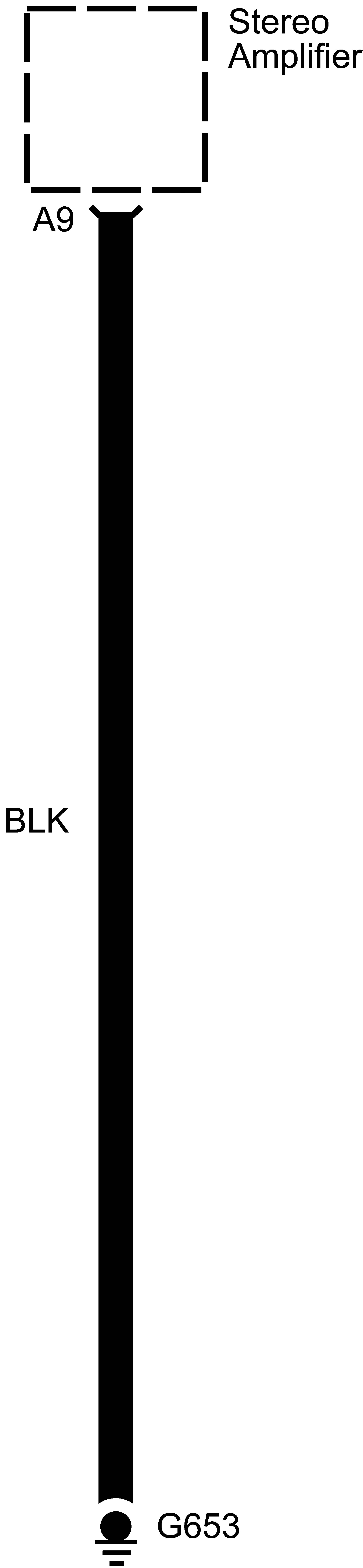

Acura TL - wiring diagram - ground distribution (part 23)
Acura TL – wiring diagram – ground distribution (part 23)

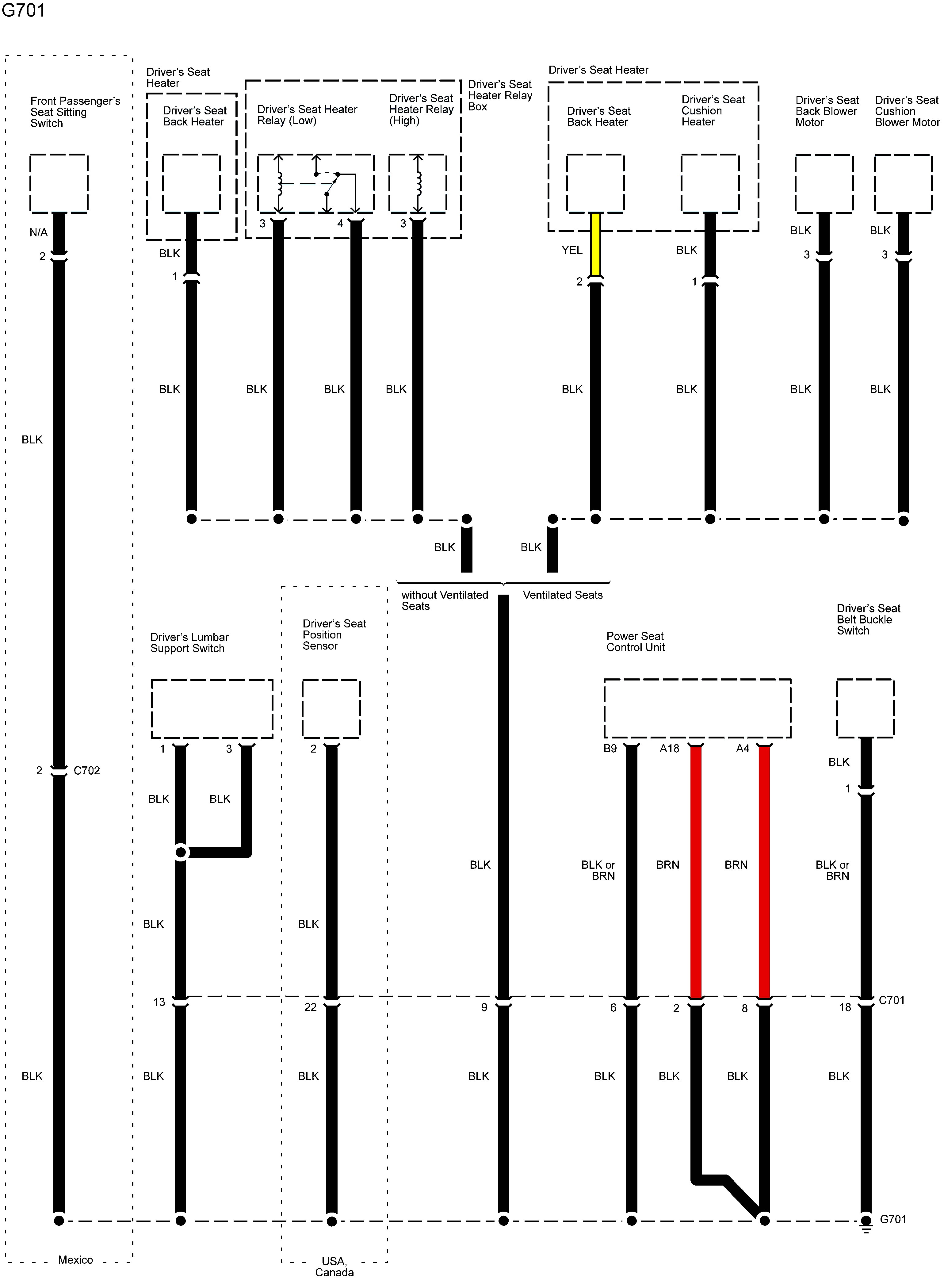

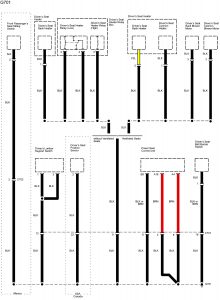

Acura TL - wiring diagram - ground distribution (part 24)
Acura TL – wiring diagram – ground distribution (part 24)

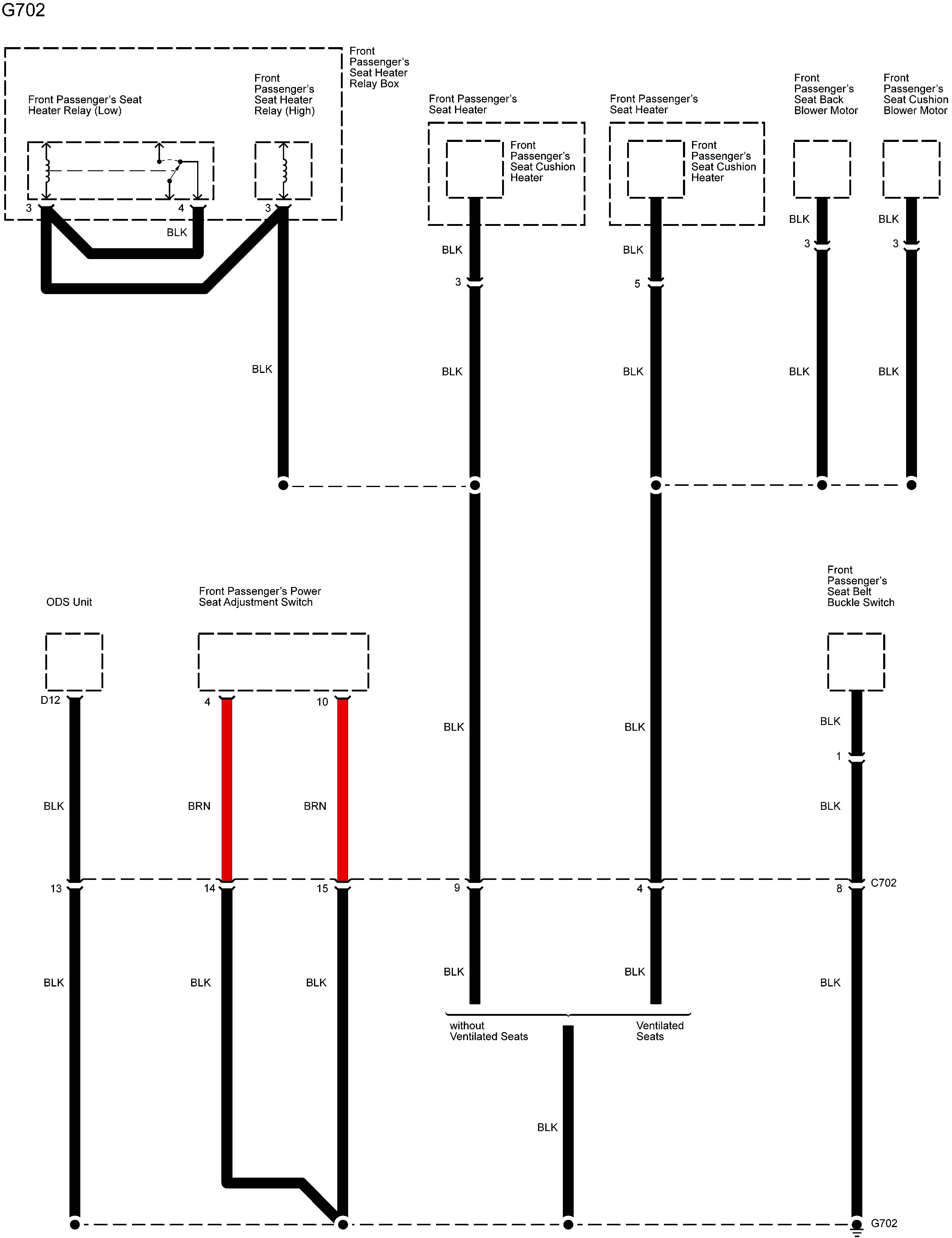

Acura TL - wiring diagram - ground distribution (part 25)
Acura TL – wiring diagram – ground distribution (part 25)

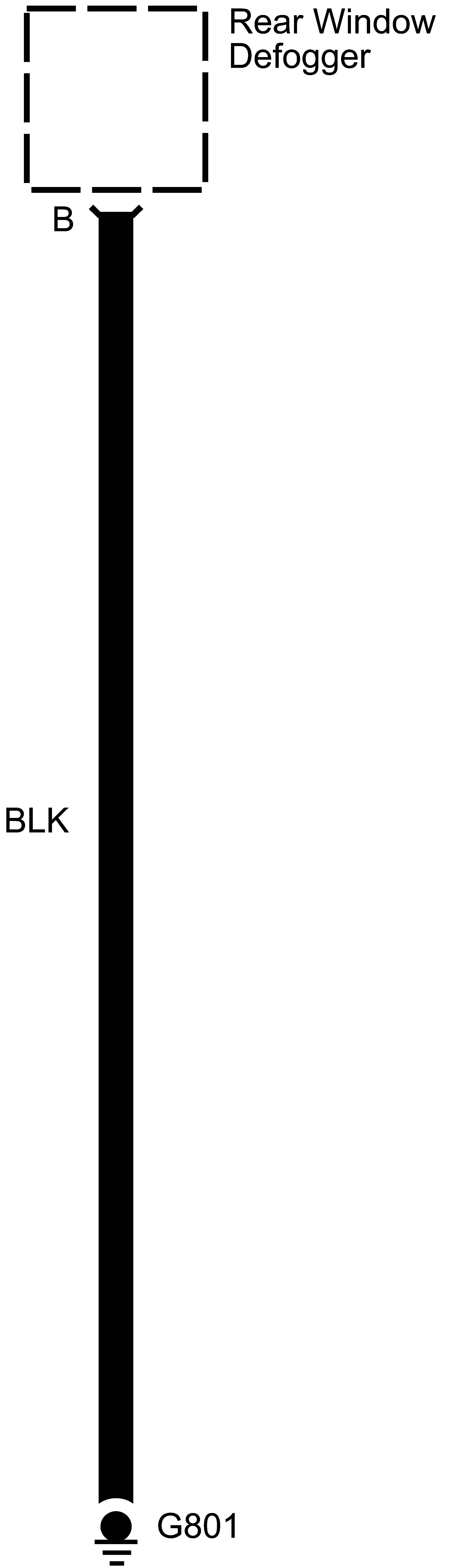

Acura TL - wiring diagram - ground distribution (part 26)
Acura TL – wiring diagram – ground distribution (part 26)

Version 2

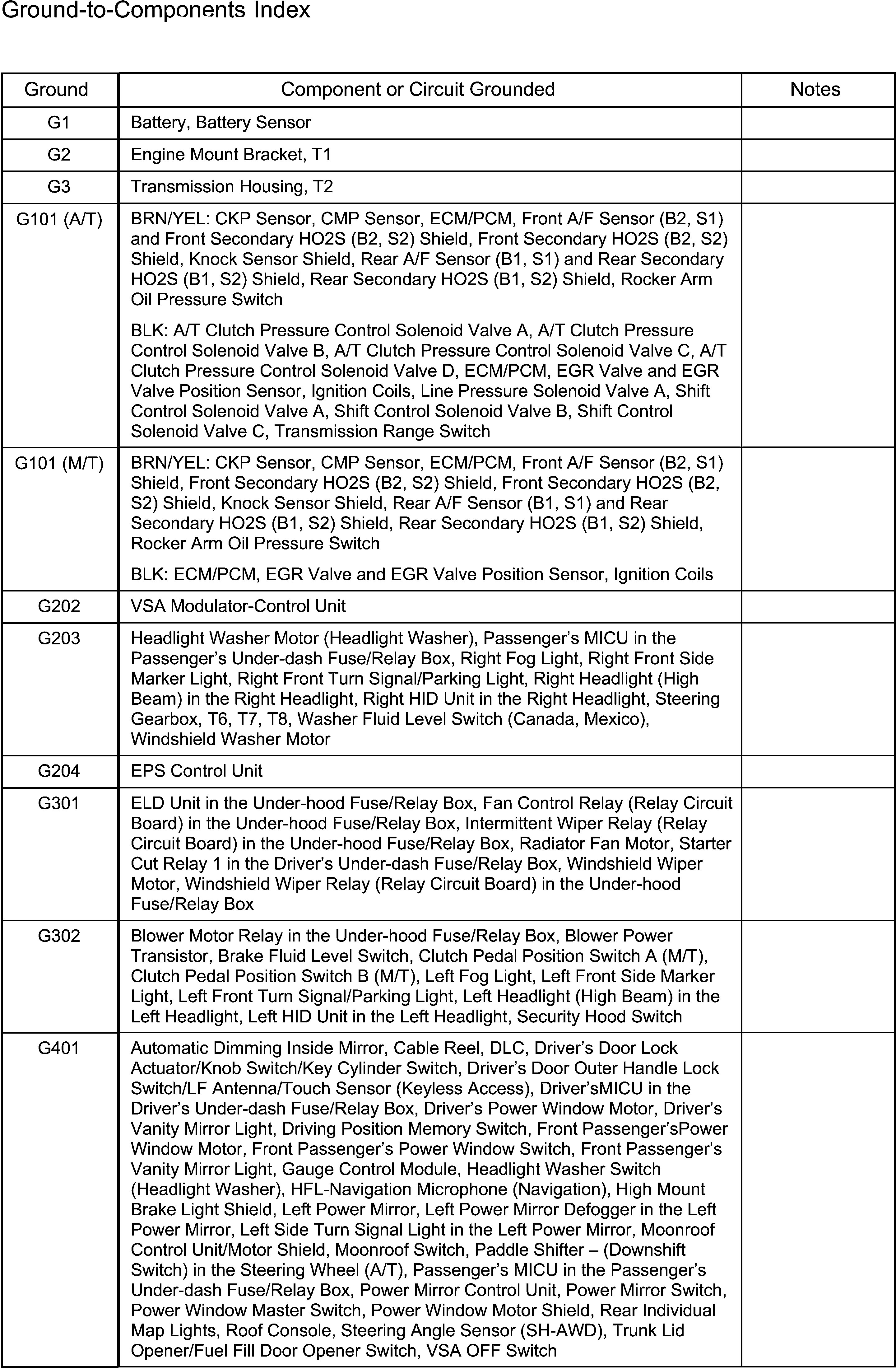

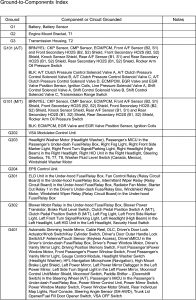

Acura TL - wiring diagram - ground distribution (part 1)
Acura TL – wiring diagram – ground distribution (part 1)

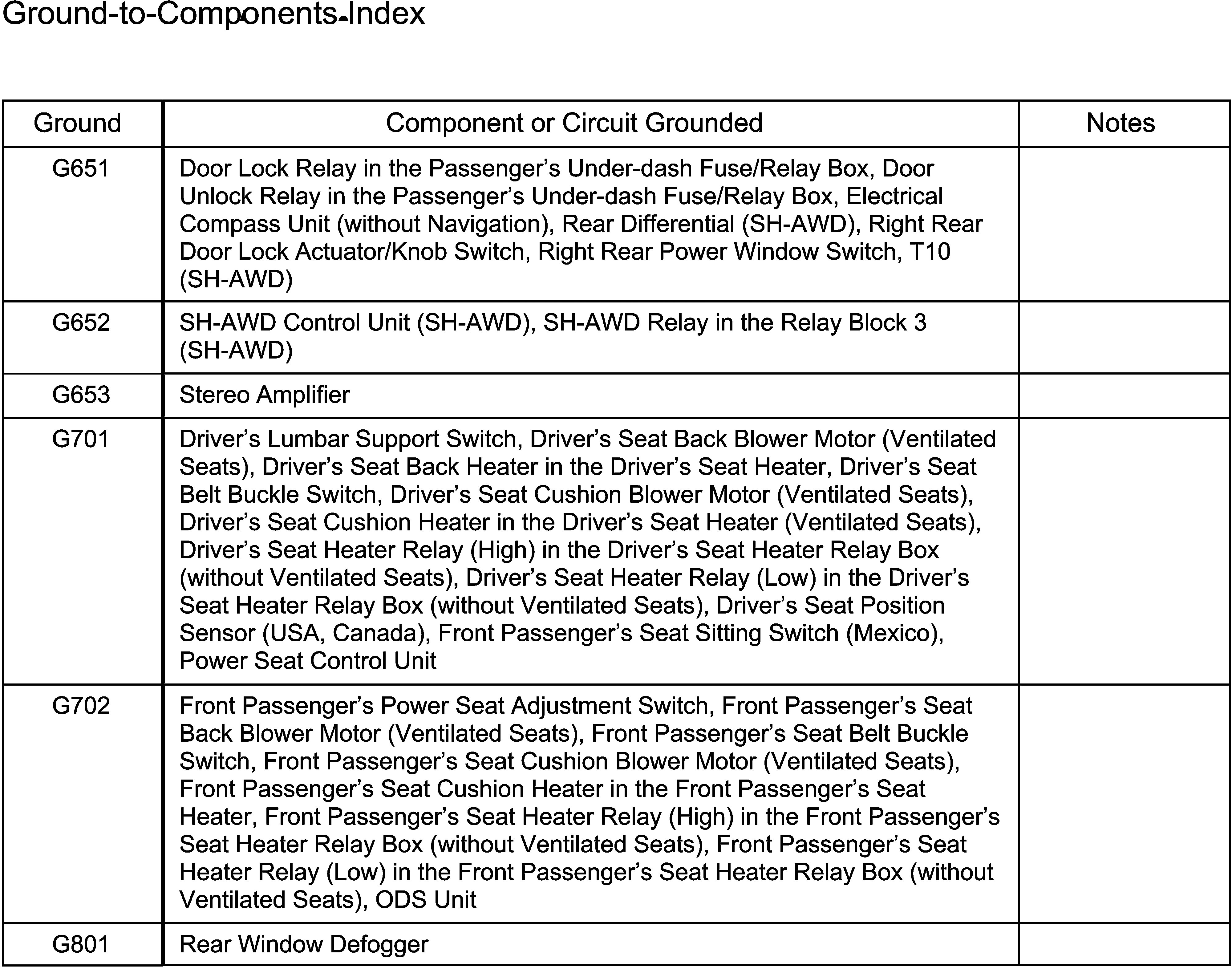

Acura TL - wiring diagram - ground distribution (part 2)
Acura TL – wiring diagram – ground distribution (part 2)

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
