TATA Safari – fuse box diagram

3 December 2017 admin Safari, TATA 0

Year of production:

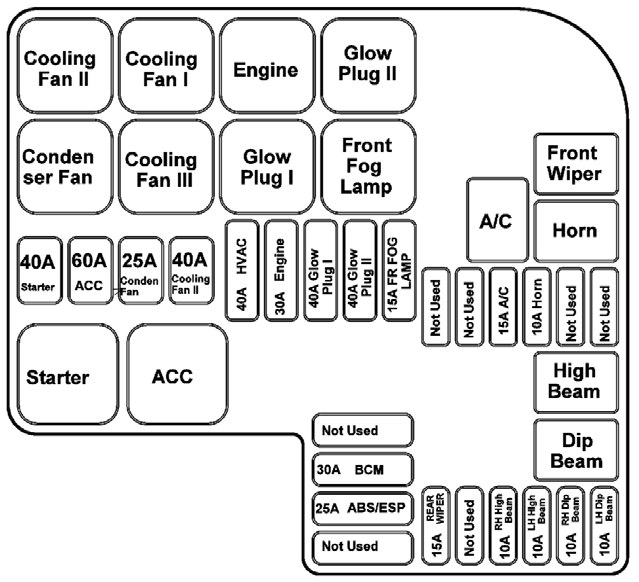

Engine compartment fuse and relay box

TATA Safari - fuse box - engine compartment
TATA Safari – fuse box – engine compartment

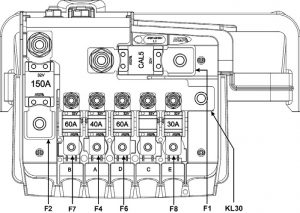

Battery mounted fuse and relay box

TATA Safari - fuse box - battery
TATA Safari – fuse box – battery
Fuse Rating Power consumer
F1 POWERVAL CAL5 STARTER MOTOR
F2 MEGAVAL 150 ALTERNATOR
F4 MIDIVAL 40 ABS
F6 MIDIVAL 60 IGNITION
F7 MIDIVAL 60 PCFB
F8 MIDIVAL 30 ENGINE COOLING FAN1

Cabin wiring harness fuse & relay box under the dashboard on driver side (right side)

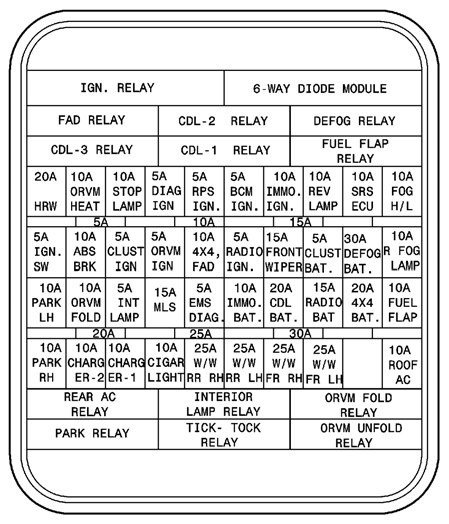

Option 1

TATA Safari - fuse box - dashboard (option 1)
TATA Safari – fuse box – dashboard (option 1)

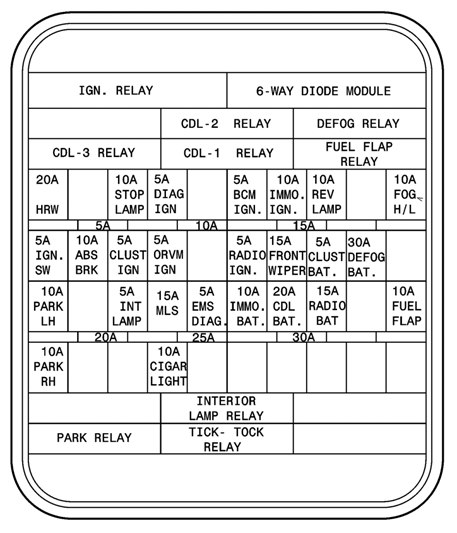

Option 2

TATA Safari - fuse box - dashboard (option 2)
TATA Safari – fuse box – dashboard (option 2)



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
