Suzuki SX4 (2006 – 2013) – fuse box diagram

Suzuki SX4 (2006 – 2013) – fuse box diagram

Year of production: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013

Fuses in the Engine Compartment (Petrol)

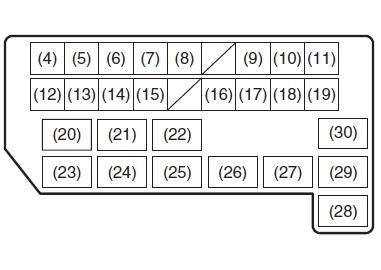

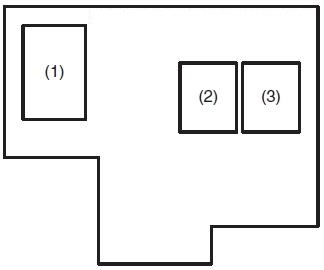

Suzuki SX4 - fuse box diagram - engine compartment (petrol)
Suzuki SX4 – fuse box diagram – engine compartment (petrol)

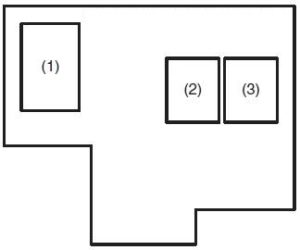

Suzuki SX4 - fuse box diagram - engine compartment (petrol)
Suzuki SX4 – fuse box diagram – engine compartment (petrol)
No.
A
Fused function
1 80 All electric load
2 50 Power window, Ignition, Wiper, Starter
3 50 Tail light, Rear defogger, Door lock, Hazard/Horn, Dome
4 Not used
5 Not used
6 15 Head light (Right)
7 15 Head light (Left)
8 20 Front fog light
9 Not used
10 40 ABS control module
11 30 Radiator fan
12 30 ABS control module
13 30 Starting motor
14 50 Ignition switch
15 30 Blower fan
16 20 Air compressor
17 15 Throttle motor
18 15 Automatic transaxle
19 15 Fuel injection
Relay
20 Automatic transaxle relay
21 Air compressor relay
22 Fuel pump relay
23 Condenser fan relay
24 Front fog light relay
25 Throttle motor relay
26 FI MAIN
27 Starting motor relay
28 Radiator fan relay
29 Radiator fan relay 2
30 Radiator fan relay 3

Fuses in the Engine Compartment (Diesel)

Suzuki SX4 - fuse box diagram - engine compartment (diesel)
Suzuki SX4 – fuse box diagram – engine compartment (diesel)
Suzuki SX4 - fuse box diagram - engine compartment (diesel)
Suzuki SX4 – fuse box diagram – engine compartment (diesel)
Suzuki SX4 - fuse box diagram - engine compartment (diesel)
Suzuki SX4 – fuse box diagram – engine compartment (diesel)
No.
A
Function/component
2 20 FI
3 10 INJ DVR
4 15 Head light (Right)
5 15 Head light (Left)
6 20 Front fog light
7 60 Power steering control module
8 40 ABS control module
0 30 Radiator fan
10 30 ABS control module
11 30 Starting motor
12 50 Ignition switch
13 30 Blower fan
14 10 Air compressor
15 20 Fuel, pump
16 30 CDSR
17 30 Fuel injection
29 50 IGN2
30 80 Glow Plug
31 30 Fuel Heater
32 140 Main
33 50 Lamp
34 30 Sub Htr1
35 30 Sub Htr 3
36 30 Sub Htr 2
37 +B2
38 +B1
1 FI Main relay
18 Not used
19 Air compressor relay
20 Fuel pump relay
21 Not used
22 Front fog light relay
23 Not used
24 Not used
25 Starting motor relay
26 Radiator fan relay
27 RDTR fan 3 relay
28 RDTR fan 2 relay

Fuses under the Dash Board

SX4

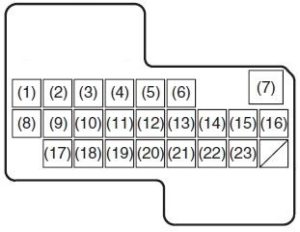

Suzuki SX4 - fuse box diagram - dashboard (SX4)
Suzuki SX4 – fuse box diagram – dashboard (SX4)

SX4 Sedan

Suzuki SX4 - fuse box diagram - dashboard (SX4)
Suzuki SX4 – fuse box diagram – dashboard (SX4)

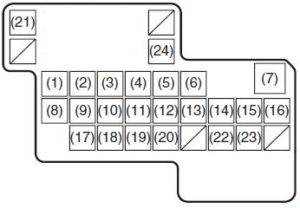

Suzuki SX4 - fuse box diagram - dashboard (SX4 Sedan)
Suzuki SX4 – fuse box diagram – dashboard (SX4 Sedan)
No.
A
Fused function
1 15 Rear wiper
2 15 Ignition coil
3 10 Back-up light
4 10 Meter
5 15 Accessory
6 15 Accessory 2
7 30 Power window
8 30 Wiper
9 10 IG1 SIG
10 15 Air bag
11 10 Anti-lock brake system
12 15 SX4: 4WD
Maruti: Tail light
13 15 Stop light
14 20 Door lock
15 10 ECU (Diesel only)
16 10 ST SIG
17 15 Seat heater
18 10 IG 2 SIG
19 10 Tail light
20 15 Dome
21 30 Rear defogger
22 15 Horn / Hazard
23 15 Audio
24 30 Sedan: Rear defogger

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
