The instrument panel fuse panel

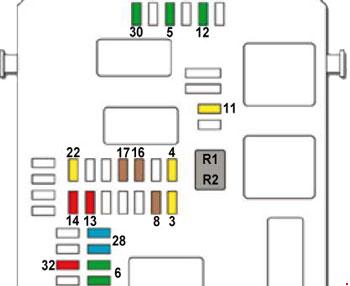

Citroen C4 – fuse box diagram – instrument panel
Citroen C4 – fuse box diagram – instrument panel

Citroen C4 – fuse box diagram – instrument panel
Citroen C4 – fuse box diagram – instrument panel
No.
A
Description
R1 Not used
R2 12 V socket in boot
F3 20 Parking lamps, trailer hazard warning lamps
F4 20 Interior lighting, trailer interface
F5 30 Front one-touch electric windows
F6 30 Rear one-touch electric windows
F11 20 12 V trailer socket
F12 30 Panoramic sunroof blind
F13 30 Hi-Fi amplifier
F22 20 Trailer signalling
F8 3 Alarm siren, alarm ECU
F13 10 Cigar lighter
F14 10 12V socket in boot
F16 3 Lighting for the large multifunctional storage unit, rear map reading lamps, glove box illumination
F17 3 Sun visor illumination, front map reading lamps
F28 15 Audio system, radio (after-market)
F30 20 Rear wiper
F32 10 Hi-Fi amplifier
F36 15 Rear 12 V socket
F37 Not used
F38 Not used
F39 Not used
F40 Not used

Engine compartment fuse box

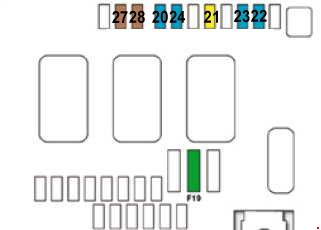

Citroen C4 – fuse box diagram – engine compartment
Citroen C4 – fuse box diagram – engine compartment
No.
A
Description
F19 30 Windscreen wipers slow/fast speed
F20 15 Front and rear screenwash pump
F21 20 Headlamp wash pump
F22 15 Horn
F23 15 Right-hand main beam headlamp
F24 15 Left-hand main beam headlamp
F27 5 Left-hand dipped headlamp
F28 5 Right-hand dipped headlamp

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market..
