Subaru Impreza (1992 – 1998) – fuse box diagram

Subaru Impreza (1992 – 1998) – fuse box diagram

Year of production: 1992, 1993, 1994, 1995, 1996, 1997, 1998

Passenger Compartment Fuse Box

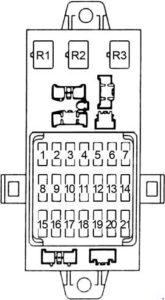

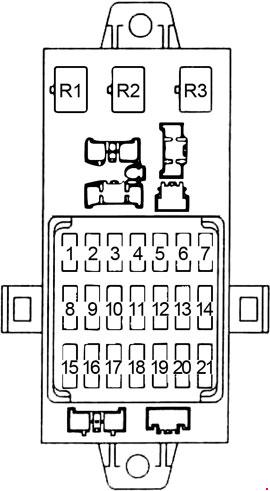

Subaru Impreza - fuse box diagram - passenger compartment
Subaru Impreza – fuse box diagram – passenger compartment
No. A Circuits Protected
1 15 Back-Up Light, Back-Up Light Switch (M/T), Inhibitor Switch (A/T), Hazard Switch
2 20 Front Wiper Motor, Front Washer Motor, Combination Switch, Rear Wiper Relay, Rear Washer Motor
3 15 ’92-’96: Cigarette Lighter, Power Mirror
20 ’97-’98: Cigarette Lighter, Main Fan Relay 1, Power Mirror
4 15 ’92-’96: Front Fog Light Relay
10 ’97-’98: Rear Combination Light, Trailer Connector, License Plate Light
5 10 Front Clearance Light, Rear Combination Light, Trailer Connector, License Plate Light, Parking Switch
6 ’92-’96:  –
15 ’97-’98: Front Fog Light Relay
7 20 Rear Defogger
8 10 ’92-’96: ABS
15 ’97-’98: Airbag Control Module
9 10 Combination Meter, Illumination Control Unit, Cruise Control Main Switch, Bright Switch, Front Fog Light Relay, Rear Fog Light Relay, Illumination Light: Headlight Washer Switch, Front Fog Light Switch, Hazard Switch, Air Conditioner/Blower Control Panel, Headlight Leveling Switch, A/T Selector Lever, Rear Fog Light Switch, Radio, Cigarette Lighter, CD, Rear Defogger Switch
10  –
11 20 Power Locks, Door Lock Timer
12 20 Stop Light Switch (Stop and Brake Light Switch), Horn Relay
13 20 Main Fan Relay 2
14 10 Engine Control Module, A/T Control Module
15 10 Blower Motor Relay, Fresh/Recirculation Actuator, Air Conditioner/Blower Control Panel, Check Connector, Combination Meter, Vehicle Speed Sensor, Headlight Leveling Switch, Headlight Leveler LH/RH, Headlight Washer Switch, Power Window and Sunroof Relay, Rear Fog Light Switch, Rear Fog Light Relay (without front fog light)
16 15 Diode, Fuel Pump Relay, Engine Control Module, Ignition Coil, Immobiliser Control Module, Airbag Control Module
17 15 Radio, Clock
18 15 ’92-’96: ABS G-Sensor (AWD-M/T), ABS Control Module (AWD-M/T), Cruise Control Main Switch, Cruise Control Module
10 ’97-’98: ABS
19 20 ABS
20 15 Blower Motor Relay
21 15 Blower Motor Relay
Relay
R1 Rear Window Defogger
R2 Tail and Illumination
R3 Main Electric Cooling Fan

Engine Compartment Fuse Box

Subaru Impreza - fuse box diagram - engine compartment
Subaru Impreza – fuse box diagram – engine compartment
No. A Circuits Protected
22 15 Turn Signal and Hazard, Hazard Switch
23 20 Rear Fog Light Relay, Parking Switch
24 15 Headlight LH
25 10 Stop Light, Combination Meter, Room Light, Luggage Room Light, Trailer Connector, Clock, Radio, Door Lock Timer, Spot Light
26 15 Headlight RH, Combination Meter (Hi-Beam), Rear Fog Light Relay (without front fog light)
27  —
28  —
29  —
30 20 Air Conditioning Fan
31 10 Air Conditioning
32 30 Headlight Washer Module, Power Window and Sunroof Circuit Breaker
33 30 Main Relay, Fuel Punp Relay, Engine Control Module, Immobiliser Control Module, Fuse: “11”
34 45 Fuse: “4”, “12”, “19”, “20”, “21”, “25”
35 45 Ignition Switch
36 45 Fuse: “7”, “13”, “14”
37  —
38 45 ABS
39 Generator, ABS, Fuse: “30”, “34”
Relay
R1 Headlight LH
R2 Headlight RH
R3 Air Conditioning
R4 Air Conditioning Fan
R5 Electric Cooling Fan
R6 Air Conditioning Fan

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
