Subaru Impreza (2017 – 2019) – fuse box diagram

Subaru Impreza (2017 – 2019) – fuse box diagram

Year of production: 2017, 2018, 2019

Fuse panel located in passenger compartment

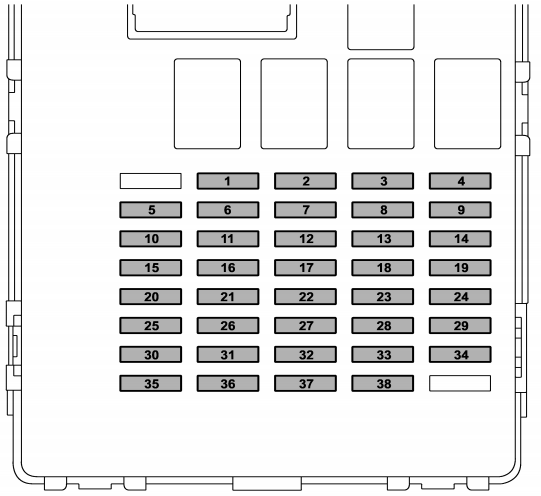

Subaru Impreza - fuse box - passenger compartment
Subaru Impreza – fuse box – passenger compartment
Fuse Ampere rating [A] Circuit
1
2 20 CIGAR SEAT/H
3 7,5 IG A-1
4 15 AUDIO NAVI
5 15 IG B-2
6
7 15 12V SOCKET
8 15 A/C IG
9 7,5 ACC
10 7,5 IG B-1
11
12
13 7,5 IG A-3
14 7,5 UNIT +B
15 7,5 METER IG
16
17 7,5 MIRROR
18 7,5 LAMP IG
19 10 IG A-2
20 10 SRS AIR BAG
21
22 15 STRG/H
23 10 DRL
24
25
26 10 BACK UP
27
28 20 TRAIL R.FOG
29
30
31
32 7,5 ILLUMI
33 7,5 KEY SW A
34
35
36 7,5 KEY SW B
37 7,5 STOP
38 7,5 EYE SIGHT



Fuse panel located in the engine compartment

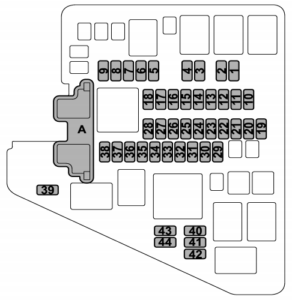

Subaru Impreza - fuse box - engine compartment
Subaru Impreza – fuse box – engine compartment
Fuse Ampere rating [A] Power consumer
1 7,5 HORN 2
2 7,5 HORN 1
3 15 H/L LO RH
4 15 H/L LO LH
5 7,5 ACTGS
6 10 H/L HI RH
7 10 H/L HI LH
8 10 TAIL
9 10 ODS
10 7,5 OBD
11 7,5 PU B/UP
12 30 JB-B
13 15 HAZARD
14 20 FUEL
15 7,5 D-OP+B
16 10 MB-B
17 15 D/L
18 10 DCM
19 20 TCU
20 7,5 CVT SSR
21 15 IG COIL
22 10 AVCS
23 10 E/G2
24
25
26 20 O2 HTR
27 15 E/G1
28
29 30 BACKUP
30 25 R. DEF
31 20 AUDIO
32 30 VDC SOL
33 25 MAIN FAN
34 25 SUB FAN
35 10 DEICER
36 15 F. FOG
37 15 BLOWER
38 15 BLOWER
39
40 30 F. WIPER
41 15 F. WASH
42 15 R. WIPER
43
44

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
