Subaru Impreza (1999 – 2001) – fuse box diagram

Subaru Impreza (1999 – 2001) – fuse box diagram

Year of production: 1999, 2000, 2001

Passenger Compartment Fuse Box

Subaru Impreza - fuse box diagram - passenger compartment
Subaru Impreza – fuse box diagram – passenger compartment
No. A Circuits Protected
1 15 Heater fan
2 15 Heater fan
3 15 Spare
4 20 Front accessory power socket, Cigarette lighter, Remote controlled rear view mirrors
5 10 Tail light, Parking light
6 15 SRS airbag
7 15 Fog light
8 20 ABS solenoid
9 15 Radio, Clock
10 15 Spare
11 15 Engine ignition system, SRS airbag
12 10 Illumination brightness control
13 15 Spare
14 15 AT shift lock unit, ABS control, Cruise control
15 20 Windshield wiper and washer, Rear window wiper and washer
16 20 Brake light
17 15 Air conditioner
18 15 Backup light, Turn light, SRS airbag system warning light
19 20 Rear accessory power socket, Seat heater

Engine Compartment Fuse Box

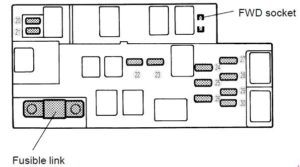

Subaru Impreza - fuse box diagram - engine compartment
Subaru Impreza – fuse box diagram – engine compartment
No. A Circuits Protected
20 20 Radiator cooling fan (Main)
21 20 Radiator cooling fan (Sub)
22 20 Rear window defogger
23 15 Hazard warning flasher, Horn
24 15 Power door lock
25 10 Automatic transmission control unit
26 10 Alternator
27 15 Headlight (right side)
28 15 Headlight (left side)
29 20 Lighting switch
30 15 Clock, Interior light

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
