Saturn VUE Hybrid (2009) – fuse box diagram

Saturn VUE Hybrid (2009) – fuse box diagram

Year of production: 2009

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver side of the engine compartment, near the battery.

Saturn VUE - fuse box - engine compartment
Saturn VUE – fuse box – engine compartment
Fuses Usage
FAN MAIN Cooling Fan Main
REAR/WPR Rear Wiper Motor
FAN AUX Cooling Fan Auxiliary
ECM/ TCM/SGCM Engine Control Module/ Transmission Control Module/ Serial Data Gateway Communication Module
ECM Engine Control Module
ENG-3 Engine 3
ENG-2 Engine 2
ENG-1 Engine 1
HYBRID BEC Hybrid BEC
RUN Run
S/ROOF Sunroof Module
HTD/SEAT Heated Seat Control Module
BCM Body Control Module
STRTR Starter Motor
WPR Windshield Wiper
4WD/ESCM All-Wheel Drive System
ABS Antilock Brake System Module
I/P BEC Instrument Panel Bussed Electrical Center
FRT FOG Front Fog Lamps
I/P BEC Instrument Panel Bussed Electrical Center
DRL Daytime Running Light
T/LAMP RT Right Marker and Parking Lamps
T/LAMP LT Left Marker and Parking Lamps
TRLR T/LAMP Trailer Parking Lamps
HDLP HI LT Passenger Side High-Beam Headlamp
STOP LP Stoplamps
DEFOG Defroster Fog
HDLP LO RT Driver Side Low-Beam Headlamp
HDLP LO LT Passenger Side Low-Beam Headlamp
HDLP HI RT Driver Side High-Beam Headlamp
OSRVM HTR Outside Rearview Mirror Heating



Relays Usage
FAN MAIN RLY Cooling Fan Main Relay
FAN CTRL RLY Cooling Fan Control Relay
FAN AUX RLY Cooling Fan Auxiliary Relay
PWR/ TRN RLY Engine Control Module/CAM, Canister, Injectors, Electronic Throttle Control Relay
STRTR RLY Starter Relay
RUN RLY Run Relay
A/C CLTCH RLY Air Conditioning Compressor Relay
WPR SPD RLY Windshield Wiper Speed Relay
HORN RLY Horn Relay
WPR CNTRL RLY Windshield Wiper Control Relay
T/LAMP RLY Parking Lamp Relay
HDLP HI RLY High-Beam Headlamp Relay
HDLP LO RLY Low‐Beam Headlamp Relay
FRT FOG RLY Front Foglamp Relay
STOP LP RLY Stoplamp Relay
DEFOG RLY Defogger Relay

Instrument Panel Fuse Block

The instrument panel fuse block is located on the passenger side of the lower console.

Saturn VUE - fuse box - instrument panel
Saturn VUE – fuse box – instrument panel
Fuses Usage
PWR SEAT Power Seat
PASS P/WIN Passenger Side Power Window
DRIV P/WIN Driver Side Power Window
S/ROOF Sunroof Module
CIGAR Cigarette Lighter
ECM/TCM Engine Control Module (ECM)/ Transmission Control Module (TCM)
FSCM Fuel Storage Control Module
ISRVM Inside Rearview Mirror
CLUSTER Instrument Panel Cluster
AIR BAG Airbag System
OSRVM Outside Rearview Mirror
KEY CAP Key Capture Solenoid
WHL S/W Steering Wheel Switch
F/DR LCK Front Driver Door Lock
APO2 Accessory Power Outlet 2
BCM (VB3) Body Control Module (BCM) (VB3)
DR LCK Door Lock
BCM (VB6) Body Control Module (VB6)
BCM (VB4) Body Control Module (VB4)
BCM (VB5) Body Control Module (VB5)
TRL Trailer
AIRCON Air Conditioner
AUDIO Audio
BCM (VB7) Body Control Module (VB7)
IGN SW Ignition Switch
AIR BAG Air Bag System
WASHER Washer Pump
APO1 Accessory Power Outlet 1
FSCM Fuel Storage Control Module
RR CLR Rear Closure
BCM (VB2) Body Control Module (VB2)
DRL Daytime Running Light
BCM (VB1) Body Control Module (VB1)
ONSTAR OnStar®



Relays Usage
RELAY ACC/RAP Accessory, Retained Accessory Power (RAP) Relay
RELAY RUN/ CRANK Run/Crank Relay

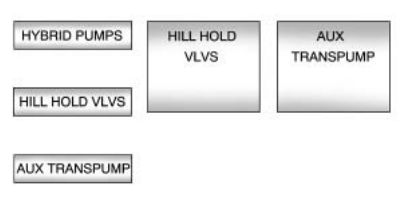

Saturn VUE Hybrid - fuse box - engine compartment
Saturn VUE Hybrid – fuse box – engine compartment
Fuses Usage
HYBRID PUMPS Hybrid Pumps
HILL HOLD VLVS Hill Hold Valves
AUX TRANSPUMP Auxiliary Transmission Pump



Relays Usage
HILL HOLD VLVS Hill Hold Valves
AUX TRANSPUMP Auxiliary Transmission Pump

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
