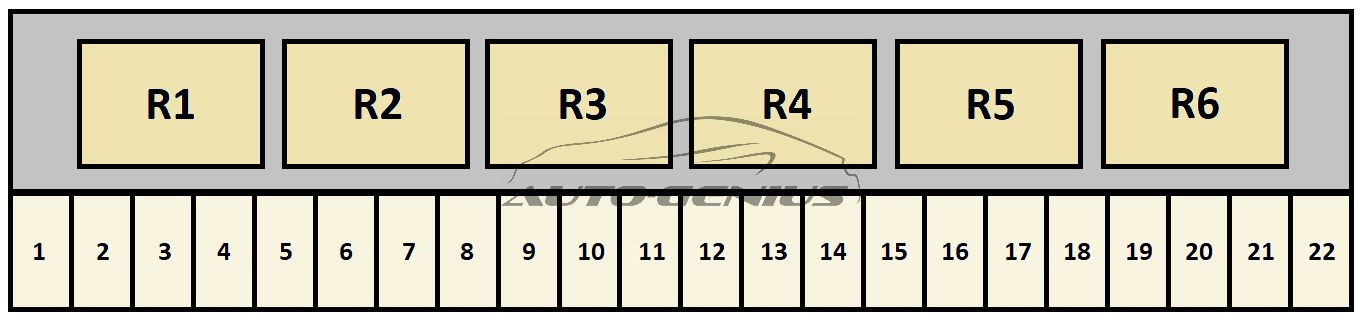

Renault Maxity (2007 – 2018) – fuse box diagram 22 December 2019 admin Maxity, Renault 0 Renault Maxity (2007 – 2018) – fuse box diagram Year of production: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018 Fuse box diagram in dashboard Renault Maxity – fuse box diagram – instrument panel № Symbol A Protected Component 1 +Battery 10 2 10 Interior light 3 15 4 7,5 5 10 Direction 6 15 Heated mirror 7 20 8 15 9 15 10 15 11 15 Horn 12 20 Engine 13 +Accessory 15 Radio, lighter 14 20 Air condition 15 10 Washer 16 +Ignition 10 Air bag 17 15 18 7,5 19 10 20 +Lighting 7,5 21 7,5 22 + BAT 10 Relay R1 R2 — — R3 R4 R5 ECU R6 Hazard WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market. Electrical DistributionFuse panel
