Renault Megane (2003 – 2009) – fuse box diagram

Renault Megane (2003 – 2009) – fuse box diagram

Year of production: 2003, 2004, 2005, 2006, 2007, 2008, 2009

Passenger Compartment Fuse Box

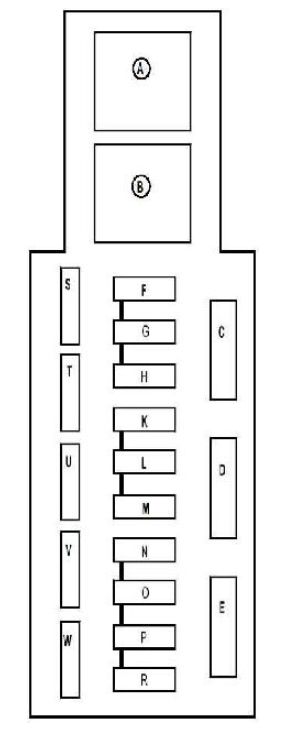

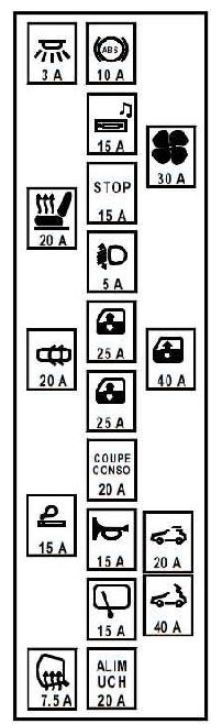

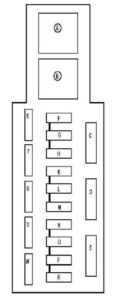

Renault Megane - fuse box diagram - passenger compartment
Renault Megane – fuse box diagram – passenger compartment



Renault Megane - fuse box diagram - passenger compartment
Renault Megane – fuse box diagram – passenger compartment
Number Ampere rating [A] Allocation
C 30 Passenger compartment ventilation
D 40 Rear electric windows or electric windows relay
30 Rear electric windows or electric windows relay
E 20 K84 and L84: Electric sunroof
40 E84: Sunroof hydraulic unit relay
F 10 ABS computer or Electronic Stability Program
G 15 Radio – multifunction display – headlight washer pump relay – headlight washer pump relay 2 – first row cigarette lighter (on K84 and L84) – driver and passenger heated seat – bi-directional windscreen and rear screen washer pump – diesel heater relay – air conditioning control panel – air conditioning control unit – rigid retractable roof computer (on E84) – return sensor (on E84) – interior rear-view mirror (on E84) – Central communication unit – Central alarm unit
H 15 Brake lights
K
L 25 Driver’s electric window
M 25 Passenger electric window – electric windows relay
N 20 Consumer cut-out:
Instrument panel
Radio
Multifunction display
Electric door mirror switch
Alarm control unit
O 15 Main electromagnetic horn – diagnostic socket – headlight washer pump relay – headlight washer pump relay 2 – rigid retractable roof computer (on E84) – driving school monitor control
P 15 Rear screen wiper motor (on K84)
R 20 UCH air conditioning control unit – accessories relay 1
S 3 K84 and L84: Passenger compartment temperature sensor fan – interior rear-view mirror – light and rain sensor
T 20 Passenger and driver’s heated seat
U 20 Door electric locking or dead-locking
V 15 E84: Cigarette lighter
W 7,5 Passenger and driver’s heated door mirrors
RELAY
A 40 Electric window
B 40 Accessories 1

Passenger Compartment Relay Box

This unit is located under the dashboard on the left-hand side of the passenger compartment fan assembly.

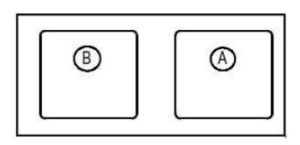

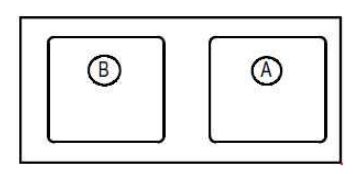

Renault Megane - fuse box diagram - passenger compartment (relay box)
Renault Megane – fuse box diagram – passenger compartment (relay box)
Number Ampere rating [A] Description
A 40 330W auxiliary heating 1
B 70 660W auxiliary heating 2



This relay is located on the accelerator pedal mounting.

Renault Megane - fuse box diagram - passenger compartment (relay box)
Renault Megane – fuse box diagram – passenger compartment (relay box)
Number Ampere rating [A] Description
1524 40 Brake lights lighting controlled by the ESP ECU

Engine Compartment Fuse Box

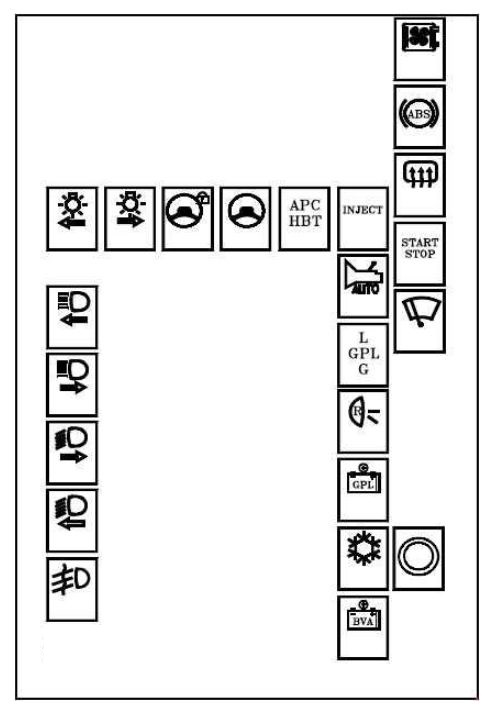

  Renault Megane - fuse box diagram - engine compartment

Renault Megane – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F3 25 Starter motor solenoid
F4 10 Air conditioning compressor clutch
F5A 15 Steering column electric lock
F5C 10 Reversing lights
F5D 5 Injection computer + after ignition feed – steering column electric lock
F5E 5 Airbag + after ignition feed and electric power assisted steering
F5F 7,5 Passenger compartment + after ignition: gear lever display – shift pattern control – cruise control/speed limiter on/off control – driving school monitor control – passenger compartment fuse and relay box – auxiliary heater relay 1 – auxiliary heater relay 2 – diagnostic socket – hands-free telephone radio microphone – rain and light sensor (on E84) – passenger compartment temperature sensor (on E84)
15 Passenger compartment + ignition feed: gear selector lever display – shift pattern control switch – cruise control stop/start control – driving school instructor’s control unit – passenger compartment fuse and relay box – additional heater relay 1 – additional heater relay 2 – diagnostic socket – car phone hands-free microphone
F5H 5 Automatic gear box + after ignition feed
F5G 10 LPG injection computer + after ignition feed
F6 30 Heated rear screen
F7A 7,5 Right-hand side light – cruise control stop/start control – ESP stop/start button – gear selector lever display – left-hand heated seat control – right-hand heated seat control – rigid roof switch – windscreen simultaneous control – LPG or petrol selector switch
F7B 7,5 Left-hand side lights – cigarette lighter – hazard warning lights and door locking switch – headlight adjustment rheostat switch – air conditioning control panel – radio – multifunction display – CCU – CD changer – driver’s dual front electric window control – electric door mirror control – rear electric window locking control – driver’s dual rear window control – passenger electric window control – rear right-hand electric window control – rear left-hand electric window control
F8A 10 Right-hand main beam headlights
F8B 10 Left-hand main beam headlights
F8C 10 Right-hand dipped beam headlight – rear height sensor – front height sensor – headlight adjustment rheostat switch – right-hand headlight adjustment motor
F8D 10 Left-hand dipped beam headlight – left-hand headlight adjustment motor
15 Left-hand dipped beam headlight – left-hand headlight adjustment motor
F9 25 Windscreen wiper motor
F10 20 Front left and right-hand fog lights
F11 40 Engine cooling fan unit
F13 25 ABS computer or Electronic Stability Program
F15 20 Automatic gearbox + battery feed or gas solenoid valve relay + battery feed
F16 10

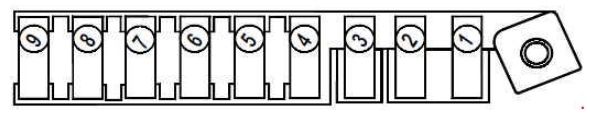

This unit is located in the engine interconnection unit, below the Protection and Commutation Unit.

Renault Megane - fuse box diagram - engine compartment
Renault Megane – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 40 K9K724: 460 Watt engine cooling fan
60 K9K732: 550 Watt engine cooling fan
F2 70 Preheating unit
F3 20 F9Q: Diesel filter heater relay
F4 70 Passenger compartment fuse and relay box
F5 50 ABS computer
F6 70 Electric power assisted steering system or Additional heater relay 2
F7 40 Auxiliary heater relay 1
F8 60 Passenger compartment fuse and relay box
F9 70 Auxiliary heater relay 2 or Electric power-assisted steering system

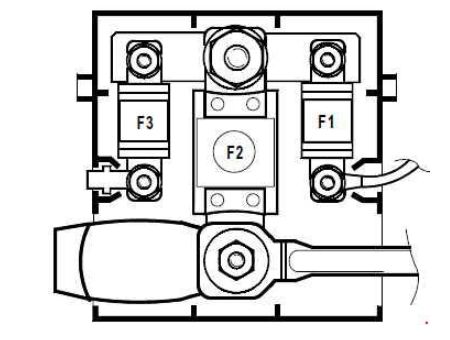

This unit is located on the positive battery terminal.

Renault Megane - fuse box diagram - engine compartment
Renault Megane – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 30 Passenger compartment fuse and relay box protected + battery feed – UCH
F2 350 Petrol engines: + protected starter battery – alternator – power feed fuse board – switching and protection unit
F2 400 Diesel engines: + protected starter battery – alternator – power feed fuse board – switching and protection unit
F3 30 + engine function protected battery via protection and switching unit



This unit is located in the engine interconnection unit, below the Protection and Switching Unit

Renault Megane - fuse box diagram - engine compartment
Renault Megane – fuse box diagram – engine compartment
Number Ampere rating [A] Description
A 25 Headlight washer pump
B 25 Headlight washer pump 2

F9Q

This unit is located in the engine interconnection unit, below the Protection and Switching Unit.

Renault Megane - fuse box diagram - F9Q
Renault Megane – fuse box diagram – F9Q
Number Ampere rating [A] Description
A 20 F9Q: Diesel heater
B 20 F9Q814: Electric coolant pump
Relay
983 50 F9Q814: Injection control unit feed

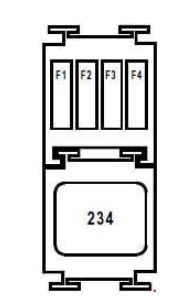

K9K

This unit is located in the engine interconnection unit, below the Protection and Switching Unit.

Renault Megane - fuse box diagram - K9K
Renault Megane – fuse box diagram – K9K
Number Ampere rating [A] Description
F1
F2
F3
F4 15 + feed for main injector relay (air flowmeter feed protection)
Relay
234 40 K9K724: 460 Watt engine cooling fan (with air conditioning)
50 K9K732: 550 Watt engine cooling fan (with air conditioning)

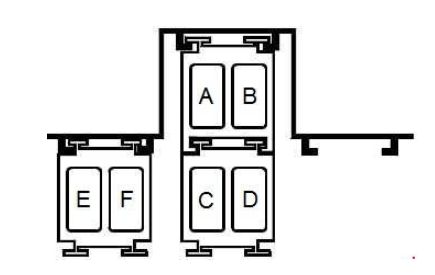

K4M

This unit is located in the engine interconnection unit, below the Protection and Switching Unit

Renault Megane - fuse box diagram - K4M
Renault Megane – fuse box diagram – K4M
Number Ampere rating [A] Description
A 20 Fuel pump
B 20 Fuel pump cut-off for LPG
C 20 LPG solenoid valve
D 20 LPG tank
E 20 Gas expansion valve solenoid valve
F

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
