Chevrolet S-10 (1996) – fuse box diagram

Year of production: 1996

Instrument panel

The fuse block is in the instrument panel on the driver’s side.

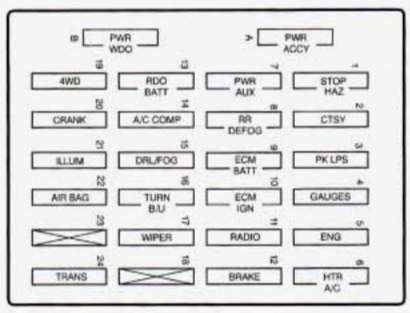

Chevrolet S-10 - wiring diagram - fuse box -  instrument panel
Chevrolet S-10 – wiring diagram – fuse box –
instrument panel
Fuses/Circuit Breaker Circuit protected
A Power Door Locks, Power Seat, Power Seat Lumbar, Remote Keyless Entry
B Power Window
1 Stoplamps, Hazard Lamps, Chime, Center High-Mounted Stoplamp Relay, Center High-Mounted Stoplamp
2 Dome Lamps, Visor Vanity Mirror, Cigarette Lighter, Inside Rearview Mirror Lamp, Overhead Console Lamps, Glove Box Lamp, Horns, Horn Relay, IP Courtesy Lamps, Power Outside Rearview Mirror, Illuminated Entry Module
3 Parking Lamps, License Plate Lamps, Electric Shift Transfer Case Module, Underhood Lamp, Ashtray Lamp, Door Switch Lamp
4 Alternator Field, A/C Compressor Relay, Cluster Chime Module, DRL Relay Coil, Four-Wheel-Drive Indicator Lamp, DRL Module, Transfer Case Control Module Ignition, SIR Redundant Ignition, RKE Ignition
5 Oxygen Sensor Heater, Exhaust Gas Recirculation, Cam Sensor, CANN. Purge, MAS
6 Blower Motor, Temperature Door Motor, HI Blower Relay Coil
7 Power Auxiliary Outlets, Assembly Line Diagnostic Link
8
9 PCMNCM Battery, ABS Battery, Fuel Pump (LN2)
10 PCM/VCM Ignition, Injectors, Crank Sensor, Coil Driver Module
11 Radio, Inside Rearview Mirror Map Lamp
12 DRAC, Anti-Lock Braking System, VCM IGN-3
13 Clock, Radio, Battery, CD Player
14 A/C Compressor Battery Feed
15 Daytime Running Lamps, Fog Lamps, Fog Lamp Relay
16 Turn Signals and Back-up Lamps, Brake-Transmission Shift Interlock Solenoid
17 Windshield Washer, Windshield Wiper Motor
18
19 Electric Shift Transfer Case
20 Crank Signal, Air Bag System
21 Cluster Illumination, Radio Illumination, Heater Lamp, Four- Wheel-Drive Illumination, Chime Module, Fog Lamp Illumination
22 Air Bag Module
23
24 PRNDL Power, 4L60E Automatic Transmission

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
