Renault Kangoo VAN Z.E. (2012 – 2017) – fuse box diagram

Renault Kangoo VAN Z.E. (2012 – 2017) – fuse box diagram

Year of production: 2012, 2013, 2014, 2015, 2016, 2017

Allocation of fuses

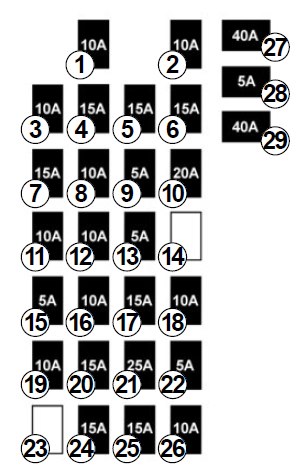

Renault Kangoo VAN Z.E. - fuse box
Renault Kangoo VAN Z.E. –
fuse box

Fuse

Fuse Allocation
1 Traction battery charger
2 Electric motor control unit
3 Air conditioning, pedestrian horn
4 Heating, brake lights, traction battery
5 Rear windscreen wiper
6 Horn, diagnostic socket
7 Heated seats
8 Traction battery
9 Passenger compartment ECU
10 Windscreen washer
11 Brake lights
12 Passenger compartment unit, ABS, ESP
13 Electric windows, child safety, heating and air conditioning system, ECO mode
14 Not used
15 Starter
16 Brake lights, additional equipment, navigation, ABS, ESP, boot light, interior lights, rain and light sensor, charging warning light
17 Radio, navigation system, display, alarm
18 Additional equipment
19 Heated door mirrors
20 Hazard lights, rear fog lights
21 Central locking of opening elements
22 Instrument panel
23 Not used
24 ESP, radio, heating and air conditioning system, heated seats, stop lights
25 Front accessories socket
26 Towbar
27 Electric front windows
28 Rear-view mirror control
29 Engine cooling fan



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
