Renault Kangoo (1997 – 2007) – fuse box diagram

Renault Kangoo (1997 – 2007) – fuse box diagram

Year of production: 1997, 1998, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007

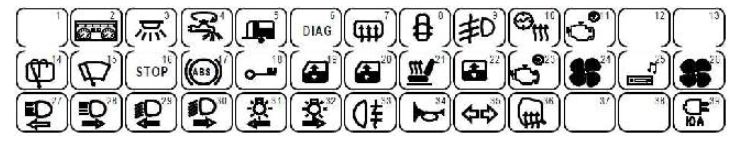

Fuse box in passenger compartment

This unit is located in the passenger compartment on the driver’s side.

Renault Kangoo - fuse box diagram - passenger compartment
Renault Kangoo – fuse box diagram – passenger compartment
Number Ampere rating [A] Description
F1
F2 10 Electric door mirror control, Clock, Radio, – Central display
F3 15 Light for luggage compartment, Courtesy lights, Courtesy light console, Side door ECU (except mercosur)
F4 30 Consumer cut-out (protects fuses 2 and 3)
F5 30 Caravan connector
Mercosur1): Reserved
F6 10 Immobiliser, Diagnostic socket OBD2, Instrument panel
F7 30 Heated rear screen
F8 20 Decoder unit
F9 15 Front fog lights
Mercosur1): Reserved
F10
F11
20 Mercosur1): Injection
F12
F13
F14 15 Windsceen wiper motor, Rear screen wiper relay, Wiper unit, Heated rear screen control, Lights on warning buzzer, Automatic transmission module (except mercosur)
F15 20 Windscreen wiper timer housing, Windscreen wiper motor, Washer/wiper unit
F16 15 Brake switch, Instrument panel, Air conditioning computer, Air bag and pretensioners ECU, Diagnostic socket OBD2, ECO/PERF switch (except mercosur), Clock, Opener/seat belt warning module (except mercosur)
F17 10 ABS
Mercosur1): Reserved
F18 2 Decoder computer
F19 25 Front left-hand window riser
F20 25 Front right-hand window riser
F21 20 Heated seat
Mercosur1): Reserved
F22 20 Electric sunroof
Mercosur1): Reserved
F23 15 Reserved
Mercosur1): Injection
F24 15 Air conditioning computer
Mercosur1): Reserved
F25 15 Cigarette lighter, Radio, Central display, + After ignition relay control
F26 25 Air conditioning control panel
F27 10 Left-hand main beam headlight, Instrument panel indicator light
F28 10 Right-hand main beam headlight
F29 10 Left-hand dipped headlight, Remote adjustment of headlights
F30 10 Right hand dipped headlight, Instrument panel
F31 10 Left-hand side lights, Number plate lighting, Instrument panel indicator light, Lighting circuit-breakers, Lights on warning buzzer
F32 10 Right-hand side lights, Lighting circuit-breakers
F33 10 Rear fog lights, Instrument panel
Mercosur1): Reserved
F34 15 Horn
F35 10 Indicators and hazard warning lights
F36 10 Heated door mirrors
Mercosur1): Reserved
F37
F38
F39

Passenger compartment relay unit

This unit is located in the passenger compartment under the driver’s side dashboard above the fuse box.

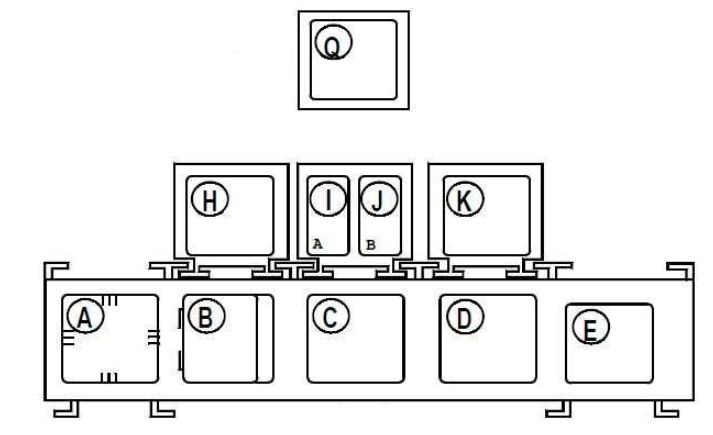

Left-hand drive version in Europe/except Sweden/except Mercosur markets

However, relay (Q) is located behind the instrument panel.

  Renault Kangoo - fuse box diagram - passenger compartment relay box

Renault Kangoo – fuse box diagram – passenger compartment relay box

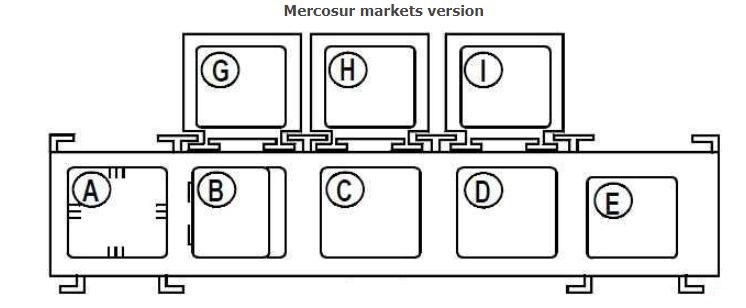

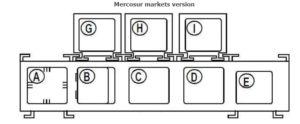

Mercosur markets version

Renault Kangoo - fuse box diagram - passenger compartment relay box
Renault Kangoo – fuse box diagram – passenger compartment relay box

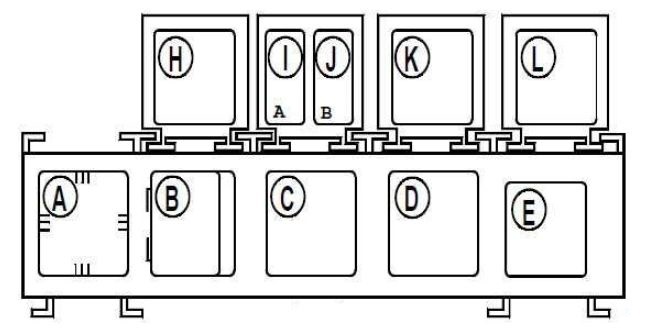

Right-hand drive version

Renault Kangoo - fuse box diagram - passenger compartment relay box
Renault Kangoo – fuse box diagram – passenger compartment relay box

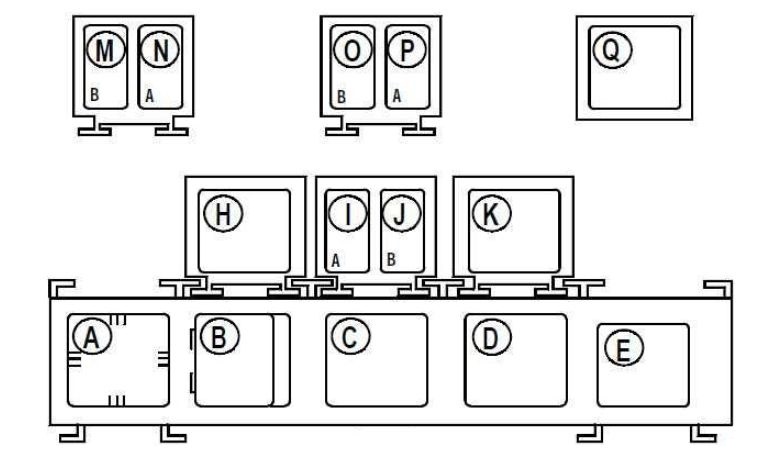

Sweden left-hand drive version

Renault Kangoo - fuse box diagram - passenger compartment relay box
Renault Kangoo – fuse box diagram – passenger compartment relay box

However, the relay board (M,N,O,P,Q) is located behind the instrument panel.

Number Description
A Buzzer: “Lights on” warning
B Unit: front timer
C Unit: central flasher
D
Mercosur: Relay: rear screen wiper
E Relay: heated rear screen
G Mercosur: Relay: + After ignition/+ Before ignition
H Relay: + After ignition/+ Before ignition relay
Mercosur: Relay: air conditioning
I Relay: front fog lights
Mercosur: Receiver: opening elements control
J Relay: fuel gauge (petrol/liquid petroleum gas)
K Relay: electric locks
L RHD: Receiver: opening elements control
M Sweden:Relay: daytime running lights dipped
N Sweden:Relay: daytime running lights side lights
O Sweden:Relay: main daytime lights (automatic transmission)
P Sweden:Relay: main daytime running lights (manual gearbox)
Q Receiver: opening elements control (Sweden) Receiver: Doors and windows control (Left-hand drive version in Europe/except Sweden/except Mercosur markets)

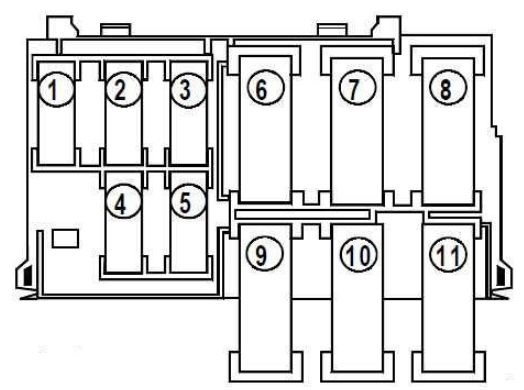

Engine compartment fuse box

Renault Kangoo - fuse box diagram - engine compartment
Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 30 Injection
F8Q, F9Q790: Not in use
25 F9Q, K9K: Injection
F2 30 K7J, F8Q, F9Q790: Not in use
D4F712, D7F726, D7F744, F9Q, K4M, K9K: Fan unit
F3 5 Injection
F9Q, K9K: Not in use
F4 D4F712, D7F726, F9Q,K4M, K9K: Not in use
7,5 K7J: Automatic transmission module
10 D7F744: Liquid petroleum gas solenoid valve relay
15 F8Q: Engine functions
F5 15 K7J: Injection
D7F744: Injection/liquid petroleum gas
D7F726, K4M: Fan, ignition
F8Q: Not in use
F9Q, K9K: Engine functions
F6
70 F8Q, F9Q, K9K: Preheating unit
F7 50 D4F712, D7F726, K4M, K7J: Fan assembly
D7F744: Not in use
F8Q, F9Q, K9K: Engine functions
F8 60 Instrument panel
F9 60 Anti-lock braking system
80 K4M, F9Q790: Anti-lock braking system
F10 60 Instrument panel
F11 30 D7F744, F9Q790, K7J: Heater fan assembly
D4F712, D7F726, F8Q, F9Q, K9K: Air conditioning fan assembly
60 F9Q790, K4M, K7J: Air conditioning

Single or double fuses

Ampere rating [A] Description
80 F9Q, K9K: Power assisted steering pump assembly
70 F9Q, K9K: Thermoplungers
80 F9Q790:Injection
80 F9Q790: Fan unit

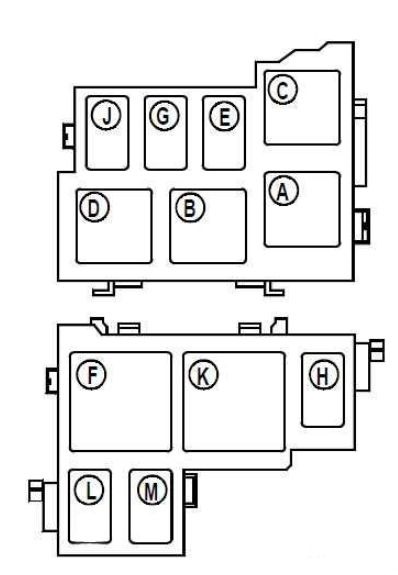

Engine compartment relay box (F8Q, F9Q, D4F, D7F744, F9Q, K4M752, K7J, K9K)

Renault Kangoo - fuse box diagram - engine compartment
Renault Kangoo – fuse box diagram – engine compartment
Number Description
A D7F744, F8Q:Not in use
F9Q, K9K: Thermoplungers
F9Q790 (4×4): Thermoplunger 2 and 3
K4M750: Fan assembly
B D7F744:Liquid petroleum gas solenoid valve
F8Q, F9Q, K9K:Not in use
F9Q790 (4×4): Fan assembly speed 2
K4M750: Fuel pump
C D7F744, F8Q, F9Q790 (4×4):Power assisted steering pump assembly
F9Q, K4M750, K9K:Not in use
D D7F744, F8Q, K4M750:Not in use
F9Q, K9K: Thermoplungers
F9Q790 (4×4): Thermoplunger 1
E D7F744, F8Q, F9Q, K9K:Not in use
F9Q790 (4×4): Speed fan 1
K4M750: Fan low-speed (air conditioning version)
F D4F, D7F744:Not in use
K7J: Ignition
F8Q:Fan assembly
F9Q, K9K: Power assisted steering pump assembly
K4M752: Not in use
G D7F744:Liquid petroleum gas fuel pump cut-off
F8Q, F9Q, K4M750, K9K:Not in use
F9Q790 (4×4): Fuel pump
H D4F, D7F744, F9Q, K7J, K4M752, K9K: Injection locking
F8Q:Altimetric correction
J D7F744, F8Q, F9Q, K9K:Not in use
F9Q790 (4×4): Diesel injection computer supply
K4M750: Injection locking
K D7F744, F8Q, F9Q, K9K:Fan low-speed (air conditioning version)
D4F, F9Q, K7J, K4M752, K9K: Fan assembly (air conditioning version)
L D4F, D7F744, K4M752, K7J: Fuel pump
F8Q:+ After ignition/+ Before ignition
F9Q, K9K: Fan assembly
M D4F, D7F744, K7J: Fan assembly
D4F, K7J: Fan low-speed (air conditioning version)
F8Q, F9Q:Diesel fuel heater
K4M752: Assembly low-speed relay (air conditioning version)
K9K:Not in use

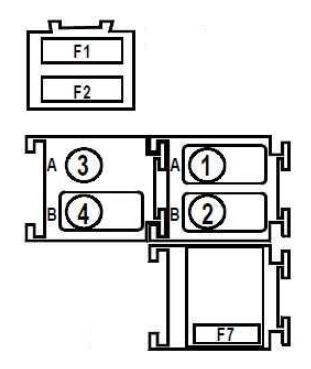

Engine compartment relay box (D7D (Latin American markets))

Renault Kangoo - fuse box diagram - engine compartment
Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 60 Fuse: instrument panel
F2 60 Fuse: instrument panel
F7 30 Fuse: engine protection
Relay
1 Injection
2 Injection
3
4 Air conditioning compressor control

Engine compartment relay box (D7F720 (Latin American markets))

Renault Kangoo - fuse box diagram - engine compartment
Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 30 Fan unit
Relay
A Fan assembly
B Injection locking

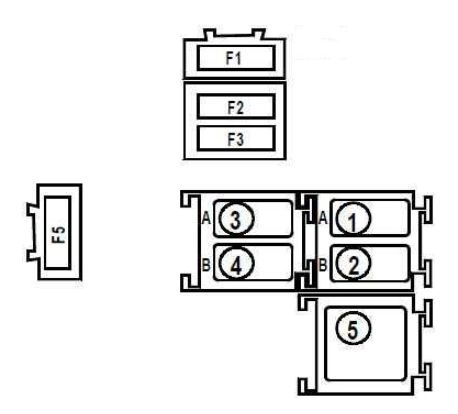

Engine compartment relay box (D7D, K7M (Air conditioning; Mercosur markets))

Renault Kangoo - fuse box diagram - engine compartment
Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 40 Instrument panel
F2 60 Instrument panel
F3 60 Instrument panel
F5 50 Engine protection
Relay
1 Injection
2 Injection
3 Fan assembly low-speed
4 Air conditioning compressor control
5 2-speed fan

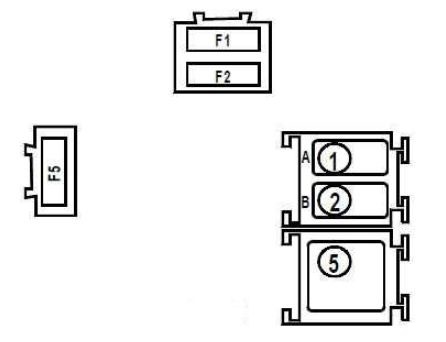

Engine compartment relay box (K7M (Latin American markets))

  Renault Kangoo - fuse box diagram - engine compartment

Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 40 Instrument panel
F2 60 Instrument panel
F5 80 Engine protection
Relay
1 Injection
2 Injection
5 Fan assembly speed 2

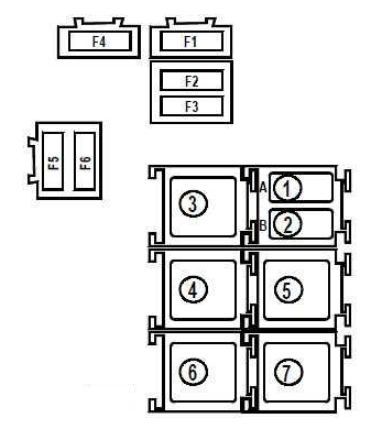

Engine compartment relay box (F8Q (Latin American markets))

  Renault Kangoo - fuse box diagram - engine compartment

Renault Kangoo – fuse box diagram – engine compartment
Number Ampere rating [A] Description
F1 40 Instrument panel
F2 60 Instrument panel
F3 60 Instrument panel
F4 50 Engine protection
F5 80 Engine protection
F6 70 Engine protection
Relay
1 Injection
2 Injection
3 Diesel fuel heater
4 Fan assembly
5 Fan assembly low-speed
6 Power assisted steering pump assembly
7 Air conditioning compressor control

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
