Ford Fiesta (from 2015) – fuse box diagram (India version)

Ford Fiesta (from 2015) – fuse box diagram (India version)

Year of production: 2015, 2016

Engine Compartment Fuse Box

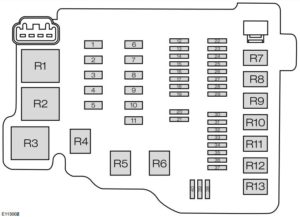

Ford Fiesta mk7 FL (2015) - fuse box - engine compartment (India version)
Ford Fiesta mk7 FL (2015) – fuse box – engine compartment (India version)
Fuse Ampere rating [A] Circuits protected
1 40 Anti-lock braking system
2 60 Cooling system fan high speed, cooling system fan low speed
3 40 Cooling system fan low speed
4 30 Heater blower
5 60 Passenger compartment fuse box supply (battery)
6 30 Locking and unlocking
7 60 Ignition relay
8 60 Glow plugs
9 Not used
10 40 Automatic transmission
11 30 Starter relay
12 7,5 Headlamp leveling, lighting control switch
13 7,5 Reversing lamp, parking aid module
14 20 Ignition coils
15 15 Air conditioning compressor, run-on waterpump
16 15 Powertrain control module, vehicle speed sensor
17 15 Powertrain control module, fuel pump relay
18 Not used
19 Not used
20 10 High beam left-hand side
21 10 High beam right-hand side
22 15 Exterior lamps
23 15 Front fog lamps
24 15 Direction indicators
25 15 Exterior lamps
26 7,5 Electric exterior mirrors, power windows
27 10 Powertrain control module
28 20 Horn
29 10 Air conditioning clutch
30 Not used
31 Not used
32 20 Horn, battery saver
33 20 Heated rear window
34 20 Fuel pump
35 Not used
36 20 Anti-lock braking system, electronic stability program
37 Not used
38 Not used
39 Not used
40 Not used



Relay Circuits switched
R1 Cooling system fan
R2 Ignition
R3 Powertrain control module
R4 High beam
R5 Not used
R6 Automatic transmission reversing lamp switch
R7 Engine cooling fan
R8 Engine start inhibitor
R9 Air conditioning clutch
R10 Front fog lamps
R11 Fuel pump
R12 Horn
R13 Heater blower



Passenger Compartment Fuse Box

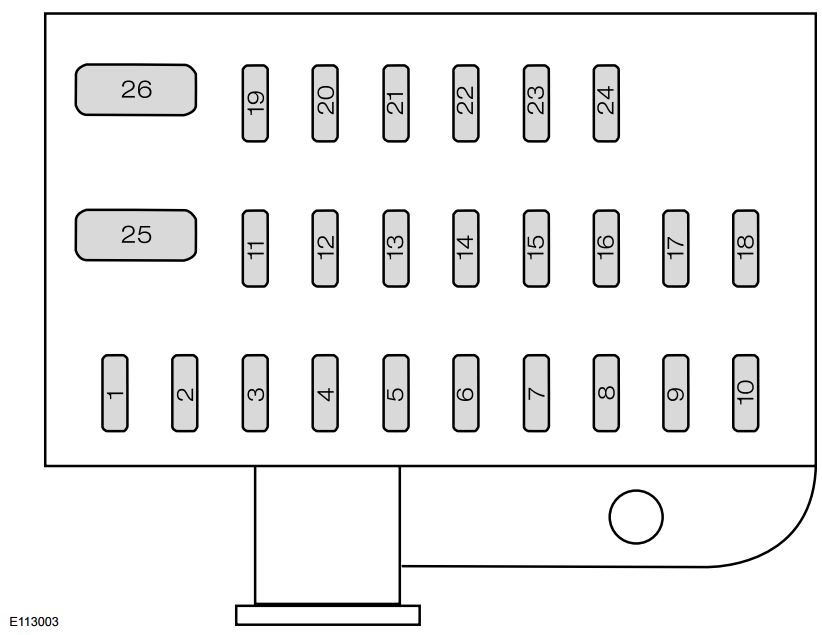

Ford Fiesta mk7 FL (2015) - fuse box - passenger compartment (India version)
Ford Fiesta mk7 FL (2015) – fuse box – passenger compartment (India version)
Fuse Ampere rating [A] Circuits protected
1 7,5 Audio system, instrument cluster
2 10 Airbags
3 Not used
4 Not used
5 Not used
6 10 Passive anti-theft system, electric power assisted steering, instrument cluster, battery control module, anti-lock braking system, heater blower
7 10 Automatic transmission, powertrain control module, engine cooling fan
8 20 Keyless starting
9 10 Brake lamp switch
10 20 Windshield wipers
11 7,5 Information and entertainment display, climate control
12 15 Audio system, SYNC
13 20 Cigar lighter, auxilliary power points
14 Not used
15 15 On-board diagnostics connector
16 20 Keyless starting
17 15 Ignition switch
18 7,5 Instrument cluster
19 7,5 Front fog lamps
20 7,5 Climate control
21 7,5 Autolamps
22 15 Washer pump
23 7,5 Moonroof
24 Not used
25 30 Rear power windows
26 30 Front power windows

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
