Renault Clio Sport Tourer  (2015 – 2016) – fuse box diagram

Renault Clio Sport Tourer  (2015 – 2016) – fuse box diagram

Year of production: 2015, 2016

Allocation of fuses

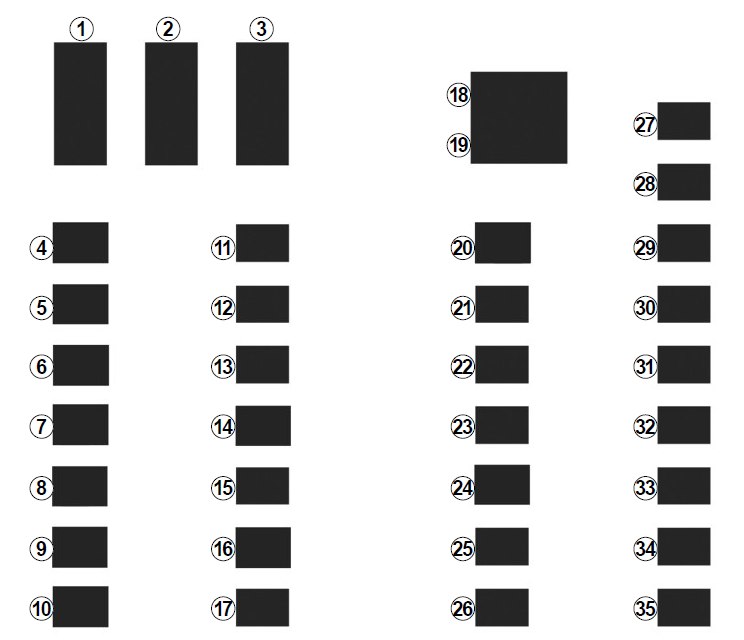

Renault Clio Sport Tourer – fuse box diagram
Renault Clio Sport Tourer – fuse box diagram

Fuses

Fuse Allocation
1 Front windscreen wiper, controls under steering wheel
2 Front left-hand daytime running lights, right-hand side lights, left-hand main beam headlight, right-hand dipped beam headlight, front fog lights
3 Interior lighting, registration plate lighting, fog lights
4 Right-hand side lights, rear side lights
5 Left-hand side lights, front side lights
6 Dipped beams, front right-hand daytime running light, left-hand side lights, right-hand main beam headlight
7 Left-hand dipped beam headlight
8 Right-hand main beam headlight
9 Left-hand main beam headlight, steering column controls
10 Steering column controls, speed limiter/cruise control, interior rear-view mirror, belt warning module, Parking sensor, additional heating, electric headlight beam adjustment, rear screen de-icer
11 Central door locking, rain and light sensor, steering wheel angle sensor, vehicle start button, electric rear windows
12 Courtesy light, boot light, air conditioning, electric windows
13 ABS-ESC, brake switch
14 Steering column controls, brake switch
15 Horn
16 Rear fog lights
17 Cigarette lighter
18 Radio and multimedia, diagnostic socket
19 Power-assisted steering
20 GPL
21 Airbag, electric locking of steering column
22 Injection, starting, fuel pump
23 Brake switch, rear screen wiper, passenger compartment ECU
24 Daytime running lights
25 Electric headlight beam adjustment, rear screen, heating, parking sensor, cruise control, radio, heated seat, seat belt warning
26 Automatic gearbox
27 Reversing light, rear screen wiper, passenger compartment ECU, Automatic gearbox
28 Instrument panel
29 Steering column controls, Alarm
30 Air conditioning, steering column controls, energy ECU
31 Wipers, rear reversing lights, energy ECU
32 Central locking of opening elements
33 Direction indicator lights
34 Passenger compartment ECU, hands-free access
36 Interior lighting, electric windows, air conditioning, electric door mirrors, brake lights, ABS, passenger compartment ECU



WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
