Renault Duster (2012) – fuse box diagram

Renault Duster (2012) – fuse box diagram

Year of production: 2012

Allocations of fuses in the passenger compartment

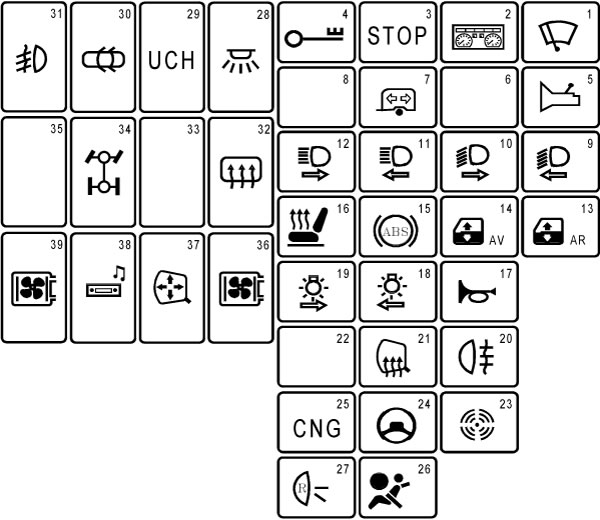

Renault Duster fuse box diagram
Renault Duster fuse box diagram
Symbol Allocation
ABS ABS
Radio Radio
Brake-lights Brake lights
Air conditioning Air conditioning
Fog-lights Front fog lights
instrument-panel Instrument panel injection
Windscreen-wiper Windscreen wiper
Central-locking Central locking of doors and tailgate
Rear-screen-de-icing Rear screen de-icing
Not-used Not used
Horn Horn
Main-power-supply Main power supply
Heated-seats Heated seats
Heated-door-mirror Heated door mirrors
Electric-front-window Electric front windows
Interrior-lights Interior lighting
Electric-door-mirror Electric door mirror
Heating Heating
Directions Not used
Air-bag Air bag
Right-hand-main-beam Right-hand main beam headlight
Left-hand-main-beam Left-hand main beam headlight
Left-hand-dipped-beam Left-hand dipped beam headlight
Right-hand-dipped Right-hand dipped beam headlight
Right-hand-side-light Right-hand side light
Left-hand-side-light Left-hand side ligh
Rear-fog-light Rear fog light
Electric--rear-windows Electric rear windows
Engine-immobiliser Engine immobiliser
Reversing-light-and-rear Reversing light and rear screen wiper
Power-assisted-steering Power-assisted steering
Automatic-gearbox Automatic gearbox
GAS-fuel GAS fuel
4-wheel-drive-(4WD) 4-wheel drive (4WD) transmission

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
