Pontiac Pursuit (2006) – fuse box diagram
Year of production: 2006
Floor Console Fuse Block
The floor console fuse box is located on the passenger’s side of the floor console under the instrument panel.
| Fuses | Usage |
| 1 | Fuse Puller |
| 2 | Spare |
| 3 | Spare |
| 4 | Spare |
| 5 | Spare |
| 6 | Amplifer |
| 7 | Cluster |
| 8 | Ignition Switch, PASS-Key III+ |
| 9 | Stoplamp |
| 10 | Heating, Ventilation, Air Conditioning, PASS-Key III+ |
| 11 | — |
| 12 | Spare |
| 13 | Airbag |
| 14 | Spare |
| 15 | Windshield Wiper |
| 16 | Climate Control System, Cluster |
| 17 | — |
| 18 | — |
| 19 | Electric Power Steering, steering Wheel control |
| 20 | Sunroof |
| 21 | Spare |
| 22 | — |
| 23 | Audio System |
| 24 | Sensing and Diagnostic Module (Airbag) |
| 25 | Engine Control Module, Transmission Control Module |
| 26 | Door Locks |
| 27 | Interior Lights |
| 28 | — |
| 29 | Power Windows |
| Relays | Usage |
| 30 | Climate Control System |
| 31 | — |
| 32 | Retained Accessory Power |

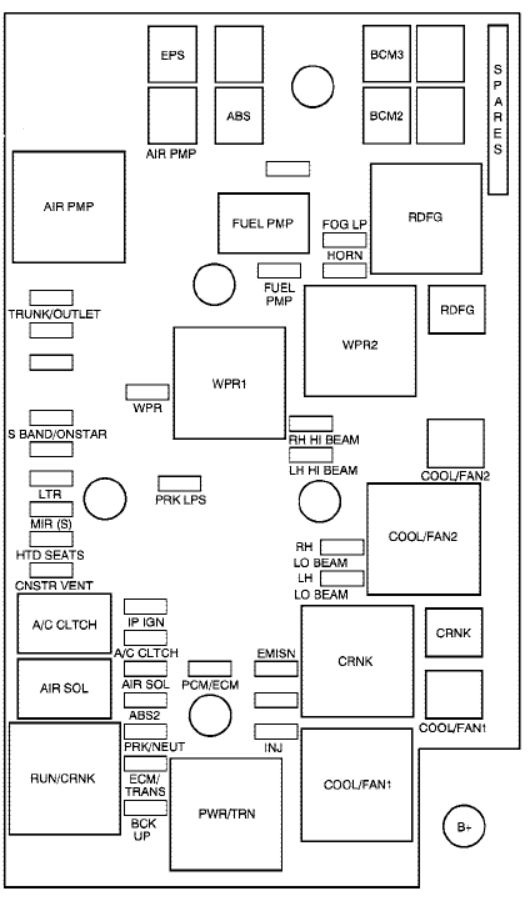

Engine Compartment Fuse Block
The engine compartment fuse block is located on the driver’s side of the vehicle.
| Number | Usage |
| SPARES | Spares |
| Blank | — |
| Blank | — |
| RDFG | Rear Defogger |
| COOL/FAN2 | Cooling Fan 2 |
| CRNK | Starter |
| COOL/FAN1 | Engine Cooling Fan |
| BCM3 | Body Control Module 3 |
| BCM2 | Body Control Module 2 |
| FOG LP | Fog Lamps |
| HORN | Horn |
| RH HI BEAM | Passenger’s Side High Beam |
| LH HI BEAM | Driver’s Side High Beam |
| RH LO BEAM | Passenger’s Side Low Beam |
| LH LO BEAM | Driver’s Side Low Beam |
| Blank | — |
| FUEL PUMP | Fuel Pump |
| EMISN | Emissions |
| Blank | — |
| INJ | Injectors |
| Blank | — |
| ABS | Anti-lock Brake System |
| PCM/ECM | Powertrain control Module/Engine Control Module |
| EPS | Electric Power Steering |
| PRK LPS | Park Lamps |
| WPR | Windshield Wiper |
| IP IGN | Ignition |
| A/C CLTCH | Air Conditioning Clutch |
| AIR SOL | Air Solenoid |
| ABS2 | Anti-lock Brake System 2 |
| PRK/NEUT | Park, Neutral |
| ECM/TRANS | Engine Control Module, Transmission |
| BCK UP | Back-Up Lamps |
| TRUNK/OUTLET | Trunk, Accessory Power Outlet |
| Blank | — |
| Blank | — |
| S BAND/ONSTAR | Audio, OnStar |
| Blank | — |
| LTR | Cigarette Lighter |
| MIR(S) | Mirrors |
| HTD SEATS | Heated Seats |
| CNSTR VENT | Canister Vent |
| Relays | Usage |
| RDFG | Rear Defogger |
| COOL/FAN2 | Cooling Fan 2 |
| WPR2 | Windshield Wiper 2 |
| CRNK | Starter |
| COOL/FAN1 | Cooling Fan 1 |
| FUEL PMP | Fuel Pump |
| WPR1 | Windshield Wiper 1 |
| PWR/TRN | Powertrain |
| AIR PMP | Air Pump |
| A/C CLTCH | Air Conditioning Clutch |
| AIR SOL | Air Solenoid |
| RUN/CRANK | Run, Crank |
WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
