Pontiac Pursuit (2005) – fuse box diagram

Pontiac Pursuit (2005) – fuse box diagram

Year of production: 2005

Floor Console Fuse Block

The floor console fuse block is located on the passenger’s side of the floor console under the instrument panel.

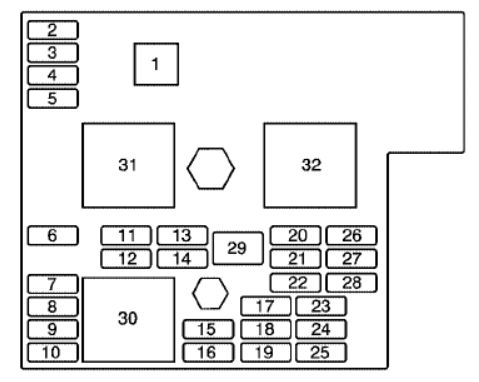

Pontiac Pursuit - fuse box diagram - floor console
Pontiac Pursuit – fuse box diagram – floor console
Fuses Usage
1 Fuse Puller
2
Spare
3 Spare
4 Spare
5 Spare
6 Amplifer
7
Cluster
8 Ignition Switch
9 Stoplamp
10 Heating, Ventilation, Air Conditioning
11
12
Spare
13
Airbag
14
Spare
15 Windshield Wiper
16
Climate Control System, Cluster, Brake Transmission Shift Interlock
17
18
19
Electric Power Steering, Steering Wheel Contro
20
Sunroof
21
Spare
22
23
24 Sensing and Diagnostic Module
25
Engine Control Module, Transaxle Control Module
26 Door Locks
27 Interior Lights
28 Audio System
29 Power Windows

Relays Usage
30 Ignition 3
31
32 Retained Accessory Power

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle.

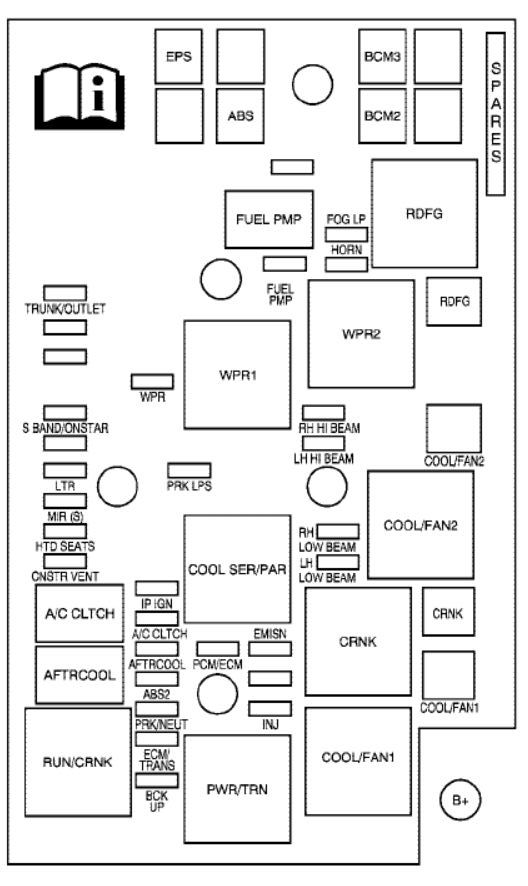

Pontiac Pursuit - fuse box diagram - engine compartment
Pontiac Pursuit – fuse box diagram – engine compartment
Number Usage
SPARES
Spares
RDFG Rear Defogger
COOL/FAN2 Cooling Fan 2
CRNK Starter
COOL/FAN1 Engine Cooling Fan
BCM3 Body Control Module 3
BCM2 Body Control Module 2
FOG LP Fog Lamps
HORN Horn
RH LO BEAM Passenger’s Side Low Beam
LH LO BEAM Driver’s Side Low Beam
RH HI BEAM Passenger’s Side High Beam
LH HI BEAM Driver’s Side High Beam
FUEL PUMP Fuel Pump
EMISN Emissions
INJ Injectors
ABS Anti-lock Brake System
PCM/ECM
Powertrain Control Module/Engine Control Module
EPS Electric Power Steering
PRK LPS Park Lamps
WPR Windshield Wiper
IP IGN Ignition
A/C CLTCH Air Conditioning Clutch
AFTRCOOL Aftercooler
ABS2 Anti-lock Brake System
PRK/NEUT Park, Neutral
ECM/TRANS
Engine Control Module, Transmissio
BCK UP Back-Up Lamps
TRUNK/OUTLET Trunk, Accessory Power Outlet
S BAND/ONSTAR Audio, OnStar
LTR Cigarette Lighter
MIR(S) Mirrors
HTD SEATS Heated Seats
CNSTR VENT Canister Vent

Relays Usage
RDFG
Rear Defogger
COOL/FAN2 Cooling Fan 2
WPR2 Windshield Wiper 2
CRNK
Starter
COOL/FAN1 Cooling Fan 1
FUEL PMP Fuel Pump
WPR1 Windshield Wiper 1
COOL SER/PAR
PWR/TRN Powertrain
A/C CLTCH Air Conditioning Clutch
AFTRCOOL
RUN/CRANK Run, Crank

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
