Pontiac Grand Am (1999) – fuse box diagram

Pontiac Grand Am (1999) – fuse box diagram

Year of production: 1999

Instrument Panel Fuse Block

Driver’s Side

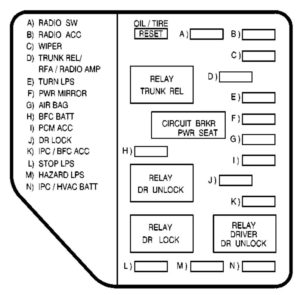

Pontiac Grand Am - fuse box - instrument panel (driver's side)
Pontiac Grand Am – fuse box – instrument panel (driver’s side)
Fuses Usage
RADIO SW Steering Wheel Radio Switches
WIPER Windshield Wiper Motor, Washer Pump
TRUNK REL/RFA/RADI O AMP Trunk Release Relay/Motor, RKE, Audio Amplifier
TURN LPS Turn Signal Lamps
PWR MIRROR Power Mirrors
AIR BAG Air Bags
BFC BATT Body Computer (BFC)
DR LOCK Door Lock Motors
IPC/BFC ACC Cluster, Body Computer (BFC)
STOP LPS Stoplamps
HAZARD LPS Hazard Lamps
IPC/HVAC BATT HVAC Head, Cluster, Data Link Connector
Circuit Breakers Usage
PWR SEAT Power Seats

Passenger’s Side

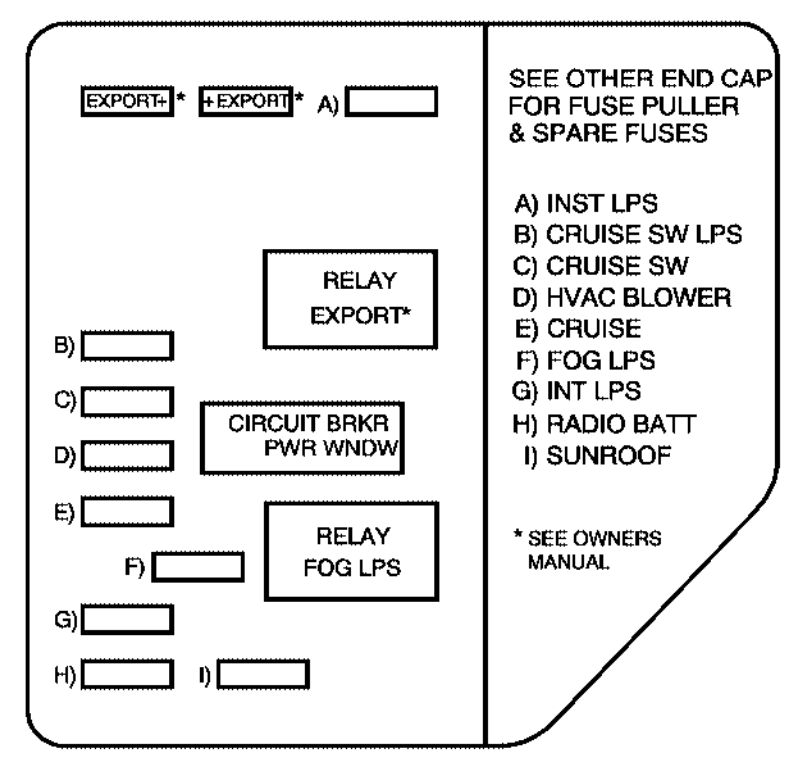

Pontiac Grand Am - fuse box - instrument panel (passenger's side)
Pontiac Grand Am – fuse box – instrument panel (passenger’s side)
Fuse Usage
INST LPS Interior Lamp Dimming
CRUISE SW LPS Steering Wheel Cruise Control Switch Lamps
CRUISE SW Steering Wheel Cruise Control Switches
CRUISE Cruise Control
FOG LPS Fog Lamps
INT LPS Interior Courtesy Lamps
SUNROOF Power Sunroof
Circuit Breaker Usage
PWR WNDW Power Windows

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.

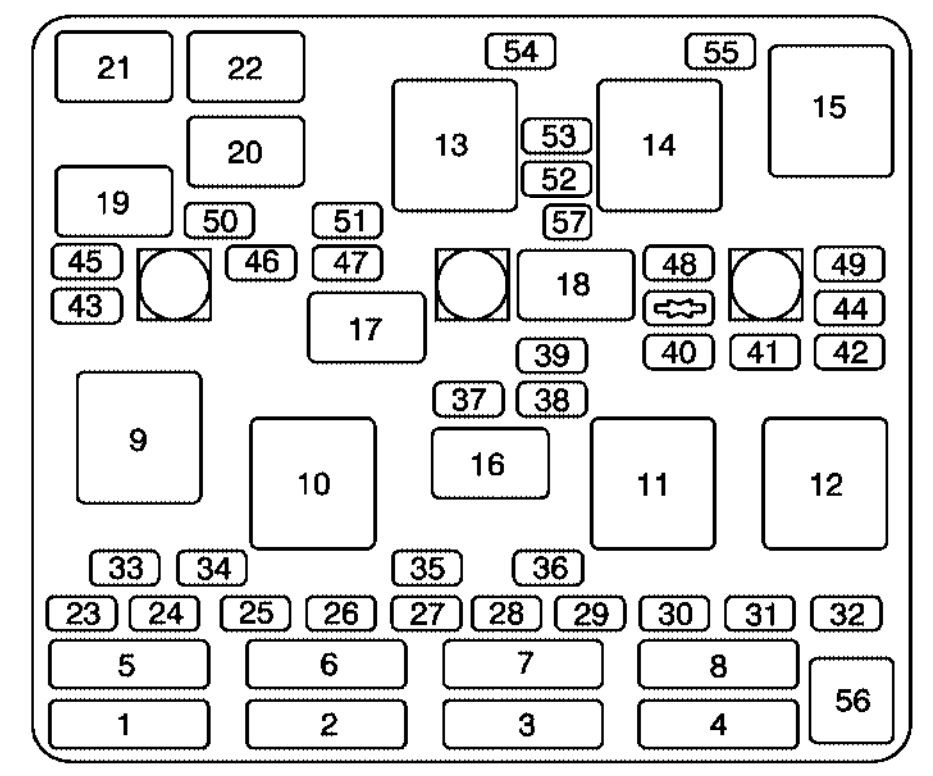

Pontiac Grand Am - fuse box - engine compartment
Pontiac Grand Am – fuse box – engine compartment
Maxi-Fuses Usage
1 Ignition Switch
2 Left Electrical Center-Power Seats, Power Mirrors, Door Locks, Trunk Release, Audio Amplifier, Remote Lock Contro
3 Left Electrical Center-Stoplamps, Hazard Lamps, Body Function Control Module, Cluster, Climate Control System
4 Right Electrical Center-Fog Lamps, Radio, Body Function Control Module, Interior Lamps
5 Ignition Switch
6 Not Used
7 Anti-Lock Brakes
8 Cooling Fan


Mini-Relays Usage
9 Rear Defog
10 Not Used
11 Anti-Lock Brakes
12 Cooling Fan
13 HVAC Blower (Climate Control)
14 Cooling Fan
15 Cooling Fan


Micro Relays Usage
16 Air Conditioning Compressor
17 Not Used
18 Fuel Pump
19  Automatic Light Control
20  Automatic Light Control
21 Horn
22 Daytime Running Lamps (DRL)


Mini – Fuses Usage
23 – 32 Spare Fuse Holder
33 Rear Defog
34 Accessory Power Outlets, Cigarette Lighter
35 Anti-Lock Brakes
36 Anti-Lock Brakes, Variable Effort Steering
37 Air Conditioning Compressor, Body Function Control Module
38 Automatic Transaxle
39 Powertrain Control Module
40 Anti-Lock Brakes
41 Ignition System
42 Back-Up Lamps, Brake Transaxle Shift Interlock
43 Horn
44 Powertrain Control Module
45 Parking Lamps
46 Rear Defog, Daytime Running Lamps, Climate Control System
47 Canister Vent Valve, Exhaust Oxygen Sensors
48 Fuel Pump, Injectors
49 Generator
50 Right-Hand Headlamp
51 Left-Hand Headlamp
52 Cooling Fan
53 HVAC Blower (Climate Control)
54 Not Used
55 Not Used
56 Fuse Puller for Mini Fuses
57 Not Used

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
