Pontiac Grand Am (1996 – 1998) – fuse box diagram

Pontiac Grand Am (1996 – 1998) – fuse box diagram

Year of production: 1996, 1997, 1998

Instrument Panel Fuse Block

Driver’s Side

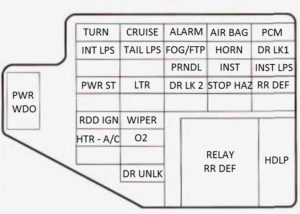

Pontiac Grand Am - fuse box - instrument panel (driver's side)
Pontiac Grand Am – fuse box – instrument panel (driver’s side)
Fuses Usage
PWR WDO Power Window (Circuit Breaker
TURN Turn Signal Lamps
INT LPS Alarm Module (Illuminated Entry, Warning Chimes, Overhead Lamps, MapReading Lamps, Glove Box Lamp, Trunk Lamp, Radio, Power Mirrors), Anti-Lock Brakes, Variable Effort Steering
PWR ST Power Seat
HTR-A/C Heater/Air Conditioning Blower, Daytime Running Lamps, Automatic Light Control
CRUISE Cruise Control
TAIL LPS Parking Lamps, Taillamps, Sidemarker Lamps, License Lamps, Instrument Panel Lights, Headlamp Warning Alarm
LTR Cigarette Lighter
WIPER Windshield Wipersmasher
02 Heated Oxygen Sensors
DR UNLK Automatic Door Unloc
ALARM Automatic Transaxle, Automatic Door Unlock, Alarm Module (Illuminated Entry, Warning Chimes), Traction Telltale, Rear Window Defogger, Remote Keyless Entry
FOG/FTP Fog Lamps
PRNDL Instrument Cluster, Powertrain Computer, Park-Lock Solenoid, Electronic PRNDL
DR LK 2 Door Locks
AIR BAG Air Bag Powe
HORN Horn, Service Tool Pow
INST Instrument Cluster
STOP HAZ Stoplamps, Hazard Lamps, Anti-Lock Brakes
PCM Powertrain Control Module
DR LK 1 Door Locks, Remote Keyless Entry
INST LPS Instr Instrument Panel Lights, Fog lamps
RELAY RR DEF Rear Window Defogger
HDLP Headlamps, Daytimr Running Lamps (Circuit Breaker)

Engine Compartment Fuse Block

The engine compartment fuse block is located on the driver’s side of the vehicle, near the battery.

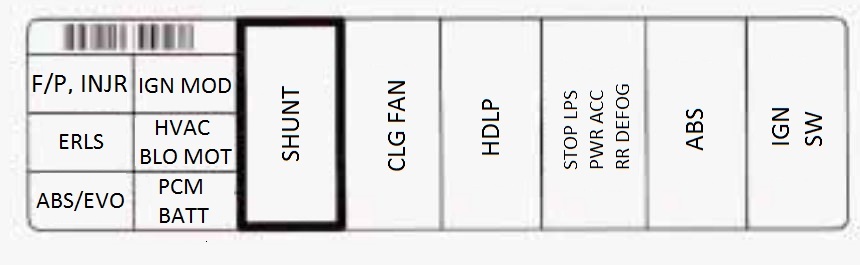

Pontiac Grand Am - fuse box - engine compartment
Pontiac Grand Am – fuse box – engine compartment
Fuses Usage
F/P, INJR Fuel Pump, Fuel Injecto
ERLS Back-up Lamps, Canister Purge Valve, EGR, Automatic Transmission, Brake Transmission Shift Interlock, Anti-Lock Brakes, Variable Effort Steering, Air  Conditioning Compressor, Park Lock Solenoid
ABSEVO Anti-lock Brake Solenoids, Variable Effort Steering
IGN MOD Ignition System
HVAC BLO MOT Heater/Air Conditioner-High Blower, Generator-Voltage Sense
PCM BATT Powertrain Computer
CLG FAN Engine Cooling Fan
HDLP Lighting Circuits
STOP LPS Power Accessories
PWR ACC RR DEFG Stop Lamp Circuits, Rear Window Defogger
ABS Anti-Lock Brakes, Variable Effort Steering
IGN SW Ignition Switch Circuit

WARNING: Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
